Semi-rigid cable sib dhos
Semi-Rigid Cib Cable Sib Koom Tes yog cov khoom lag luam siab siv nyob rau hauv xov tooj cua Lub teeb tsa kev ua ntu zus rau cable kom muaj cov duab ruaj ruaj. Thaum ntsia tau, nws tsis tshua hloov lossis deform, kom ntseeg tau qhov kev ntseeg tau thiab kev sib txuas ntawm kev sib txuas. Yog li ntawd, nws yog qhov tsim nyog rau cov tshuab hluav taws xob nyuaj nrog cov kev xav tau siab.
Khoom Taw Qhia

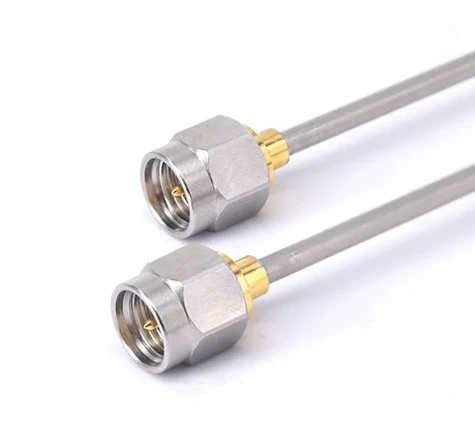

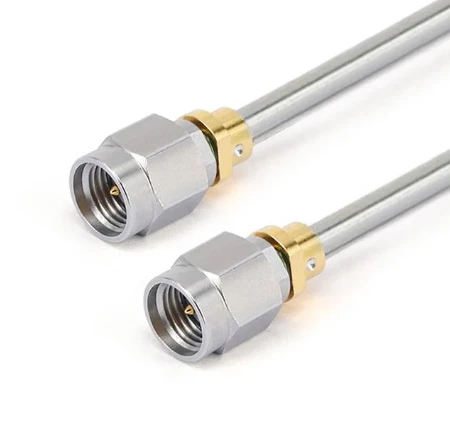

Cov khoom los hauv ntau hom qauv. Nqa cov fr710s & fr710 \/ gut - 085 086 "cov qauv sib txuas yog qhov sib txawv.
Qhov chaw sib cuag yog ua los ntawm cov kub-plated brass lossis kub-plated beryllium tooj liab. Rau qhov kev sib cuag sab nraud, koj tuaj yeem xaiv los ntawm cov kub-plated brass, cov kub ua rau cov hlau loj, uas muaj hluav taws xob zoo thiab corrosion tsis kam. Lub insulating nruab nrab yog xaiv los ntawm PEI lossis PTFE. Tus Thawj Saib Xyuas Central ntawm cov cable yog nyiaj-pla plhaw tooj liab-clad steel, thiab txheej insulating txheej yog khoom ptfe. Lub sheath tuaj yeem ua tsis tau cov khoom siv lossis FEP, uas ua kom pom kev ntsuas teeb liab kev ua haujlwm
Daim Ntawv Thov Khoom
Vim lawv cov kev ua tau zoo, semi-rigid cablies ua si lub luag haujlwm tseem ceeb hauv ntau qhov kev xav tau rau kev sib kis nruj. Lawv tau dav siv hauv ntau yam kev lag luam xws li kev sib txuas lus, khoom siv hluav taws xob, thiab aerospace.
Cov cuab yeej ua rog hauv hluav taws xob xav tau kev lag luam hauv kev siv hluav taws xob muaj kev cuam tshuam nrog hluav taws xob ib puag ncig. Qhov kev tiv thaiv kev tiv thaiv zoo thiab kev ruaj ntseg hluav taws xob ntawm semi-rigid cable ua rau lawv xaiv rau sab hauv cov khoom sib txuas hauv cov khoom siv ntaus rog hauv hluav taws xob.
Nyob rau hauv cov txheej txheem complex ntawm spacecraft, semi-rigid cablies yog siv los txuas cov twj thiab cov khoom siv ntau yam.
Cov Lus Tseem Ceeb
1. Rau kev cai ntev kev sib tw Cable, thov tsis txhob hnov qab tawm ntawm koj cov ntaub ntawv ntev ntawm nplooj ntawv txheeb npe;
2. Tag nrho cov kev sib koom ua ke cablies tuaj yeem muab nrog theem-sib phim ua ke lossis pab pawg; Yog tias koj xav tau cov kab ke yuav raug sib phim, thov xa email rau peb: sales@flexirf.com

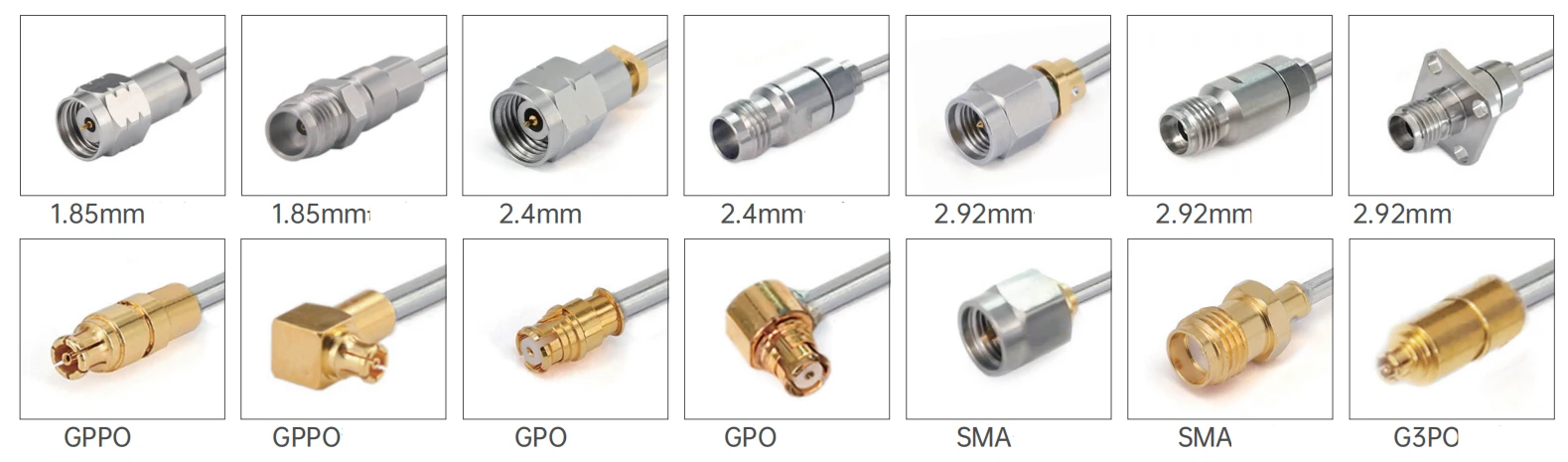

Cov Khoom Siv Khoom Tshwj Xeeb Cov ntaub ntawv
|
Kev teeb tsa |
|
|
Connector 1 Hom |
1.85 hli \/ 2.4mm \/ 2.92mm \/ SMA \/ G3PO \/ GPPO |
|
Connector 1 impedance |
50 OHMS |
|
Connector 1 Polarity |
Lub hom phiaj |
|
Connector 2 hom |
1.85 hli \/ 2.4mm \/ 2.92mm \/ sma \/ g3po \/ gppo \/ |
|
Connector 2 impedance |
50 OHMS |
|
Connector 2 Polarity |
Lub hom phiaj |
|
Txuas Mount Txujc |
Tsis muaj |
|
Connector Lub Cev Qauv |
Ncaj thiab txoj kev sab xis |
|
Cov Ntaub Ntawv Cov Ntaub Ntawv |
|
|
Chaw Hu Nkauj |
Brass kub plated, beyllium tooj liab kub plated |
|
Sib cuag sab nraud |
Brass Kub Plated, BerylLium Tooj Liab Kub Plated, Stainless Hlau Passivated |
|
Lub cev |
Brass Kub Plated, BerylLium Tooj Liab Kub, Stainless Hlau Passivated |
|
Dielectric |
PTI \/ PTFE |
|
Cov ntaub ntawv ib puag ncig |
|
|
Qhov ntsuas kub ntau |
{{0 {}} degree rau +125 degree |
|
2011\/65 \/ EU (ROHS) |
Ua raws li |
|
CUB KAB SPILITICS |
|
|
Center Codor |
Nyiaj plating Copperweld |
|
Dielectric |
Khoom PTFE |
|
Lub tsho loj |
Tsis muaj lossis fep |
|
Capacitance (PF \/ M) |
95.1 |
|
Velocity of Propagation (%) |
70 |
|
Tiv Thaiv Kev Ua Haujlwm Zoo |
<-100dB @ 1GHz |
|
Lub Zog Tuav Tes |
1 {0 watt @ 18GHz ntawm Hiav Txwv Qaum, VWSWR1.0 |
Khoom Yam
| FR710S & FR710 \/ Gut -085 086 "series semi-rigid cable sib dhos | ||||
 |
Tus qauv cov kab kab uas hla (hli) |
|||
|
1 |
Sab hauv tus neeg kos npe |
Silver-Plated Copper-Clad Hlau |
0.51±0.0127 |
|
|
2 |
Tshuaj insulator |
Khoom PTFE |
1.688±0.0254 |
|
|
3 |
Sab Nraud Tus Thawj Coj |
Tinned tooj \/ tooj |
2.2±0.05 |
|
| Attenuation, Fais Fab (Kev Ntsuas Yam Mob ntawm 20 Qib Hiav Txwv Qaum) | |||||
|
Zaus (GHz) |
0.5 |
1 |
5 |
10 |
20 |
|
Attenuation (DB \/ M) |
0.446 |
0.640 |
1.506 |
2.215 |
3.29 |
|
Hwjchim (W) |
190.3 |
133.2 |
57.2 |
39.3 |
26.7 |
|
Cov Qauv Qauv thiab Cov Lus Qhia |
|||||
 |
|||||
|
Daim duab |
Khaub cij |
Connendor 1 |
Connendor 2 |
Freqency |
Rov qab poob \/ vswr |
|
|
FR710S-SMMSMM-XXX |
Sma txiv neej |
Sma txiv neej |
DC -26. 5GHz |
1.30 |
|
|

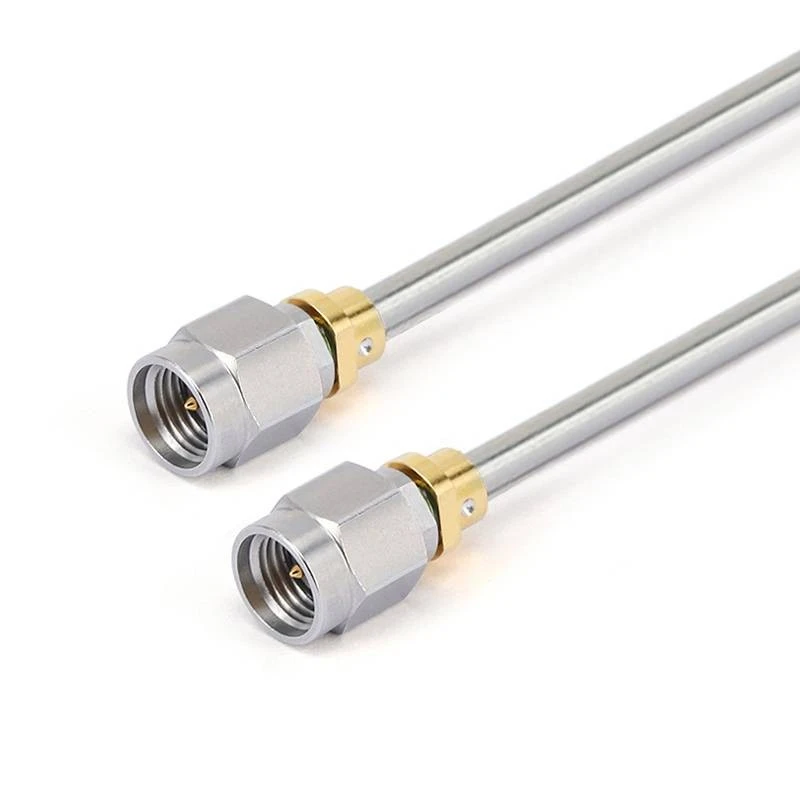

Fr710s -292 m292m-xxx |
2.92mm txiv neej |
2.92mm txiv neej |
DC -40 ghz |
1.35 |
|
|

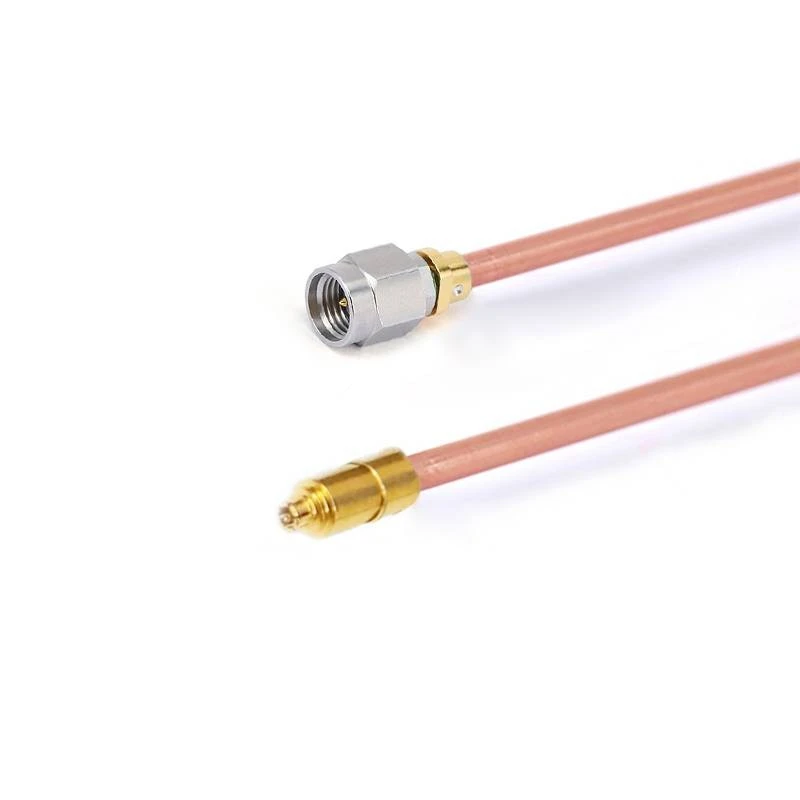

Fr 710-292 mg3pf-xxx |
2.92mm txiv neej |
G3PO (SMPS) Poj Niam |
DC -40 ghz |
14Db |
|
|

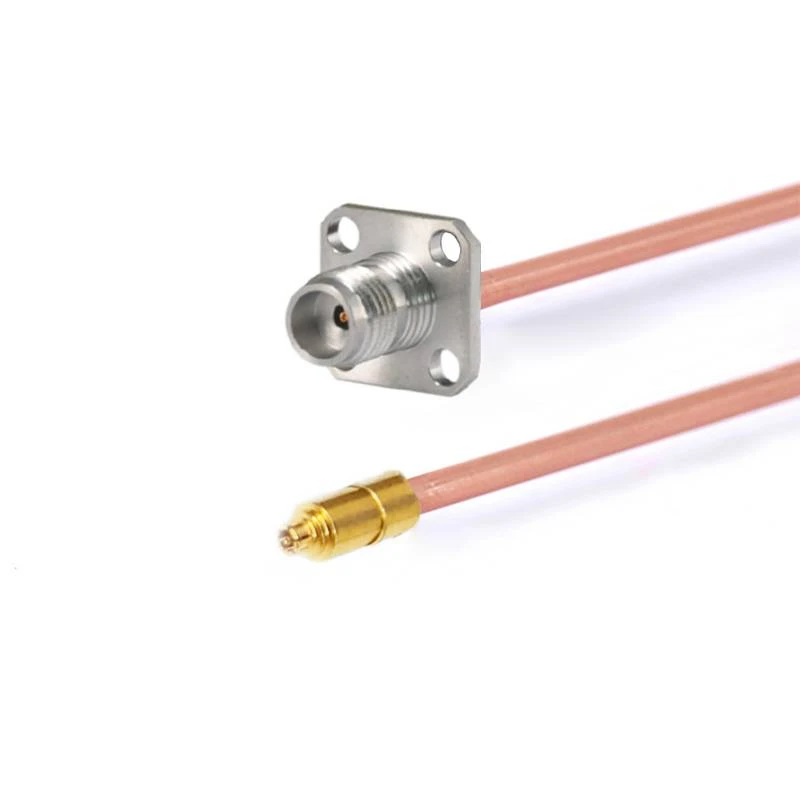

Fr 710-292 ffg3pf-xxx |
2.92mm txiv neej nrog 4 lub qhov flange |
G3PO (SMPS) Poj Niam |
DC -40 ghz |
14Db |
|
|
Fr 710-185 mg3pf-xxx |
185 hli txiv neej |
G3PO (SMPS) Poj Niam |
DC -67 ghz |
10Db |
|
|

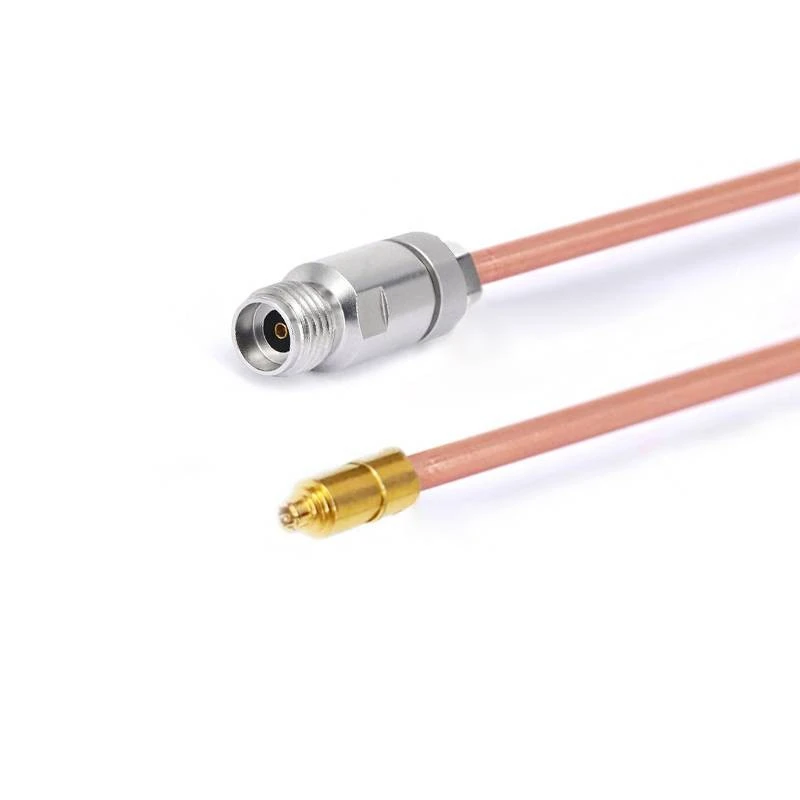

Fr 710-185 fg3pf-xxx |
185mm Poj Niam |
G3PO (SMPS) Poj Niam |
DC -67 ghz |
10Db |
|
|
Fr 710-185 ffg3pf-xxx |
185mm poj niam nrog 4 lub qhov flange |
G3PO (SMPS) Poj Niam |
DC -67 ghz |
10Db |
|
|

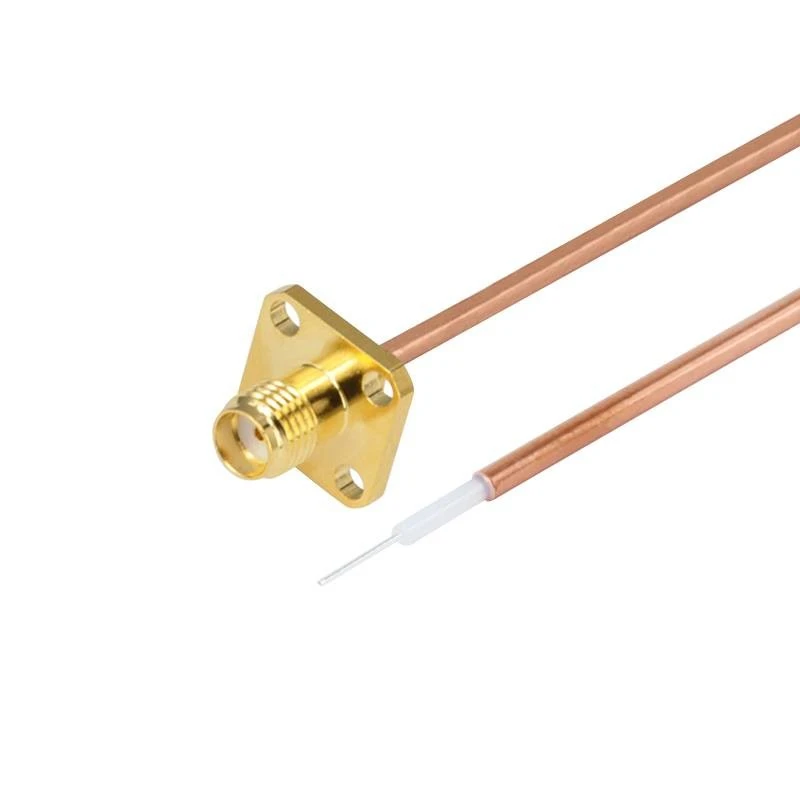

Fr 710- smff 000- xxx |
Sma poj niam nrog 4 lub qhov flange |
Qhib |
DC -18 ghz |
1.30 |
|
|
Fr 710- smff 000- xxx |
Sma poj niam |
Qhib |
DC -18 ghz |
1.30 |
|
|
Fr 710-292 f 000- xxx |
2.92mm Poj Niam |
Qhib |
DC -40 ghz |
1.35 |
|
|

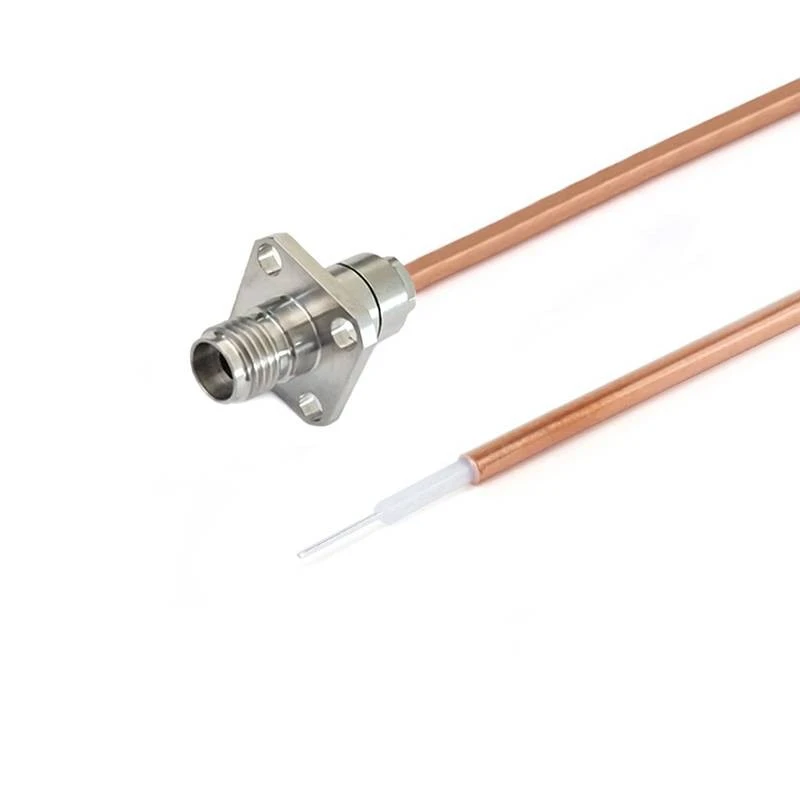

Fr 710-292 f 000- xxx |
2.92mm poj niam nrog 4 lub qhov flange |
Qhib |
DC -40 ghz |
1.35 |
|
|
Fr 710-24 f 000- xxx |
2.4mm Poj Niam |
Qhib |
DC -50 ghz |
1.44 |
|
|
Fr 710-24 ff 000- xxx |
2.4mm Poj Niam |
Qhib |
DC -50 ghz |
1.44 |
|
|
Fr 710-185 f 000- xxx |
1.85mm Poj Niam |
Qhib |
DC -67 ghz |
1.50 |
|
|
Fr 710-185 ff 000- xxx |
1.85mm poj niam nrog 4 lub qhov flange |
Qhib |
DC -67 ghz |
1.50 |
Cim npe nrov: semi-rigid cable sib sau ua ke, USA semi-semi-rigid cable ua kom sib dhos, cov chaw muag khoom, Hoobkas
