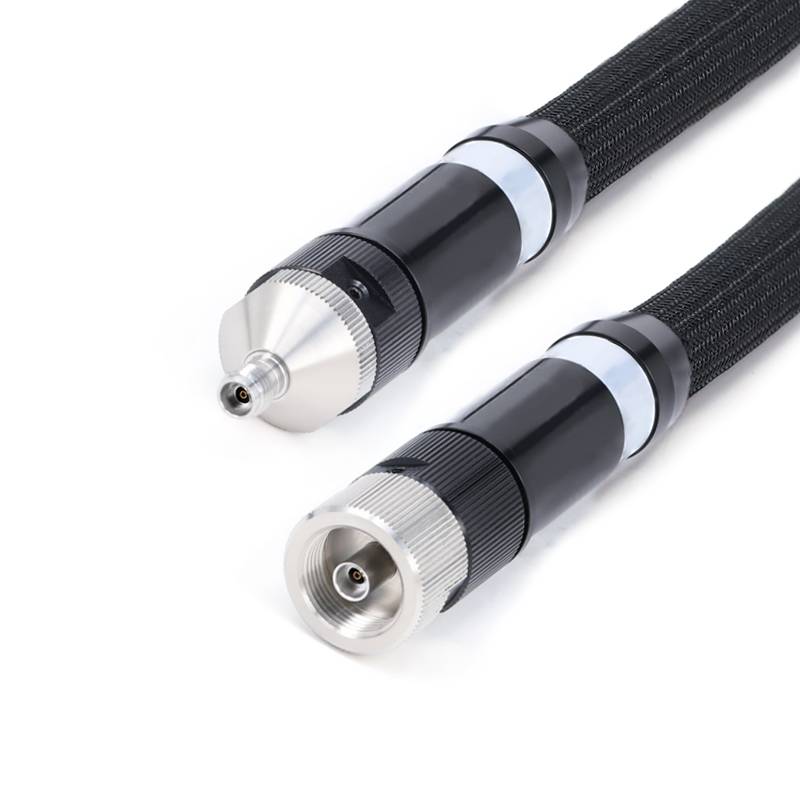

VNA xeem cable
Flexirf VNA sim Cable Rooj Sib Tham Cable Series tau tsim los muab cov qhua tuaj noj mov nrog cov neeg siv khoom lag luam Vector thiab meej) .
Hauv kev sim cov xwm txheej ntawm vector network analyzers (vnas), qhov tsis muaj zog ntawm precision interfaces tau ntev li kev lag luam sib tw {}}
Hauj lwm lawm
Khoom Taw Qhia
Flexirf VNA sim Cable Rooj Sib Tham Cable Series tau tsim los muab cov qhua tuaj noj mov nrog cov neeg siv khoom lag luam Vector thiab meej) .
Hauv kev sim cov xwm txheej ntawm vector network analyzers (vnas), qhov kev ntxhov siab ntawm cov kev sib txuam nrog kev lag luam sab hauv Kev ua tau hluav taws xob vim kev ntxhov siab. Qhov no ncaj qha cuam tshuam cuam tshuam nrog kev soj ntsuam ncaj qha thiab txawm tias cov khoom siv tsis ua rau {}}

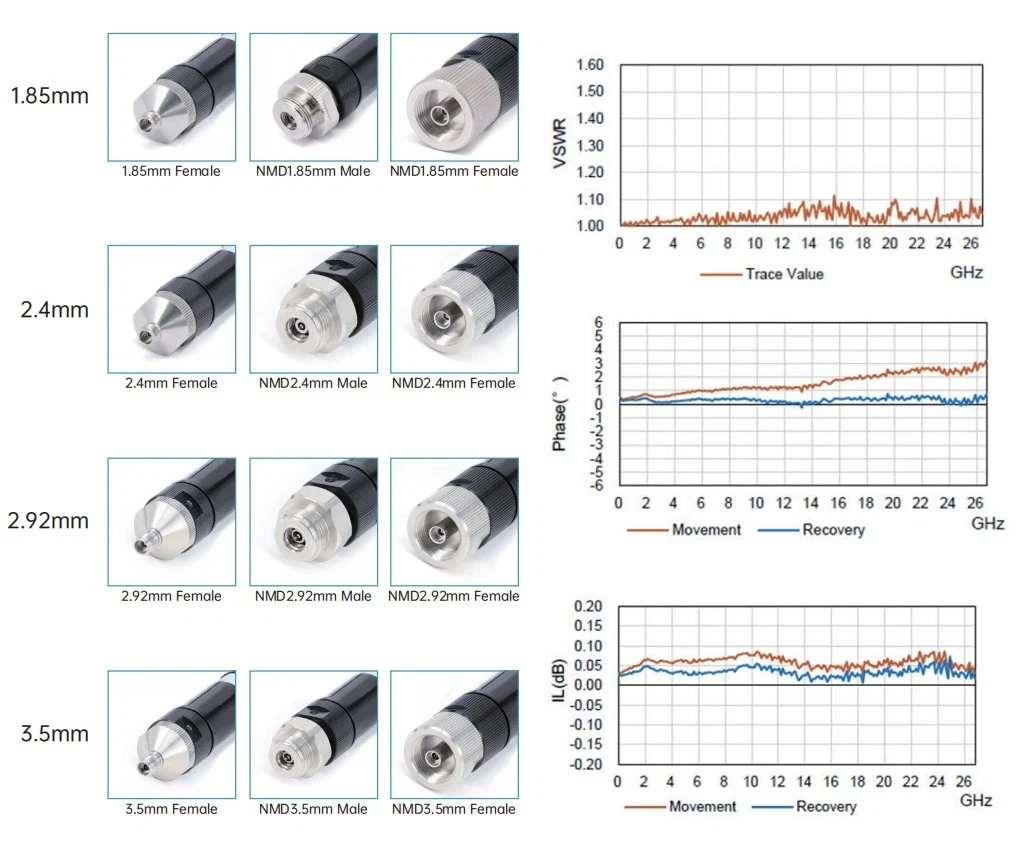

Khoom Qauv Qauv Nta
Raws li kev faib tawm ntau zaus, muaj:
26 .}}}}}}}}}}}}}} 5Hhz 3.5mm interface Cable Los ua ke, 67GHz 1.85mm NMD Cable Sib Koom Tes.
Qhov kev siv hluav taws xob nmd cable cov kev sib koom ua ke rau cov kev cuam tshuam uas muaj kev puas tsuaj rau kev puas tsuaj rau kev puas tsuaj rau kev cuam tshuam rau kev puas tsuaj rau kev cuam tshuam rau kev cuam tshuam rau kev cuam tshuam rau kev puas tsuaj rau cov precision interfaces.

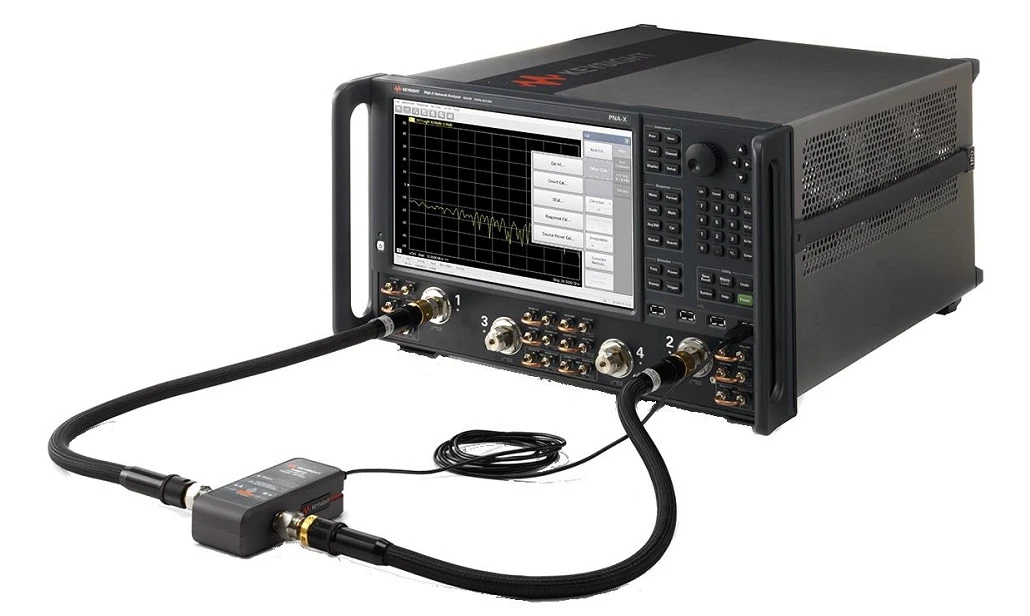

Daim Ntawv Thov Khoom
VNA sim Cable sib txoos yog qhov ua tau zoo amplities-thiab-theem-ruaj khov kev ntsuas ntawm lub ntsuas hluav taws xob, cov kab ntau lawm, ntsuas cov tshuab, thiab lwm yam {.
Cov Lus Tseem Ceeb
1.} rau kev cai ntev kev sib sau ua ke, thov tsis txhob hnov qab tawm ntawm koj cov ntaub ntawv ntev ntawm nplooj ntawv txheeb xyuas;
2.} txhua lub rooj sib txoos cabllies tuaj yeem muab nrog theem-sib phim ua ke lossis pab pawg; Yog tias koj xav tau cov kab ke yuav raug sib phim, thov xa email rau peb: {sales@flexirf.com
Cov Khoom Siv Khoom Tshwj Xeeb Cov ntaub ntawv
|
Kev teeb tsa |
|
|
Connector 1 Hom |
NMD3.5mm / NMD2.92mm / NMD2.4MM / NMD1.85mm |
|
Connector 1 impedance |
50 OHMS |
|
Connector 1 Polarity |
Lub hom phiaj |
|
Connector 2 hom |
NMD3.5mm / NMD2.92mm / NMD2.4MM / NMD1.85mm |
|
Connector 2 impedance |
50 OHMS |
|
Connector 2 Polarity |
Lub hom phiaj |
|
Txuas Mount Txujc |
Tsis muaj |
|
Connector Lub Cev Qauv |
Ncaj |
|
Cov Ntaub Ntawv Cov Ntaub Ntawv |
|
|
Chaw Hu Nkauj |
Brass kub plated, beyllium tooj liab kub plated |
|
Sib cuag sab nraud |
Stainless Hlau Passivated |
|
Lub cev |
Stainless Hlau Passivated |
|
Dielectric |
Ptfe |
|
Cov ntaub ntawv ib puag ncig |
|
|
Qhov ntsuas kub ntau |
{{0 {}}℃rau +165 degree |
|
2011/65 / EU (ROHS) |
Ua raws li |
Khoom Yam
|
VNA xeem cable |
|||||
|
|
|||||
| Cov Qauv Qauv thiab Cov Lus Qhia | |||||
|
Daim duab |
Khaub cij |
Connendor 1 |
Connendor 2 |
Freqency |
Rov qab poob / vswr |
 |
VNA -35 f35f -630 |
3.5mm NMD Poj Niam |
3.5mm Poj Niam |
DC -26.5 ghz |
1.30 |
 |
VNA -35 m35f -630 |
3.5mm NMD Poj Niam |
3.5mm nmd txiv neej |
DC -26.5 ghz |
1.30 |
 |
VNA -292 f292f -630 |
2.92mm NMD Poj Niam |
2.92mm Poj Niam |
DC -40 ghz |
1.30 |
 |

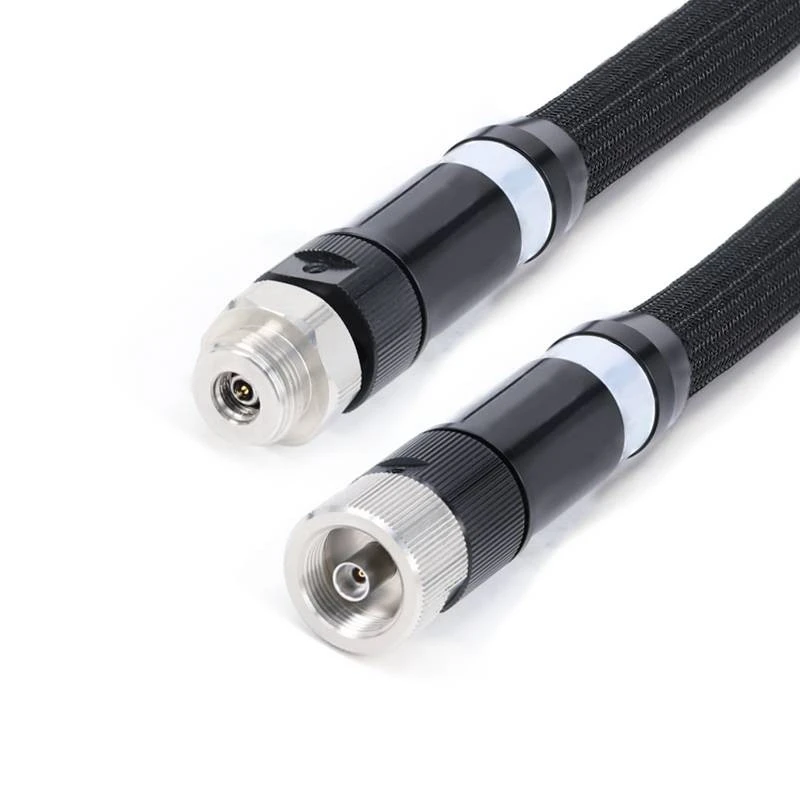

VNA -292 m292f -630 |
2.92mm NMD Poj Niam |
2.92mm NMD Poj Niam |
DC -40 ghz |
1.30 |
 |
VNA -24 f24f -630 |
2.4mm nmd poj niam |
2.4mm Poj Niam |
DC -40 ghz |
1.35 |
 |
Vna -24 m24f -630 |
2.4mm nmd poj niam |
2.4mm nmd txiv neej |
DC -50 ghz |
1.35 |
 |

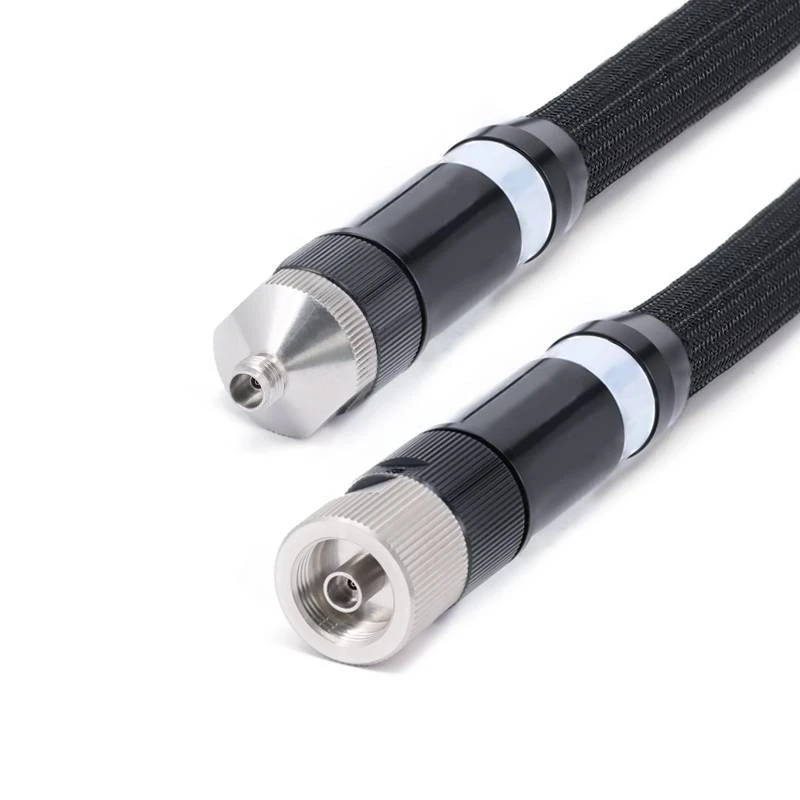

VNA -185 f185f -630 |
1.85mm NMD Poj Niam |
1.85mm Poj Niam |
DC -67 ghz |
1.50 |
 |

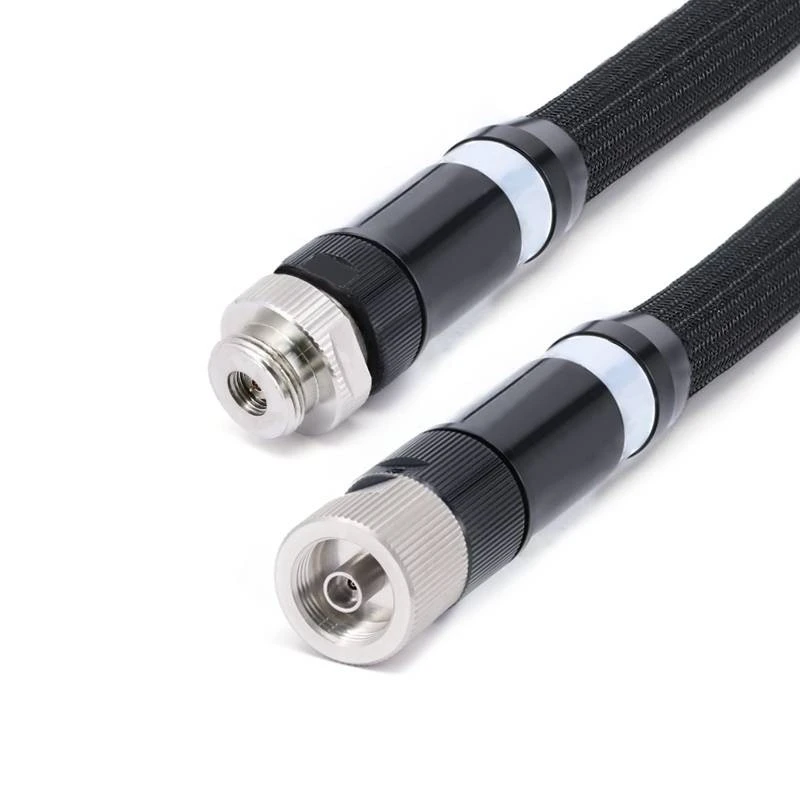

VNA -185 f185m -630 |
1.85mm NMD Poj Niam |
1.85mm nmd txiv neej |
DC -67 ghz |
1.50 |
