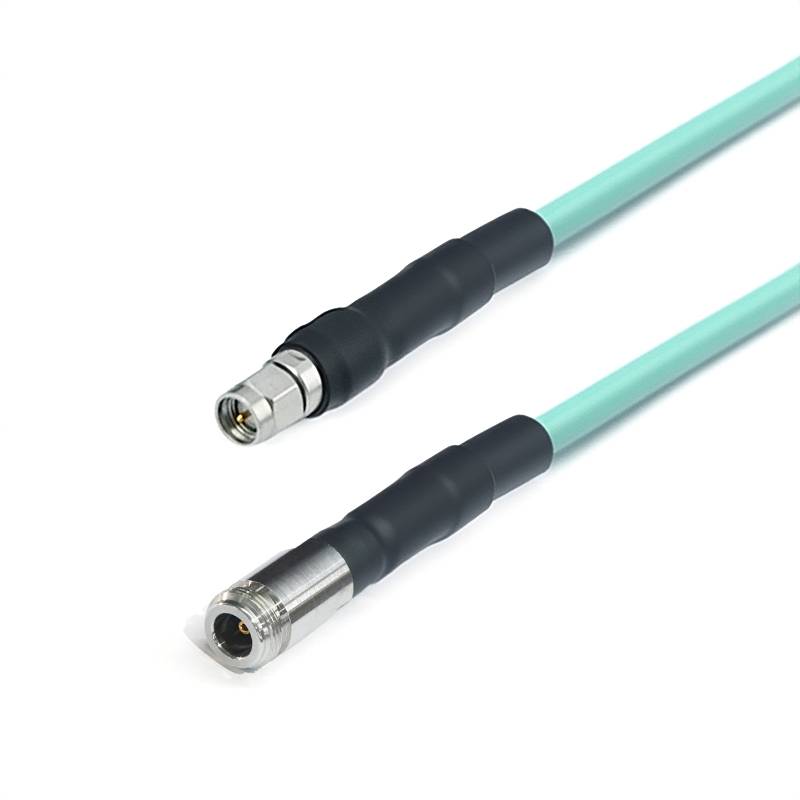

QUB poob theem ruaj khov Series
Niaj hnub no txoj kev txiav no - cov liaj teb ntug xws li kev sib txuas lus, thiab kev ntsuas hluav taws xob tau dhau los ua cov phiaj xwm kos npe thiab cov kev xav tau yog qhov ua tau zoo zuj zus ntxiv.
Hauj lwm lawm
Khoom Taw Qhia
Niaj hnub no txiav xws li kev sib txuas lus, thiab kev ntsuas hluav taws xob tau ua rau muaj kev ua haujlwm tseem ceeb, thiab cov khoom lag luam tsis muaj peev xwm dhau los ua cov phiaj xwm tseem ceeb heev ua tiav tau meej thiab muaj peev xwm kis tau tus kab mob signal .
Khoom Qauv Qauv Nta
Zoo heev LOS - LIM FEEM:
Lawv nthuav tawm cov kev ua tau zoo tshaj plaws - poob kev ua tau zoo nyob rau hauv cov kev ua piv txwv (}}}
Superb theem stability:
Lawv muaj cov yam ntxwv yooj yim heev theem li .}}}}}}} }z4, nws cov kev ruaj khov tseem ceeb tuaj yeem ncav cuag 10ghz / 3 degree; Thaum muaj zaus yog 18GHz, nws tuaj yeem ncav cuag txoj kev sib txuas lus thiab kev sib txuas lus ruaj khov yog qhov tseem ceeb los ua haujlwm ruaj khov rau cov haujlwm ruaj khov thiab qib siab - kev ua tau zoo ntawm lub Tshuab.
Dav zaus kev tiv thaiv:
Cov khoom muaj cov kev pab them ntau ntau, ncua kev ua haujlwm ncaj qha rau kev sib tw sib txawv tuaj yeem hloov pauv cov kev thov sib txawv ntawm kev ua haujlwm sib txawv.
Daim Ntawv Thov Khoom
Hauv microwave chamber kuaj, lawv txuas cov khoom siv tsis muaj zog ntawm cov khoom siv tsis muaj zog thiab kev txhawb nqa cov khoom siv hluav taws xob tsis muaj zog thiab cov khoom siv hluav taws xob thiab cov khoom lag luam hluav taws xob thiab cov khoom lag luam zoo Soj ntsuam .
Cov Lus Tseem Ceeb
1.} rau kev cai ntev kev sib sau ua ke, thov tsis txhob hnov qab tawm ntawm koj cov ntaub ntawv ntev ntawm nplooj ntawv txheeb xyuas;
2.} txhua lub rooj sib txoos cabllies tuaj yeem muab nrog theem-sib phim ua ke lossis pab pawg; Yog tias koj xav tau cov kab ke yuav raug sib phim, thov xa email rau peb: {sales@flexirf.com
Cov Khoom Siv Khoom Tshwj Xeeb Cov ntaub ntawv
|

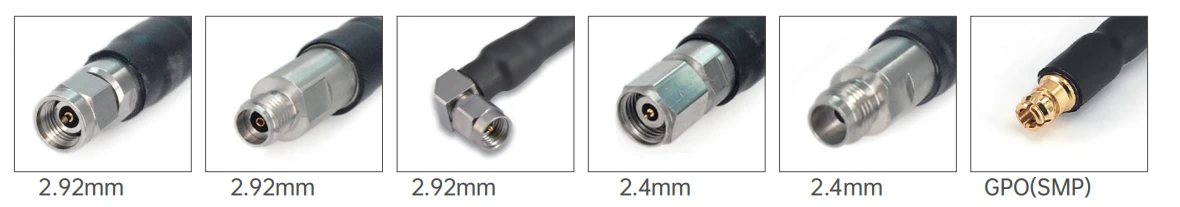

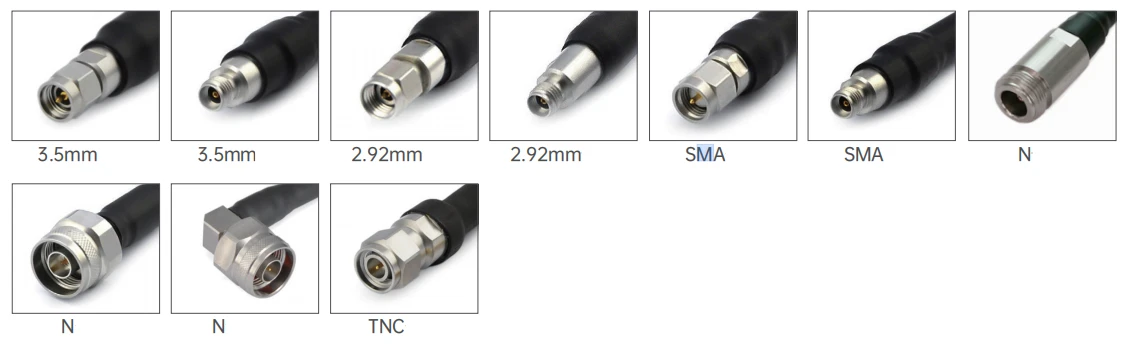

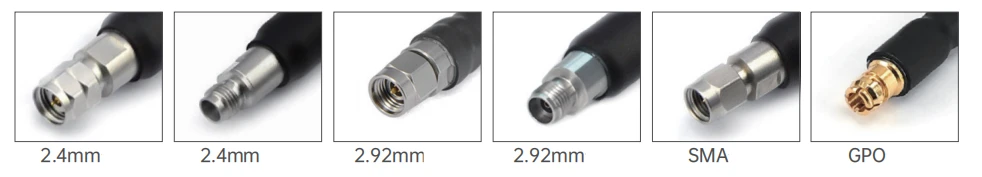

Kev teeb tsa |
|
|
Connector 1 Hom |
1.85 hli / 2.4mm / 2.92mm / SMA / G3PO / GPPO / N / TNC |
|
Connector 1 impedance |
50 OHMS |
|
Connector 1 Polarity |
Lub hom phiaj |
|
Connector 2 hom |
1.85 hli / 2.4mm / 2.92mm / SMA / G3PO / GPPO / N / TNC |
|
Connector 2 impedance |
50 OHMS |
|
Connector 2 Polarity |
Lub hom phiaj |
|
Txuas Mount Txujc |
Tsis muaj |
|
Connector Lub Cev Qauv |
Ncaj thiab txoj kev sab xis |
|
Cov Ntaub Ntawv Cov Ntaub Ntawv |
|
|
Chaw Hu Nkauj |
Brass kub plated, beyllium tooj liab kub plated |
|
Sib cuag sab nraud |
Brass Kub Plated, BerylLium Tooj Liab Kub Plated, Stainless Hlau Passivated |
|
Lub cev |
Brass Kub Plated, BerylLium Tooj Liab Kub, Stainless Hlau Passivated |
|
Dielectric |
PTI / PTFE |
|
Cov ntaub ntawv ib puag ncig |
|
|
Qhov ntsuas kub ntau |
{{0 {}}℃rau +165 degree |
|
2011/65 / EU (ROHS) |
Ua raws li |
Khoom Yam
| Fru1 / GT147A Kev poob qis ruaj theem cable sib dhos (40,4z) | ||||
 |
Tus qauv cov kab kab uas hla (hli) |
|||
|
1 |
Sab hauv tus neeg kos npe |
Silver-Plated Copper-Clad Hlau |
0.91±0.05 |
|
|
2 |
Tshuaj insulator |
Khoom PTFE |
2.69±0.05 |
|
|
3 |
Sab hauv Kev Tiv Thaiv |
Silver-Plated Tooj Liab Band |
2.86±0.05 |
|
|
4 |
Tiv Thaiv Shielding |
Nyiaj-Plated Tooj Liab Hlau Braiding |
3.28±0.05 |
|
|
5 |
lub tsho loj |
Tus FEP |
3.73±0.13 |
|
| Attenuation, Fais Fab (Kev Ntsuas Yam Mob ntawm 20 Qib Hiav Txwv Qaum) | |||||
|
Zaus (GHz) |
1 |
10 |
18 |
26.5 |
40 |
|
Attenuation (DB / M) |
0.39 |
1.31 |
1.81 |
2.23 |
2.85 |
|
Hwjchim (W) |
380 |
120 |
90 |
75 |
65 |
| Hluav Taws Xob Thiab Cov Neeg Kho Tshuab | |||||||
|
Hov ntau (GHz) |
Kev yuam (Ω) |
Kis Tus Nqi |
Tshuaj |
Daim thaiv |
Kev khiav hauj lwm kub qho deb |
Tsawg kawg yog khoov hluav taws xob vojvoog |
Txawj kho ub no kev ruaj khov ntawm theem |
|
40 |
50 |
77% |
86 pf / m |
>100db |
{{0 {}}℃~ +165 degree |
6.35mm |
10GHz / 3 Degree 18GHz / 5 degree |
|
Cov Qauv Qauv thiab Cov Lus Qhia
|
|||||||
|
Daim duab |
Khaub cij |
Connendor 1 |
Connendor 2 |
Freqency |
Rov qab poob / vswr |
|
|

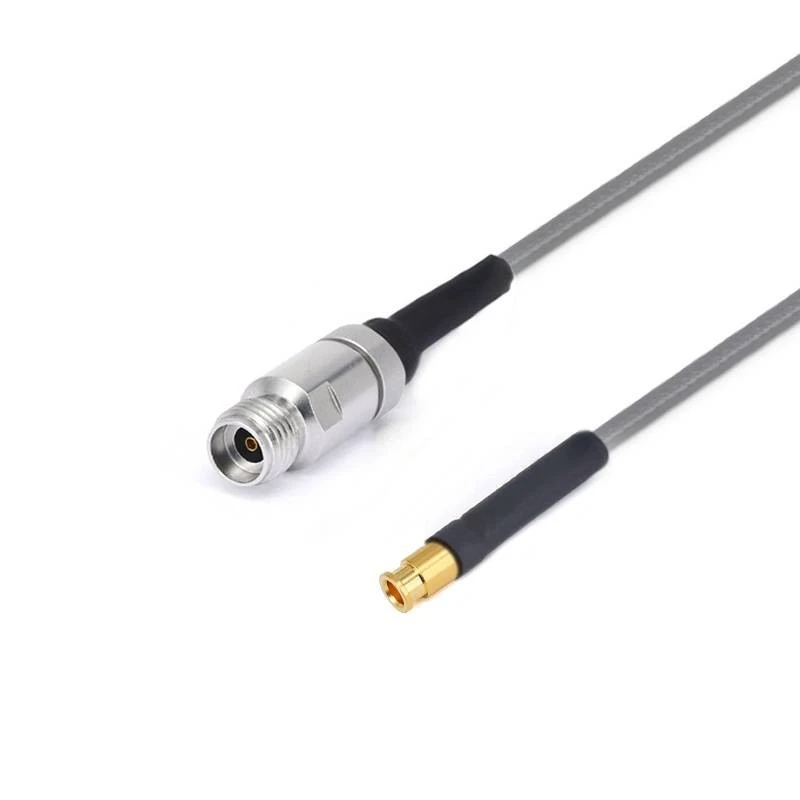

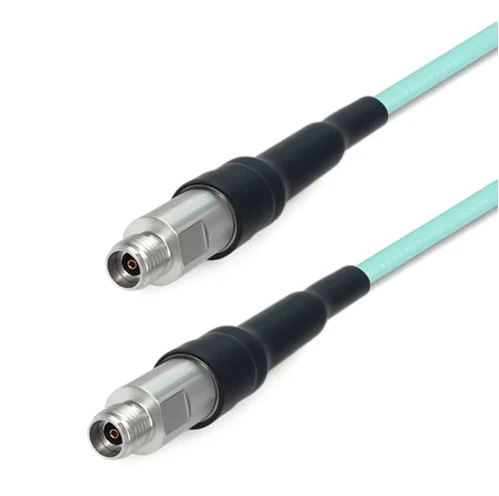

Fru 1-292 f292f-xxx |
2.92mm Poj Niam |
2.92mm Poj Niam |
DC -40 ghz |
1.44 |
|
|
Fru 1-292 m292m-xxx |
2.92mm txiv neej |
2.92mm txiv neej |
DC -40 ghz |
1.44 |
|
|

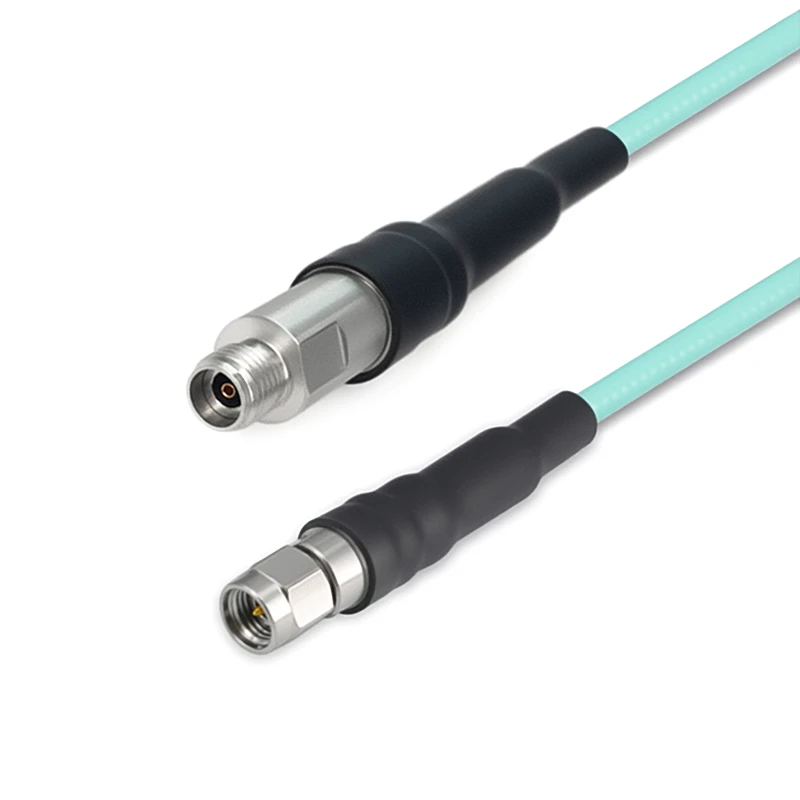

Fru 1-292 m292f-xxx |
2.92mm txiv neej |
2.92mm Poj Niam |
DC -40 ghz |
1.44 |
| Fru2 / GT3506 Qis Qis Poob ruaj khov theem Cable Sib Koom Tes (65GHz) | ||||
|
|
Tus qauv cov kab kab uas hla (hli) |
|||
|
1 |
Sab hauv tus neeg kos npe |
Silver-Plated Copper-Clad Hlau |
0.51±0.05 |
|
|
2 |
Tshuaj insulator |
Khoom PTFE |
1.38±0.05 |
|
|
3 |
Sab hauv Kev Tiv Thaiv |
Silver-Plated Tooj Liab Band |
1.58±0.05 |
|
|
4 |
Tiv Thaiv Shielding |
Nyiaj-Plated Tooj Liab Hlau Braiding |
1.90±0.05 |
|
|
5 |
lub tsho loj |
Tus FEP |
2.20±0.13 |
|
| Attenuation, Fais Fab (Kev Ntsuas Yam Mob ntawm 20 Qib Hiav Txwv Qaum) | ||||||||||
|
Zaus (GHz) |
1 |
3 |
6 |
10 |
12 |
16 |
18 |
26.5 |
40 |
67 |
|
Attenuation (DB / M) |
63.7 |
111.9 |
160.4 |
209.87 |
231.1 |
269.5 |
287.1 |
354 |
444 |
593.2 |
|
Hwjchim (W) |
55 |
32 |
22 |
17 |
15 |
13 |
12 |
10 |
8 |
6 |
| Hluav Taws Xob Thiab Cov Neeg Kho Tshuab | |||||||
|
Zaus (GHz |
Impedance (ω) |
Kis Tus Nqi |
Tshuaj |
Daim thaiv |
Kev khiav hauj lwm kub qho deb |
Tsawg kawg yog khoov hluav taws xob vojvoog |
Dielectric wallag nrho voltage |
|
67] |
50Ω |
82% |
94pf / m |
>90DB |
{{0 {}}℃~ +125 degree |
11Mm |
800V @ DC |
|

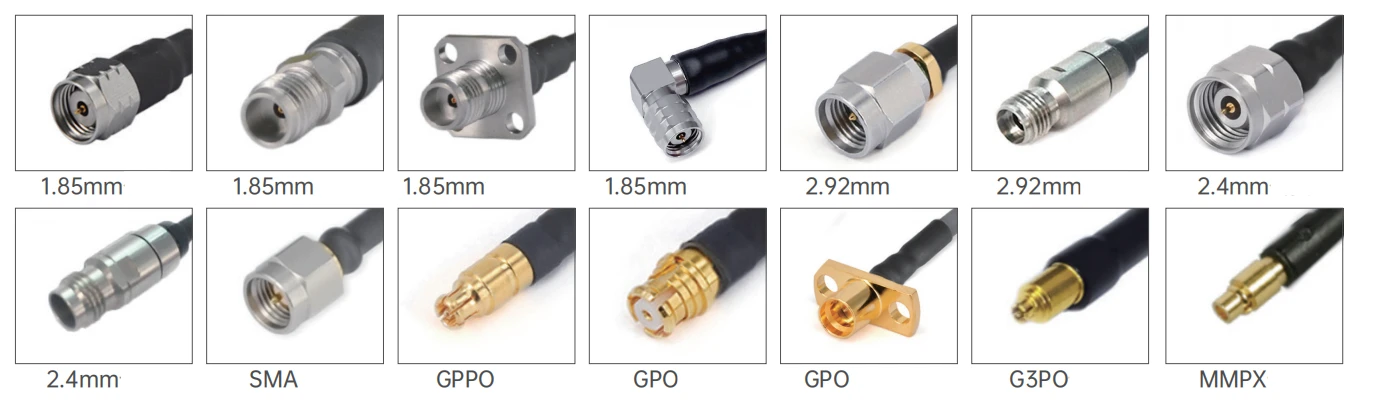

Cov Qauv Qauv thiab Cov Lus Qhia
|
|||||||
|
Daim duab |
Khaub cij |
Connendor 1 |
Connendor 2 |
Freqency |
Rov qab poob / vswr |
|
|
Fru 2- smmsmm-xxx |
Sma txiv neej |
Sma txiv neej |
DC -26.5 ghz |
1.30 |
|
|
Fru 2- smmgpf-xxx |
Sma txiv neej |
GPO (SMP) Poj Niam |
DC -26.5 ghz |
1.35 |
|
|
Fru 2- smmgpwf-xxx |
Sma txiv neej |
GPO (SMP) Poj Niam Nrog Txoj Cai |
DC -26.5 ghz |
12DB |
|
|
Fru 2- smmgpp-xxx |
Sma txiv neej |
GPPO (Mini-SMP) Poj niam |
DC -26.5 ghz |
13DB |
|
|
Fru 2- smmgppwf-xxx |
Sma txiv neej |
GPPO (Mini-SMP) Poj niam nrog txoj cai |
DC -26.5 ghz |
12DB |
|
|
Fru 2- smffgpf-xxx |
Sma poj niam nrog 4 lub qhov flange |
GPO (SMP) Poj Niam |
DC -18 ghz |
1.30 |
|
|
Fru 2- smffgpp-xxx |
Sma poj niam nrog 4 lub qhov flange |
GPPO (Mini-SMP) Poj niam |
DC -18 ghz |
16DB |
|
|
Fru 2-292 m292m-xxx |
2.92mm txiv neej |
2.92mm txiv neej |
DC -40 ghz |
1.35 |
|
|
Fru 2-292 mgpf-xxx |
2.92mm txiv neej |
GPO (SMP) Poj Niam |
DC -40 ghz |
14Db |
|
|

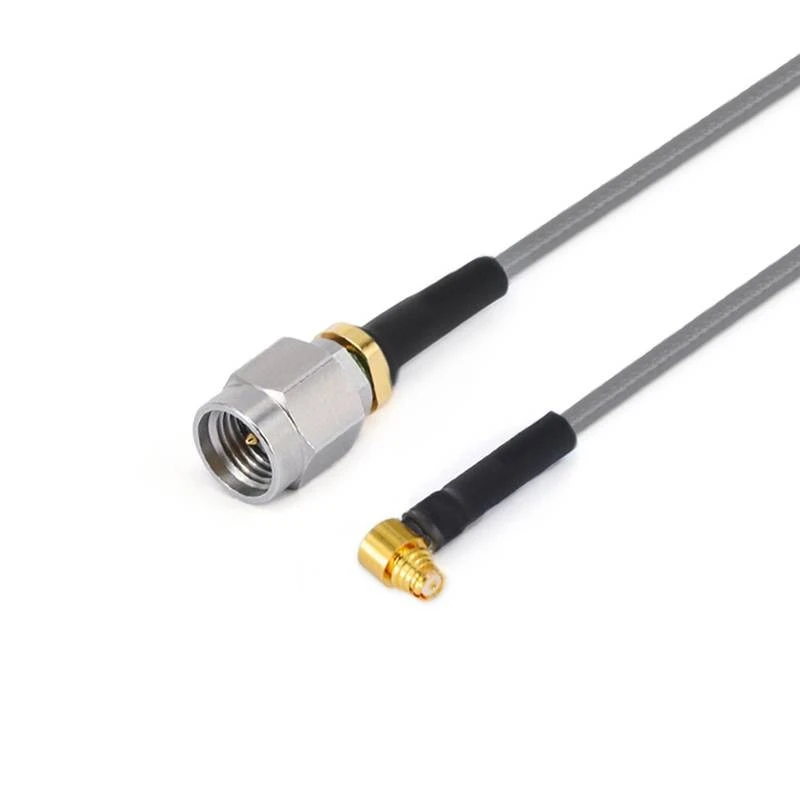

Fru 2-292 mgpwf-xxx |
2.92mm txiv neej |
GPO (SMP) Poj Niam Nrog Txoj Cai |
DC -40 ghz |
12DB |
|
|
Fru 2-292 mmmpxm-xxx |
2.92mm txiv neej |
MMPX txiv neej |
DC -40 ghz |
14Db |
|
|
Fru 2-292 mmmpxf-xxx |
2.92mm txiv neej |
MMPX Poj Niam |
DC -40 ghz |
14Db |
|
|
Fru 2-292 mg3pf-xxx |
2.92mm txiv neej |
G3PO (SMPS) Poj Niam |
DC -40 ghz |
14Db |
|
|
Fru 2-292 mgppwf-xxx |
2.92mm txiv neej |
GPPO (Mini-SMP) Poj niam nrog txoj cai |
DC -40 ghz |
12DB |
|
|
Fru 2-292 m24m-xxx |
2.92mm txiv neej |
2.4 hli txiv neej |
DC -40 ghz |
1.35 |
|
|
Fru 2-292 mgppf-xxx |
2.92mm txiv neej |
GPPO (Mini-SMP) Poj niam |
DC -40 ghz |
14Db |
|
|
Fru 2-292 fg3pf-xxx |
2.92mm Poj Niam |
G3PO (SMPS) Poj Niam |
DC -40 ghz |
14Db |
|
|
Fru 2-292 ffg3pf-xxx |
2.92mm poj niam nrog 4 lub qhov flange |
G3PO (SMPS) Poj Niam |
DC -40 ghz |
14Db |
|
|
Fru 2-292 fmmpxm-xxx |
2.92mm Poj Niam |
MMPX txiv neej |
DC -40 ghz |
14Db |
|
|
Fru 2-292 ffmmpxm-xxx |
2.92mm poj niam nrog 4 lub qhov flange |
MMPX txiv neej |
DC -40 ghz |
14Db |
|
|
Fru 2-292 ffgpf-xxx |
2.92mm poj niam nrog 4 lub qhov flange |
GPO (SMP) Poj Niam |
DC -40 ghz |
14Db |
|
|
Fru 2-24 m24m-xxx |
2.4 hli txiv neej |
2.4 hli txiv neej |
DC -50 ghz |
1.44 |
|
|
Fru 2-24 mgpf-xxx |
2.4 hli txiv neej |
GPO (SMP) Poj Niam |
DC -40 ghz |
14Db |
|
|
Fru 2-24 mgpwf-xxx |
2.4 hli txiv neej |
GPO (SMP) Poj Niam Nrog Txoj Cai |
DC -40 ghz |
12DB |
|
|
Fru 2-24 mmmpxm-xxx |
2.4 hli txiv neej |
MMPX txiv neej |
DC -50 ghz |
10Db |
|
|
Fru 2-24 mmmpxm-xxx |
2.4 hli txiv neej |
MMPX txiv neej |
DC -50 ghz |
10Db |
|
|
Fru 2-24 mgppf-xxx |
2.4 hli txiv neej |
GPPO (Mini-SMP) Poj niam |
DC -50 ghz |
10Db |
|
|
Fru 2-24 mgppwf-xxx |
2.4 hli txiv neej |
GPPO (Mini-SMP) Poj niam nrog txoj cai |
DC -50 ghz |
10Db |
|
|
Fru 2-24 ffgpf-xxx |
2.4mm poj niam nrog 4 lub qhov flange |
GPO (SMP) Poj Niam |
DC -50 ghz |
10Db |
|
|
Fru 2-24 ffgpped-xxx |
2.4mm poj niam nrog 4 lub qhov flange |
GPPO (Mini-SMP) Poj niam |
DC -50 ghz |
10Db |
|
|

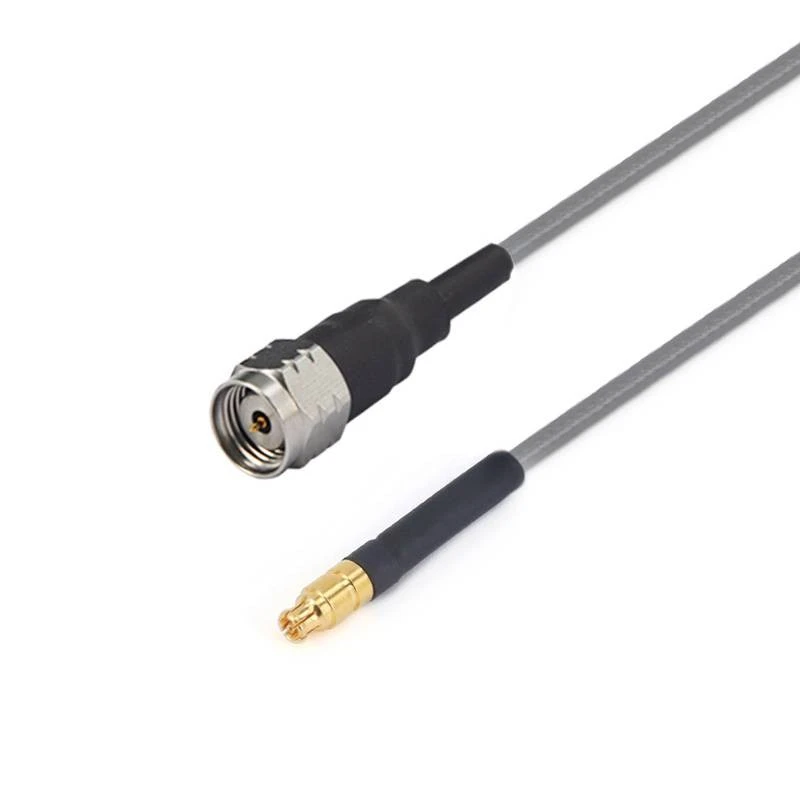

Fru 2-185 mgppf-xxx |
1.85mm txiv neej |
GPPO (Mini-SMP) Poj niam |
DC -67 ghz |
10Db |
|
|
Fru 2-185} wmgpped-xxx |
1.85 hli txiv neej nrog txoj cai |
GPPO (Mini-SMP) Poj niam |
DC -67 ghz |
10Db |
|
|
Fru 2-185 mg3pf-xxx |
1.85mm txiv neej |
G3PO (SMPS) Poj Niam |
DC -67 ghz |
10Db |
|
|
Fru 2-185 mmmpxm-xxx |
1.85mm txiv neej |
MMPX txiv neej |
DC -67 ghz |
10Db |
|
|
Fru 2-185 mmmpxf-xxx |
1.85mm txiv neej |
MMPX Poj Niam |
DC -67 ghz |
10Db |
|
|
Fru 2-185 fgppf-xxx |
1.85mm Poj Niam |
GPPO (Mini-SMP) Poj niam |
DC -67 ghz |
10Db |
|
|
Fru 2-185 ffgpped-xxx |
1.85mm poj niam nrog 4 lub qhov flange |
GPPO (Mini-SMP) Poj niam |
DC -67 ghz |
10Db |
|
|
Fru 2-185 fg3pf-xxx |
1.85mm Poj Niam |
G3PO (SMPS) Poj Niam |
DC -67 ghz |
10Db |
|
|
Fru 2-185 ffg3pf-xxx |
1.85mm poj niam nrog 4 lub qhov flange |
GPPO (Mini-SMP) Poj niam |
DC -67 ghz |
10Db |
|
|
Fru 2-185 fmmpxm-xxx |
1.85mm Poj Niam |
MMPX txiv neej |
DC -67 ghz |
10Db |
|
|
Fru 2-185 fmmpxf-xxx |
1.85mm Poj Niam |
MMPX Poj Niam |
DC -67 ghz |
10Db |
| Fru3 / GT3507 Qis Poob ruaj khov txheej txheej txheej sib xyaw ua ke (40GHz) | ||||
|
|
Tus qauv cov kab kab uas hla (hli) |
|||
|
1 |
Sab hauv tus neeg kos npe |
Silver-Plated Copper-Clad Hlau |
0.91±0.05 |
|
|
2 |
Tshuaj insulator |
Khoom PTFE |
2.69±0.05 |
|
|
3 |
Sab hauv Kev Tiv Thaiv |
Silver-Plated Tooj Liab Band |
2.86±0.05 |
|
|
4 |
Tiv Thaiv Shielding |
Nyiaj-Plated Tooj Liab Hlau Braiding |
3.28±0.05 |
|
|
5 |
lub tsho loj |
Tus FEP |
3.73±0.13 |
|
| Attenuation, Fais Fab (Kev Ntsuas Yam Mob ntawm 20 Qib Hiav Txwv Qaum) | |||||
|
Zaus (GHz) |
1 |
10 |
18 |
26.5 |
40 |
|
Attenuation (DB / M) |
0.39 |
1.31 |
1.81 |
2.23 |
2.85 |
|
Hwjchim (W) |
380 |
120 |
90 |
75 |
65 |
|
Hluav Taws Xob Thiab Cov Neeg Kho Tshuab |
|||||||
|
Zaus (GHz) |
Impedance (ω) |
Kis Tus Nqi |
Tshuaj |
Daim thaiv |
Kev khiav hauj lwm kub qho deb |
Tsawg kawg yog khoov hluav taws xob vojvoog |
Txawj kho ub no kev ruaj khov ntawm theem |
|
40 |
50 |
85% |
86 pf / m |
>90DB |
{{0 {}}℃~ +165 degree |
11Mm |
10GHz / 3 Degree 18GHz / 5 degree |
|
Cov Qauv Qauv thiab Cov Lus Qhia
|
|||||||
|
Daim duab |
Khaub cij |
Connendor 1 |
Connendor 2 |
Freqency |
Rov qab poob / vswr |
|
|
Fru 3-292 m292m-xxx |
2.92mm txiv neej |
2.92mm txiv neej |
DC -40 ghz |
1.44 |
|
|
Fru 3-292 m24m-xxx |
2.92mm txiv neej |
2.4 hli txiv neej |
DC -40 ghz |
1.35 |
|
|
Fru 3-24 m24m-xxx |
2.4 hli txiv neej |
2.4 hli txiv neej |
DC -40 ghz |
1.35 |
| FRA3 / GT2501 QU2 QUEIS NYENTAL ruaj ruaj theem Cable Sib Koom Tes (26.5GHz) | ||||
|
|
Tus qauv cov kab kab uas hla (hli) |
|||
|
1 |
Sab hauv tus neeg kos npe |
Silver-Plated Copper-Clad Hlau |
1.45±0.05 |
|
|
2 |
Tshuaj insulator |
Khoom PTFE |
3.99±0.05 |
|
|
3 |
Sab hauv Kev Tiv Thaiv |
Silver-Plated Tooj Liab Band |
4.19±0.05 |
|
|
4 |
Tiv Thaiv Shielding |
Nyiaj-Plated Tooj Liab Hlau Braiding |
4.42±0.05 |
|
|
5 |
lub tsho loj |
Tus FEP |
5.21±0.13 |
|
| Attenuation, Fais Fab (Kev Ntsuas Yam Mob ntawm 20 Qib Hiav Txwv Qaum) | |||||
|
Zaus (GHz) |
1 |
5 |
10 |
18 |
26.5 |
|
Attenuation (DB / M) |
0.26 |
0.52 |
0.76 |
1.05 |
1.28 |
|
Hwjchim (W) |
800 |
350 |
--- |
100 |
--- |
|
Hluav Taws Xob Thiab Cov Neeg Kho Tshuab |
|||||||
|
Zaus (GHz) |
Impedance (ω) |
Kis Tus Nqi |
Tshuaj |
Daim thaiv |
Kev khiav hauj lwm kub qho deb |
Tsawg kawg yog khoov hluav taws xob vojvoog |
Txawj kho ub no kev ruaj khov ntawm theem |
|
26.5 |
50 |
80.4% |
86 pf / m |
>100db |
{{0 {}}℃~ +165 degree |
6.35mm |
10GHz / 3 Degree 18GHz / 5 degree |
|
Cov Qauv Qauv thiab Cov Lus Qhia
|
|||||||
|
Daim duab |
Khaub cij |
Connendor 1 |
Connendor 2 |
Freqency |
Rov qab poob / vswr |
|
|

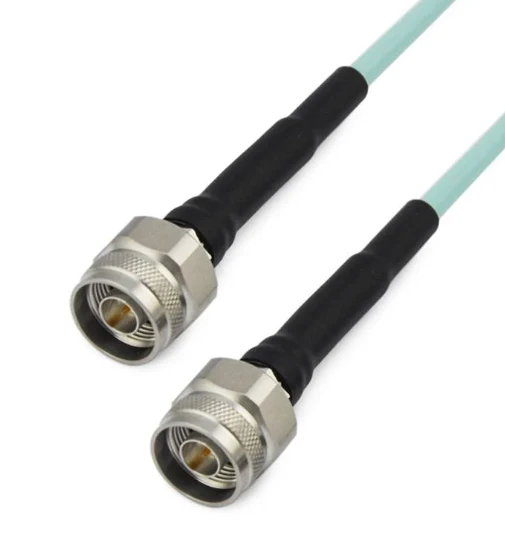

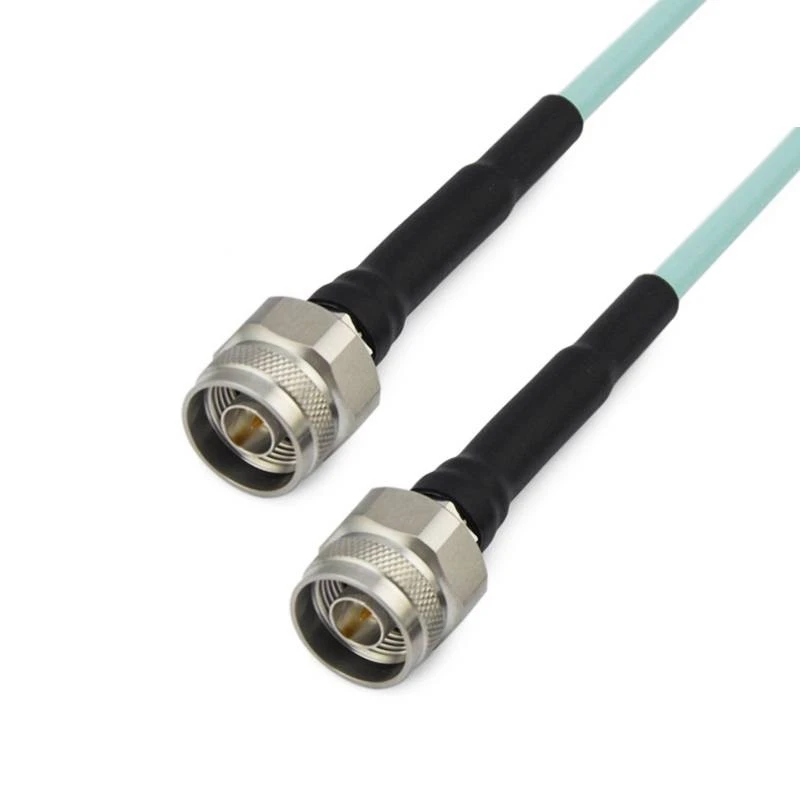

Fra 3- nmnm-xxx |
N txiv neej |
N txiv neej |
DC -18 ghz |
1.25 |
|
|

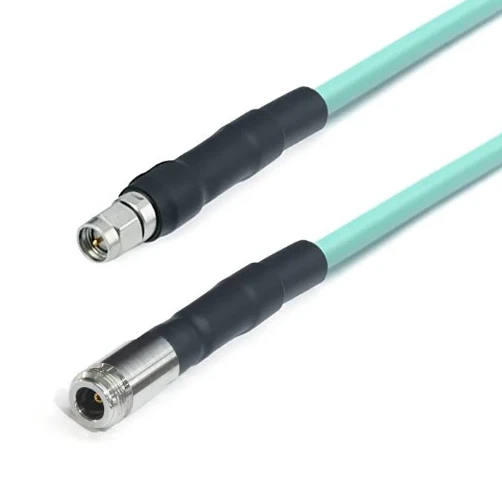

Fra 3- nfsmm-xxx |
N poj niam |
Sma txiv neej |
DC -18 ghz |
1.25 |
|
|

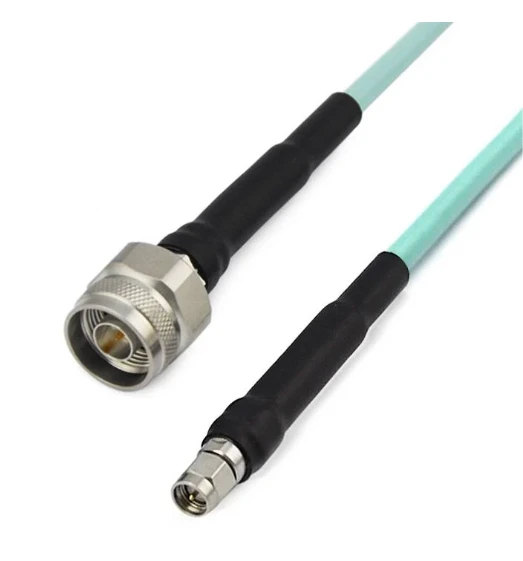

Fra 3- Nmsmm-XXX |
N txiv neej |
Sma txiv neej |
DC -18 ghz |
1.25 |
|
|

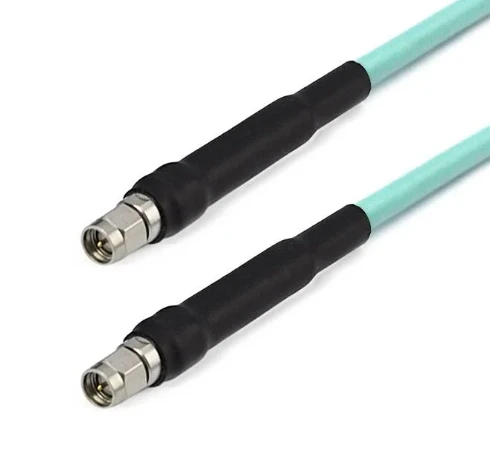

Fra 3- smmsmm-xxx |
Sma txiv neej |
Sma txiv neej |
DC -18 ghz |
1.25 |
|
|

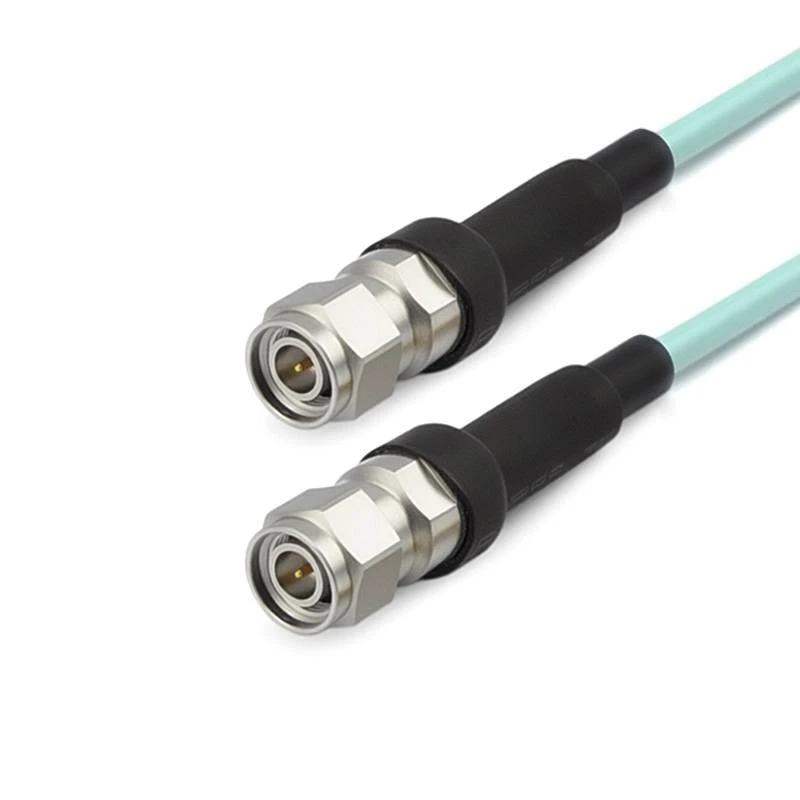

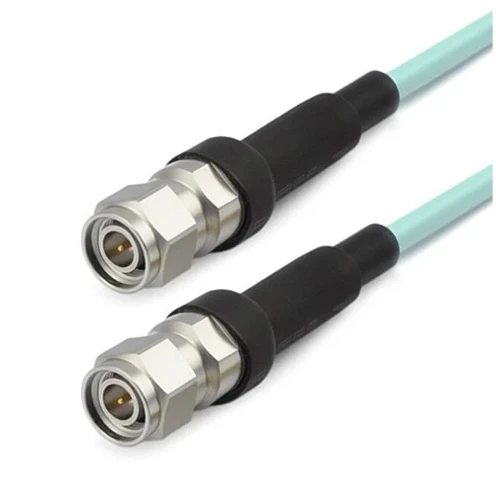

Fra 3- tncmtncm-xxx |
TCC tus txiv neej |
TCC tus txiv neej |
DC -18 ghz |
1.30 |
Cim npe nrov: QUB poob theem ruaj khov Series, Tebchaws Asmeskas tsis tshua poob theem ruaj series cov khoom lag luam, cov chaw muag khoom, Hoobkas
Xa kev nug
Koj Tseem Yuav Zoo Li
