Lub Hom Phiaj Dav Hlau Cables
Lub Hom Phiaj General Kev Kuaj Cables yog siv cov khoom lag luam cable xws li kev kuaj hluav taws xob, nrog ntau hom kev sim tshuaj, nrog rau ntau yam ntxwv sib piv kom tau kev sib tw sib txawv, 2.92mm, SMA, thiab GPPO. Txhua lub Connectors muaj kev cuam tshuam ntawm 50 ohms thiab tus qauv polarity.
Hauj lwm lawm
Lub Hom Phiaj Dav Hlau Cables
Lub Hom Phiaj General Kev Kuaj Cov Cables yog siv cov khoom lag luam cable xws li kev sim hauv tshuab hluav taws xob, nrog rau ntau yam ntxwv los sib tw ua ke, nrog ntau yam ntxwv rau ntau yam kev siv ntau yam ntxiv rau kev siv ntau yam ntxiv Txhua lub Connectors muaj kev cuam tshuam ntawm 50 ohms thiab tus qauv polarity. Ntxiv mus, cov sib txuas muaj ntau txoj kev teeb tsa, suav nrog kev ncaj thiab txoj cai - cov hom-actible, uas tuaj yeem hloov kho rau cov khoom sib txawv.
Khoom Taw Qhia
Nyob rau hauv cov nqe lus ntawm cov ntaub ntawv xaiv, qhov chaw sib cuag hauv nruab nrab, thiab cov khoom siv hluav taws xob tseem ceeb heev, lossis cov khoom siv hluav taws xob tsis zoo rau cov khoom lag luam steel, rwb thaiv tsev txheej yog cov tawv nqaij ptfe, cov ntaub hlau tooj liab, thiab muaj cov hlau ua kom zoo nkauj thiab ib puag ncig tsis kam thiab ib puag ncig tsis yog {}}
Daim Ntawv Thov Khoom
Thaum lub sijhawm tshawb fawb, kev loj hlob, kev tsim khoom ntawm kev sib txuas lus, kom muaj kev sib txuas lus, dav dav} Piv txwv, hauv kev tsim kho ntawm 5g puag ncig, Hom cable no yog siv los txuas cov cim liab, thiab lwm yam khoom siv los ntsuas cov chaw nres tsheb hauv paus, kom muaj kev sib txuas lus ruaj khov kho tau zoo thiab kev sib txuas lus ruaj khov thiab muaj txiaj ntsig}
Cov Lus Tseem Ceeb
1.} rau kev cai ntev kev sib sau ua ke, thov tsis txhob hnov qab tawm ntawm koj cov ntaub ntawv ntev ntawm nplooj ntawv txheeb xyuas;
2.} txhua lub rooj sib txoos cabllies tuaj yeem muab nrog theem-sib phim ua ke lossis pab pawg; Yog tias koj xav tau cov kab ke yuav raug sib phim, thov xa email rau peb: {sales@flexirf.com
Cov Khoom Siv Khoom Tshwj Xeeb Cov ntaub ntawv
|
Kev teeb tsa |
|
|

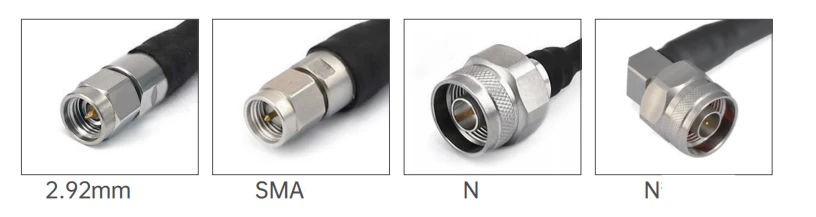

Connector 1 Hom |

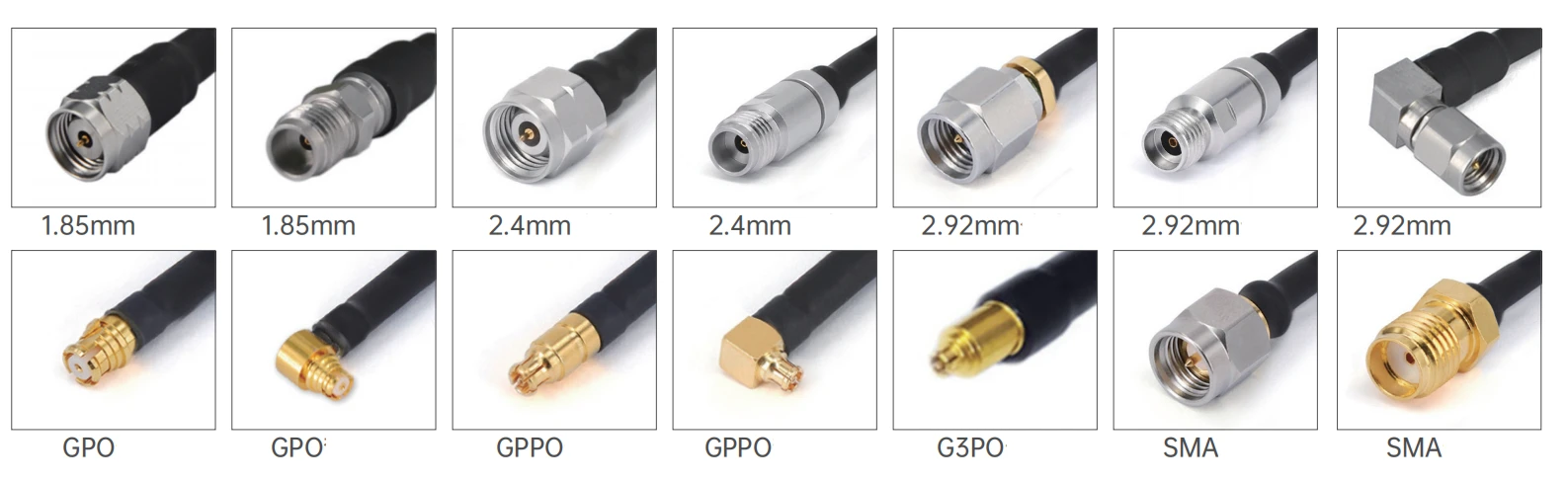

1.85 hli / 2.4mm / 2.92mm / SMA / G3PO / GPPO / N |
|
Connector 1 impedance |
50 OHMS |
|
Connector 1 Polarity |
Lub hom phiaj |
|
Connector 2 hom |
1.85 hli / 2.4mm / 2.92mm / SMA / G3PO / GPPO / N |
|
Connector 2 impedance |
50 OHMS |
|
Connector 2 Polarity |
Lub hom phiaj |
|
Txuas Mount Txujc |
Tsis muaj |
|
Connector Lub Cev Qauv |
Ncaj thiab txoj kev sab xis |
|
Cov Ntaub Ntawv Cov Ntaub Ntawv |
|
|
Chaw Hu Nkauj |
Brass kub plated, beyllium tooj liab kub plated |
|
Sib cuag sab nraud |
Brass Kub Plated, BerylLium Tooj Liab Kub Plated, Stainless Hlau Passivated |
|
Lub cev |
Brass Kub Plated, BerylLium Tooj Liab Kub, Stainless Hlau Passivated |
|
Dielectric |
PTI / PTFE |
|
Cov ntaub ntawv ib puag ncig |
|
|
Qhov ntsuas kub ntau |
{{0 {}}℃rau +165 degree |
|
2011/65 / EU (ROHS) |
Ua raws li |
|
CUB KAB SPILITICS |
|
|
Center Codor |
Nyiaj plating Copperweld |
|
Dielectric |
Khoom PTFE |
|
Ob daim thaiv |
Silver-Plated Tooj Liab Band thiab Hlau |
|
Lub tsho loj |
Tus FEP |
|
Capacitance (PF / M) |
95.1 |
|
Velocity of Propagation (%) |
70 |
|
Tiv Thaiv Kev Ua Haujlwm Zoo |
<-100dB @ 1GHz |
|
Lub Zog Tuav Tes |
10Watt @GHGH ntawm Hiav Txwv Qaum Hiav Txwv, VWWR1.0 |
Khoom Yam
| GAF71 / RG405Ss 405 series yooj ywm cable sib dhos | ||||
 |
Tus qauv cov kab kab uas hla (hli) |
|||
|
1 |
Sab hauv tus neeg kos npe |
Silver-Plated Copper-Clad Hlau |
0.51±0.05 |
|
|
2 |
Tshuaj insulator |
Khoom PTFE |
1.63±0.05 |
|
|
3 |
Sab hauv Kev Tiv Thaiv |
Silver-Plated Tooj Liab Band |
1.80±0.05 |
|
|
4 |
Tiv Thaiv Shielding |
Nyiaj-Plated Tooj Liab Hlau Braiding |
2.18±0.05 |
|
|
5 |
lub tsho loj |
Tus FEP |
2.54±0.1 |
|
| Attenuation, Fais Fab (Kev Ntsuas Yam Mob ntawm 20 Qib Hiav Txwv Qaum) | |||||||
|
Zaus (GHz) |
1 |
3 |
5 |
10 |
15 |
18 |
20 |
|
Attenuation (DB / M) |
0.75 |
1.29 |
1.71 |
2.56 |
3.22 |
3.57 |
3.80 |
|
Attenuation (DB / FT) |
0.229 |
0.393 |
0.521 |
0.780 |
0.981 |
1.008 |
1.115 |
|
Cov Qauv Qauv thiab Cov Lus Qhia
|
|||||
|
Daim duab |
Khaub cij |
Connendor 1 |
Connendor 2 |
Freqency |
Rov qab poob / vswr |
 |

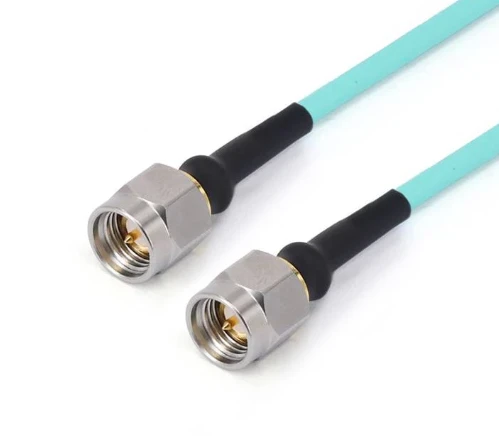

FRF 71- smmsmm-xxx |
Sma txiv neej |
Sma txiv neej |
DC -26.5 ghz |
1.30 |
 |

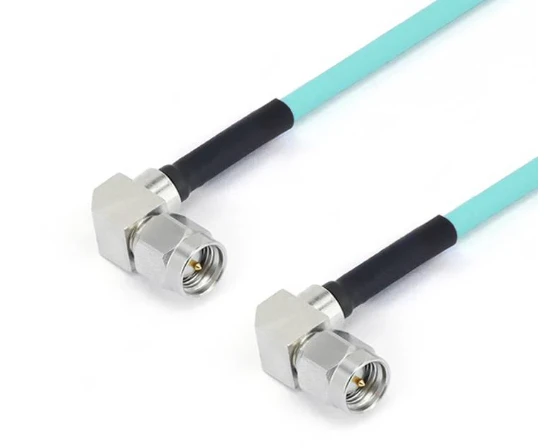

Frf 71- smwmsmwm-xxx -18 g |
Sma txiv neej nrog txoj cai |
Sma txiv neej nrog txoj cai |
DC -18 ghz |
1.30 |
 |

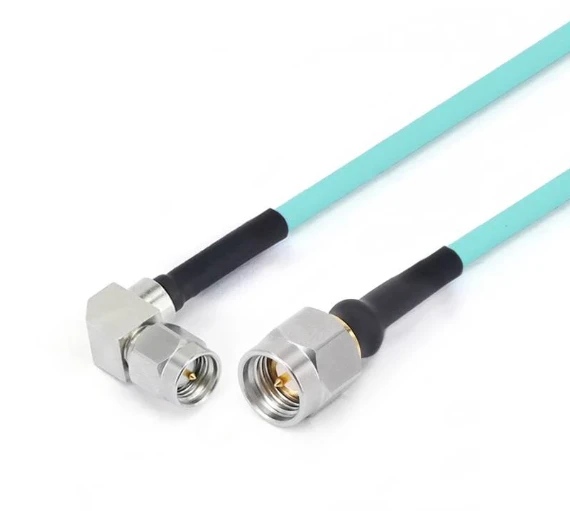

Frf 71- smsmwm-xxx -18 g |
Sma txiv neej |
Sma txiv neej nrog txoj cai |
DC -18 ghz |
1.30 |
 |
FRF 71- smmgpf-xxx |
Sma txiv neej |
GPO (SMP) Poj Niam |
DC -26.5 ghz |
1.35 |
 |
FRF 71- smmgpwf-xxx |
Sma txiv neej |
GPO (SMP) Poj Niam Nrog Txoj Cai |
DC -26.5 ghz |
1.35 |
 |
FRF 71- smfgpf-xxx |
Sma poj niam |
GPO (SMP) Poj Niam |
DC -26.5 ghz |
1.35 |
 |
FRF 71- smffgpf-xxx |
Sma poj niam nrog 4 lub qhov flange |
GPO (SMP) Poj Niam |
DC -26.5 ghz |
1.35 |
 |
FRF 71- smmgpp-xxx |
Sma txiv neej |
GPPO (Mini-SMP) Poj niam |
DC -26.5 ghz |
14Db |
 |
FRF 71- smmgppwf-xxx |
Sma txiv neej |
GPPO poj niam nrog txoj cai |
DC -26.5 ghz |
14Db |
 |
FRF 71- smwmgpp-xxx -18 g |
Sma txiv neej nrog txoj cai |
GPPO (Mini-SMP) Poj niam |
DC -18 ghz |
15db |
 |
Frf 71- smwmgppwf-xxx -18 g |
Sma txiv neej nrog txoj cai |
GPPO poj niam nrog txoj cai |
DC -18 ghz |
15db |
 |
FRF 71- smfgpped-xxx |
Sma poj niam |
GPPO (Mini-SMP) Poj niam |
DC -26.5 ghz |
14Db |
 |
FRF 71-} smffgpp-xxx |
Sma poj niam nrog 4 lub qhov flange |
GPPO (Mini-SMP) Poj niam |
DC -26.5 ghz |
14Db |
 |
FRF 71-292 m292m-xxx |
2.92mm txiv neej |
2.92mm txiv neej |
DC -40 ghz |
1.35 |
 |
FRF 71-292 mgpf-xxx |
2.92mm txiv neej |
GPO (SMP) Poj Niam |
DC -40 ghz |
14Db |
 |
FRF 71-292 mgpwf-xxx |
2.92mm txiv neej |
GPO (SMP) Poj Niam Nrog Txoj Cai |
DC -40 ghz |
12DB |
 |
FRF 71-292 fgpf-xxx |
2.92mm Poj Niam |
GPO (SMP) Poj Niam |
DC -40 ghz |
14Db |
 |
FRF 71-292 ffgpf-xxx |
2.92mm poj niam nrog 4 lub qhov flange |
GPO (SMP) Poj Niam |
DC -40 ghz |
14Db |
 |
FRF 71-292 mgppf-xxx |
2.92mm txiv neej |
GPPO (Mini-SMP) Poj niam |
DC -40 ghz |
14Db |
 |
FRF 71-292 fgppf-xxx |
2.92mm Poj Niam |
GPPO (Mini-SMP) Poj niam |
DC -40 ghz |
14Db |
 |
FRF 71-292 ffgpped-xxx |
2.92mm poj niam nrog 4 lub qhov flange |
GPPO (Mini-SMP) Poj niam |
DC -40 ghz |
14Db |
 |
FRF 71-292 mgppwf-xxx |
2.92mm txiv neej |
GPPO (Mini-SMP) Poj niam nrog txoj cai |
DC -40 ghz |
12DB |
 |
FRF 71-292 mg3pf-xxx |
2.92mm txiv neej |
G3PO (SMPS) Poj Niam |
DC -40 ghz |
14Db |
 |
FRF 71-292 fg3pf-XXX |
2.92mm Poj Niam |
G3PO (SMPS) Poj Niam |
DC -40 ghz |
14Db |
 |
FRF 71-292 ffg3pf-xxx |
2.92mm poj niam nrog 4 lub qhov flange |
G3PO (SMPS) Poj Niam |
DC -40 ghz |
14Db |
 |
FRF 71-24 m24m-xxx |
2.4 hli txiv neej |
2.4 hli txiv neej |
DC -50 ghz |
14Db |
 |
FRF 71-24 fgpf-xxx |
2.4mm Poj Niam |
GPO (SMP) Poj Niam |
DC -40 ghz |
12DB |
 |
Frf 71-24 ffgpf -100 |
2.4mm poj niam nrog 4 lub qhov flange |
GPO (SMP) Poj Niam |
DC -40 ghz |
12DB |
 |
FRF 71-24 mgpwf-xxx |
2.4 hli txiv neej |
GPO (SMP) Poj Niam Nrog Txoj Cai |
DC -40 ghz |
10Db |
 |
FRF 71-24 mgppf-xxx |
2.4 hli txiv neej |
GPPO (Mini-SMP) Poj niam |
DC -40 ghz |
12DB |
 |
FRF 71-24 mgppwf-xxx |
2.4 hli txiv neej |
GPPO (Mini-SMP) Poj niam nrog txoj cai |
DC -40 ghz |
10Db |
 |
FRF 71-24 fgppf-xxx |
2.4mm Poj Niam |
GPPO (Mini-SMP) Poj niam |
DC -40 ghz |
12DB |
 |
FRF 71-24 ffgpped-xxx |
2.4mm poj niam nrog 4 lub qhov flange |
GPPO (Mini-SMP) Poj niam |
DC -40 ghz |
12DB |
 |
FRF 71-185 mg3pf-xxx |
1.85mm txiv neej |
G3PO (SMPS) Poj Niam |
DC - 67 ghz |
10Db |
 |
FRF 71-185 fg3pf-XXX |
1.85mm Poj Niam |
G3PO (SMPS) Poj Niam |
DC - 67 ghz |
10Db |
 |
FRF 71-185 ffg3pf-xxx |
1.85mm nrog 4 lub qhov flange |
G3PO (SMPS) Poj Niam |
DC - 67 ghz |
10Db |
|
GAF72 / RG402Ss 402 series yooj ywm cable sib dhos |
||||||
|
Tus qauv cov kab kab uas hla (hli) |
||||||
 |
1 |
Sab hauv tus neeg kos npe |
Silver-Plated Copper-Clad Hlau |
0.92±0.05 |
||
|
2 |
Tshuaj insulator |
Khoom PTFE |
2.97±0.05 |
|||
|
3 |
Sab hauv Kev Tiv Thaiv |
Silver-Plated Tooj Liab Band |
3.25±0.05 |
|||
|
4 |
Tiv Thaiv Shielding |
Nyiaj-Plated Tooj Liab Hlau Braiding |
3.58±0.1 |
|||
|
5 |
lub tsho loj |
Tus FEP |
4.12±0.13 |
|||
| Attenuation, Fais Fab (Kev Ntsuas Yam Mob ntawm 20 Qib Hiav Txwv Qaum) | |||||||
|
Zaus (GHz) |
1 |
3 |
5 |
10 |
15 |
18 |
20 |
|
Attenuation (DB / M) |
0.41 |
0.74 |
0.98 |
1.47 |
1.87 |
2.10 |
2.24 |
|
Attenuation (DB / FT) |
0.125 |
0.226 |
0.299 |
0.448 |
0.570 |
0.640 |
0.683 |
|
Cov Qauv Qauv thiab Cov Lus Qhia
|
|||||
|
Daim duab |
Khaub cij |
Connendor 1 |
Connendor 2 |
Freqency |
Rov qab poob / vswr |
|
|
FRF 72- smmsmm-xxx |
Sma txiv neej |
Sma txiv neej |
DC -26.5 ghz |
1.30 |
|
|

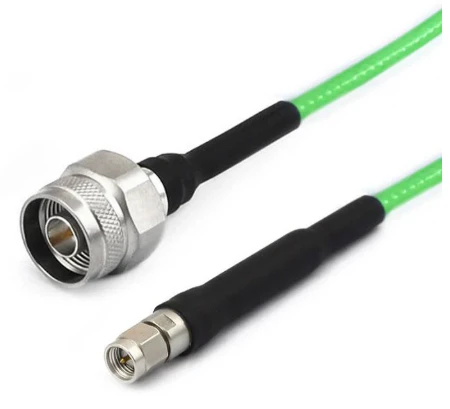

Frf 72- Nmsmm-XXX |
N txiv neej |
Sma txiv neej |
DC -18 ghz |
1.25 |
|
|

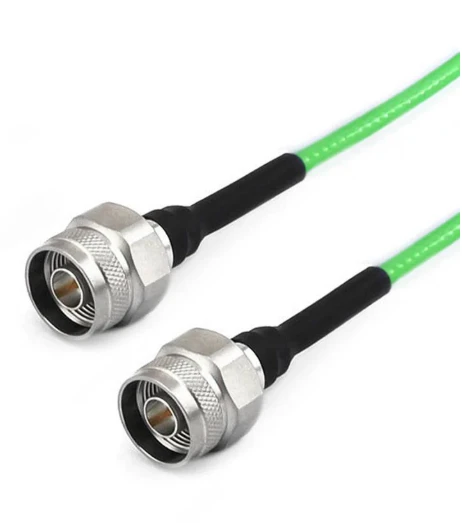

FRF 72- nmnm-xxx |
N txiv neej |
N txiv neej |
DC -18 ghz |
1.25 |
