8- Txoj kev dividers

Peb {8-} Txoj Kev Power Divider Series Txhua yam khoom siv hluav taws xob, kom muaj peev xwm sib ntsib ntawm cov ntawv thov sib txawv thiab muaj peev xwm ua tau zoo ntawm cov ntaub ntawv sib txawv

Xa kev nug

Hauj lwm lawm

Khoom Taw Qhia

Peb {8-}} Txoj kev muaj fais fab sib luag thiab muaj peev xwm ua tau zoo tshaj plaws ntawm cov khoom lag luam radar tshuab nyob rau hauv high-zaus bands, lawv tuaj yeem lis nws nrog kev yooj yim .

Kev rho tawm tsawg kawg nkaus tuaj yeem ncav cuag 18db ~ 20db. Qhov kev tawm tsam loj uas tsis cuam tshuam nrog txhua lwm yam tso tawm, txhim kho qhov kev ua tau zoo ntawm cov kab ke ntawm lub system {}}

Khoom Qauv Qauv Nta

Cov khoom lag luam yog ua los ntawm txhuas alloy . Alloy Alloy, cov xim sib txawv, thiab xim xim dub tshwj xeeb. cov txheej txheem tsis yog txhim kho lub loog uas yog cov khoom tab sis kuj ua tau zoo tiv thaiv corrosion thiab ncua kev pabcuam lub neej ntawm cov khoom {{3}

Daim Ntawv Thov Khoom

Kuaj thiab ntsuas cov khoom siv: Hauv ntau cov xov tooj cua ntsuas (RF) Kev faib khoom lag luam, txhim kho kev ua haujlwm ntau, txhim kho kev ua haujlwm tau zoo thiab qhov raug.

Cov Lus Qhia Txog Cov Lus Nug

{1. Qhov twg peb tuaj yeem tau txais cov khoom lag luam los ntawm?

Koj tuaj yeem mus dhau ntawm peb lub vev xaib txuas thiab xa e-mail raws li hauv qab no:
www . flexirf . com
Sales@FlexiRF.com
Tsis tas li koj tuaj yeem tiv tauj peb pawg neeg ua lag luam thoob ntiaj teb .

Khoom Yam

Sma 8- txoj kev dividers

Khaub cij	Txuas Cov Series	Hov ntau	VWWRR Cov Lus Qhia	Kev cais me min . (db)

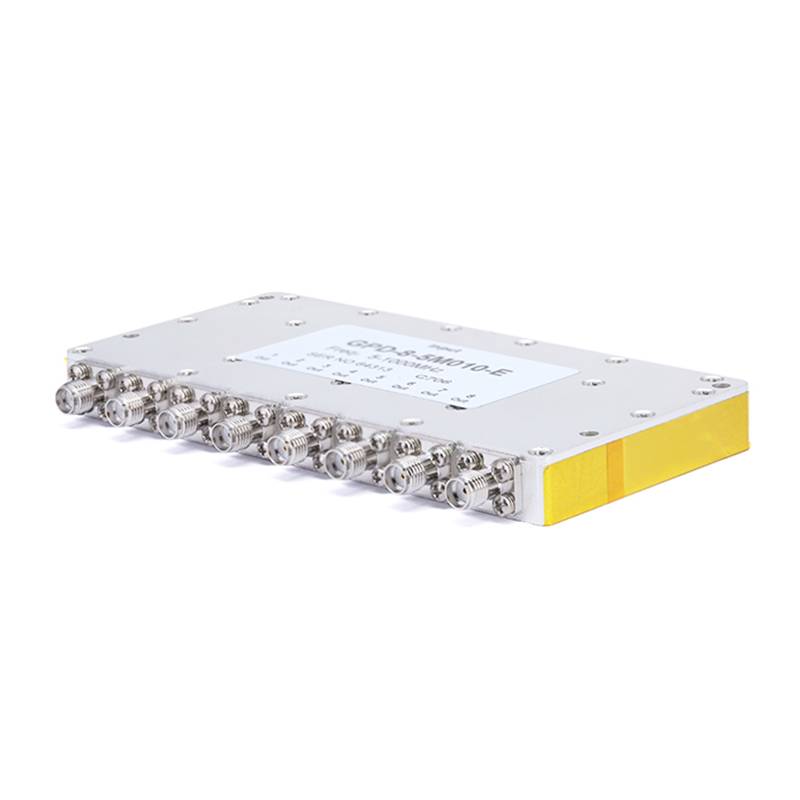

GPD -8-5 m}010- e	Sma poj niam	5MHz ~ 1GHz	1.30	18
Theem sib npaug (degree)	Lub Hwj Chim, Max Cov Lus Qhia (Watts)	Lub Neej Tsis Txaus Ntshai (DB)	Lub Cev Khoom	Lub cev plating
5 Qib	1	±0.5	Aluminium Alloy	Oxidation


Khaub cij	Txuas Cov Series	Hov ntau	VWWRR Cov Lus Qhia	Kev cais me min . (db)

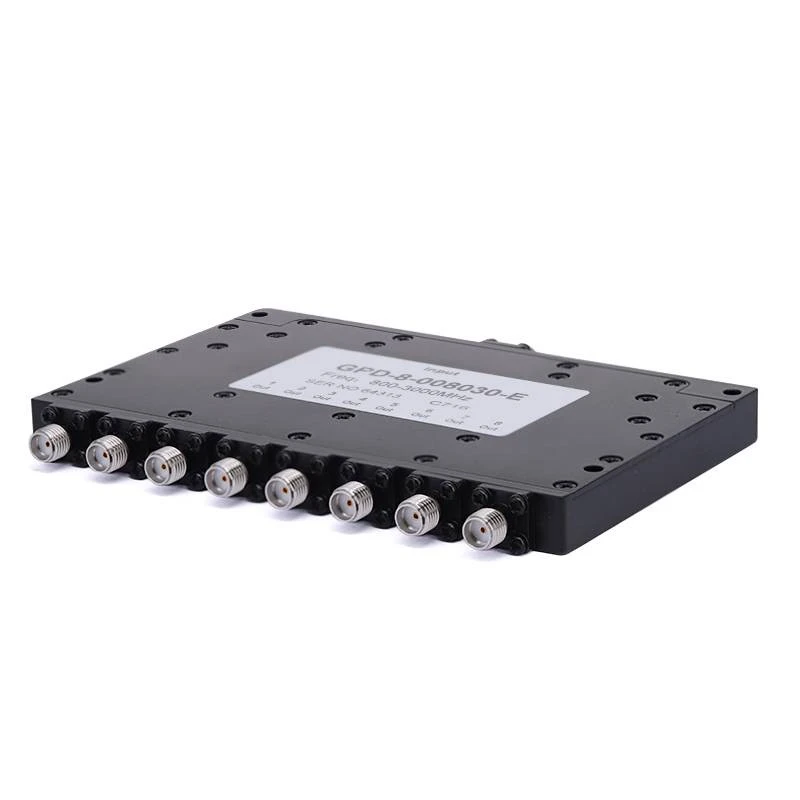

GPD -8-008030- e	Sma poj niam	800MHz ~ 3GHz	1.25	20
Theem sib npaug (degree)	Lub Hwj Chim, Max Cov Lus Qhia (Watts)	Lub Neej Tsis Txaus Ntshai (DB)	Lub Cev Khoom	Lub cev plating
3 Degree	20	±0.3	Aluminium Alloy	Xim dub


Khaub cij	Txuas Cov Series	Hov ntau	VWWRR Cov Lus Qhia	Kev cais me min . (db)

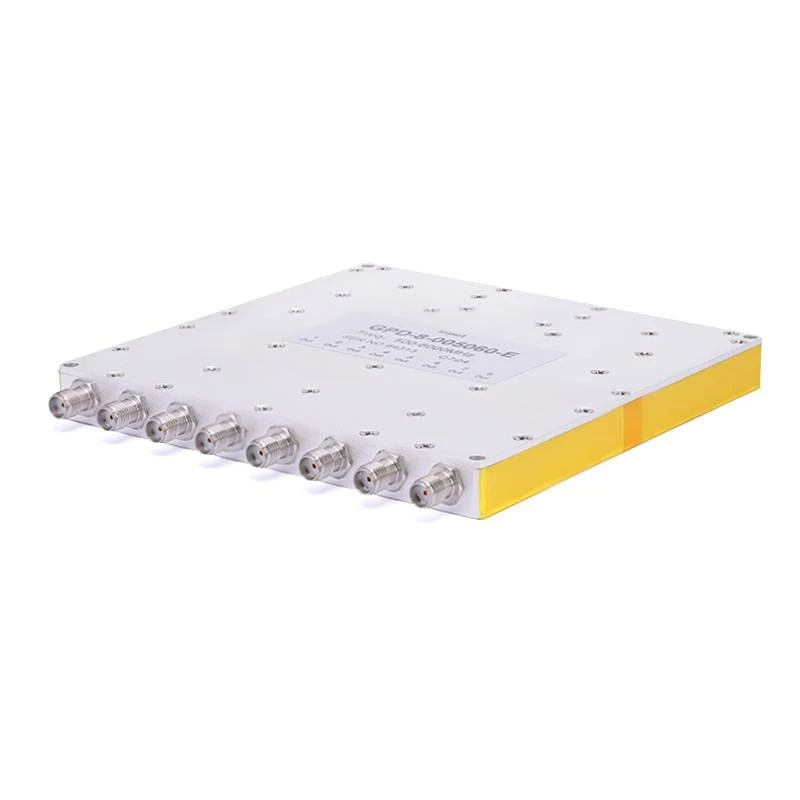

GPD -8-005060- e	Sma poj niam	500MHz ~ 6ghz	1.40	18
Theem sib npaug (degree)	Lub Hwj Chim, Max Cov Lus Qhia (Watts)	Lub Neej Tsis Txaus Ntshai (DB)	Lub Cev Khoom	Lub cev plating
5 Qib	30	±0.4	Aluminium Alloy	Oxidation


Khaub cij	Txuas Cov Series	Hov ntau	VWWRR Cov Lus Qhia	Kev cais me min . (db)

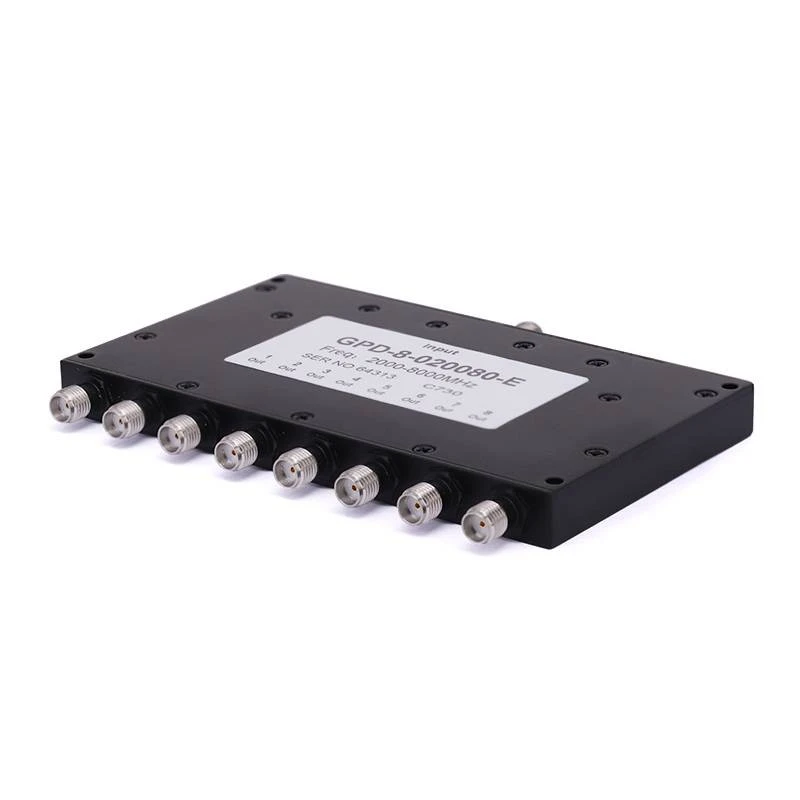

GPD -8-020080- e	Sma poj niam	2GHz ~ 8GHz	1.50	18
Theem sib npaug (degree)	Lub Hwj Chim, Max Cov Lus Qhia (Watts)	Lub Neej Tsis Txaus Ntshai (DB)	Lub Cev Khoom	Lub cev plating
5 Qib	30	±0.4	Aluminium Alloy	Xim dub


Khaub cij	Txuas Cov Series	Hov ntau	VWWRR Cov Lus Qhia	Kev cais me min . (db)

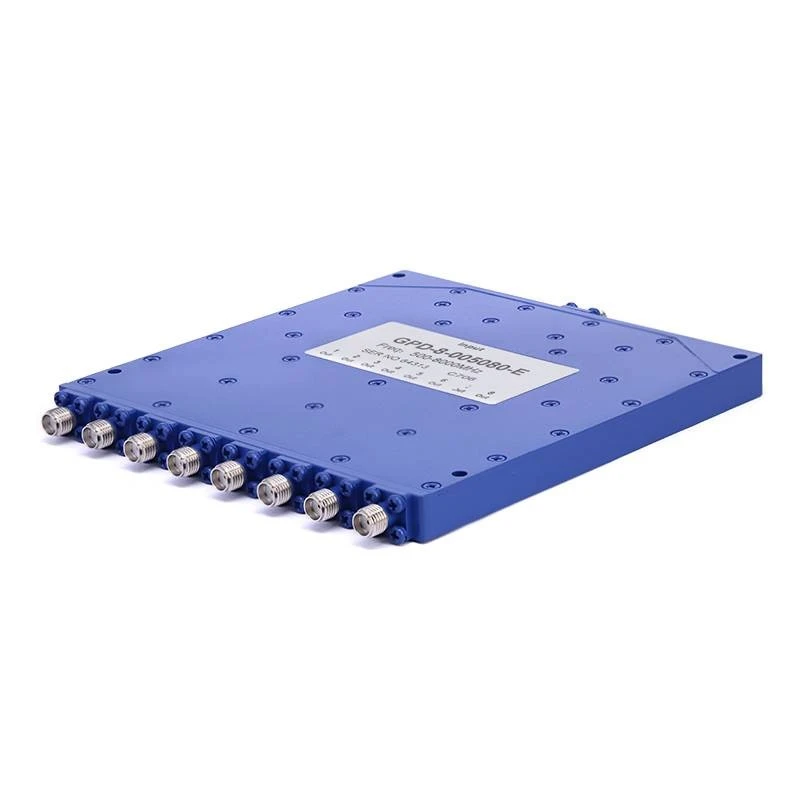

GPD -8-005080- e	Sma poj niam	500MHz ~ 8GHz	1.50	18
Theem sib npaug (degree)	Lub Hwj Chim, Max Cov Lus Qhia (Watts)	Lub Neej Tsis Txaus Ntshai (DB)	Lub Cev Khoom	Lub cev plating
5 Qib	20	±0.4	Aluminium Alloy	Xiav Xim


Khaub cij	Txuas Cov Series	Hov ntau	VWWRR Cov Lus Qhia	Kev cais me min . (db)

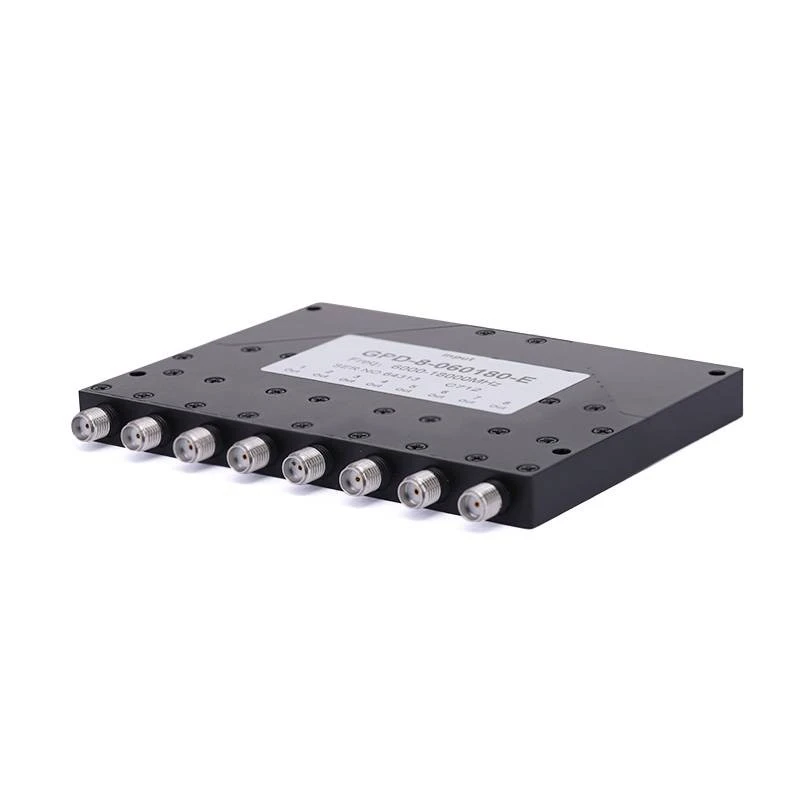

GPD -8-060180- e	Sma poj niam	6GHZ ~ 18GHz	1.50	18
Theem sib npaug (degree)	Lub Hwj Chim, Max Cov Lus Qhia (Watts)	Lub Neej Tsis Txaus Ntshai (DB)	Lub Cev Khoom	Lub cev plating
5 Qib	20	±0.4	Aluminium Alloy	Xim dub
