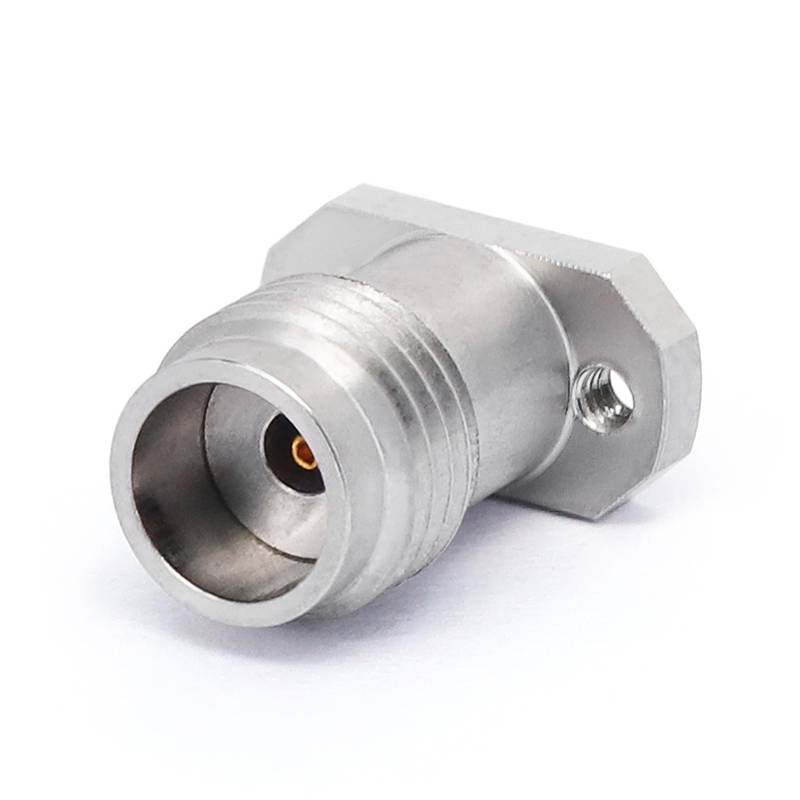

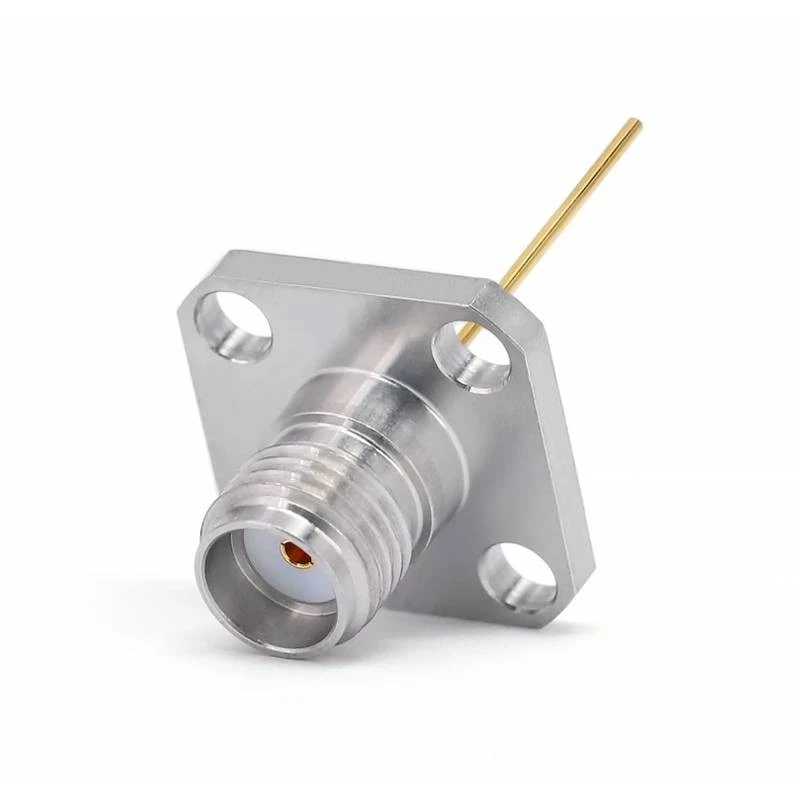

Teb tuaj yeem hloov tau cov txuas txuas ntxiv
RF teb hloov cov neeg sib txuas yog qhov tseem ceeb ntawm RF lub tshuab {} . Tsis muaj qhov xav tau rau soldering; lawv tuaj yeem tsau nrog cov ntsia hlau, uas yooj yim dua cov txheej txheem txij nkawm {}} Txawm nyob rau hauv cov xwm txheej hnyav, cov phiaj xwm no tuaj yeem tswj hwm lub teeb liab {}}
Hauj lwm lawm

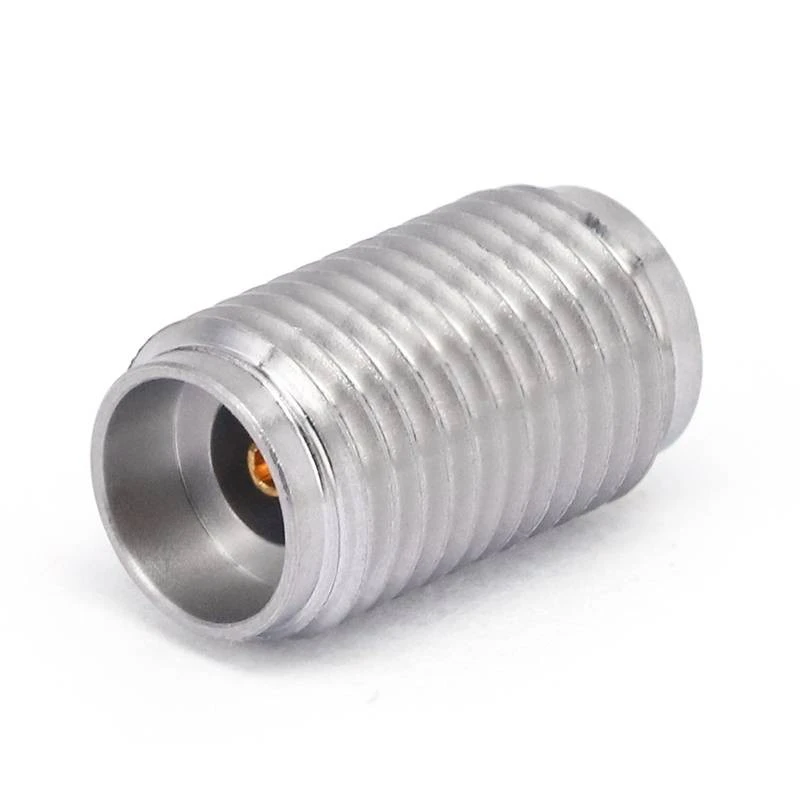

Khoom Taw Qhia
RF teb hloov cov neeg sib txuas yog qhov tseem ceeb ntawm RF lub tshuab {} . Tsis muaj qhov xav tau rau soldering; Lawv tuaj yeem tsau nrog cov screws, uas yooj yim kho cov txheej txheem ntawm cov cim hluav taws xob, cov phiaj xwm qis heev thiab kev cuam tshuam tsis zoo rau kev cuam tshuam thiab tsawg kawg ntawm kev cuam tshuam thiab tsawg} Tus qauv no yog yooj yim rau kev khiav lag luam, txo qhov nyuaj ntawm kev teeb tsa .
Zuag qhia tag nrho, RF teb hloov cooxial txuas txhim kho kev xaiv thiab kev ntseeg tau, 1.8mm, thiab lwm yam thiab cov zaus tseem ceeb rau 110ghz.
Khoom Lub Cev Lub Cev
Daim teb hloov cov neeg sib txuas muaj plaub hom ntawm lub cev, muaj qhov sib txuas zoo nkauj uas muaj cov khoom lag luam uas tsis muaj zog thiab ua kom muaj kev lag luam tsis zoo
Daim Ntawv Thov Khoom
RF teb hloov ntsuas coaxial txuas tau siv los txuas RF cov kab ke uas lawv tuaj yeem ntsib cov huab cua zoo thiab kev tiv thaiv kev sib cuam tshuam kom ntseeg tau tias yog qhov sib cuam tshuam huab cua zoo nyob ruaj khov sab ruaj khov kho
Cov Lus Qhia Txog Cov Lus Nug
Cov Khoom Siv Khoom Tshwj Xeeb Cov ntaub ntawv
|
Kev teeb tsa |
|
|
Connector Hom |
SMA / 2.92mm / 2.4mm / 1.85mm / GPO |
|
Txuas Impedance |
50 OHMS |
|
Connector Polarity |
Lub hom phiaj |
|
Txuas Mount Txujc |
Ncaj / 2 qhov Flange / 4 Qhov Flange |
|
Txuas Txoj Kev |
Tus neeg yus paub |
|
Cov Ntaub Ntawv Cov Ntaub Ntawv |
|
|
Chaw Hu Nkauj |
Lub voos xwm txheej plated |
|
Sib cuag sab nraud |
Stainless hlau |
|
Lub cev |
Stainless hlau |
|
Dielectric |
PTI / PTFE |
|
Cov ntaub ntawv ib puag ncig |
|
|
Qhov ntsuas kub ntau |
{{0 {}}℃rau +165 degree |
|
2011/65 / EU (ROHS) |
Ua raws li |
Khoom Yam

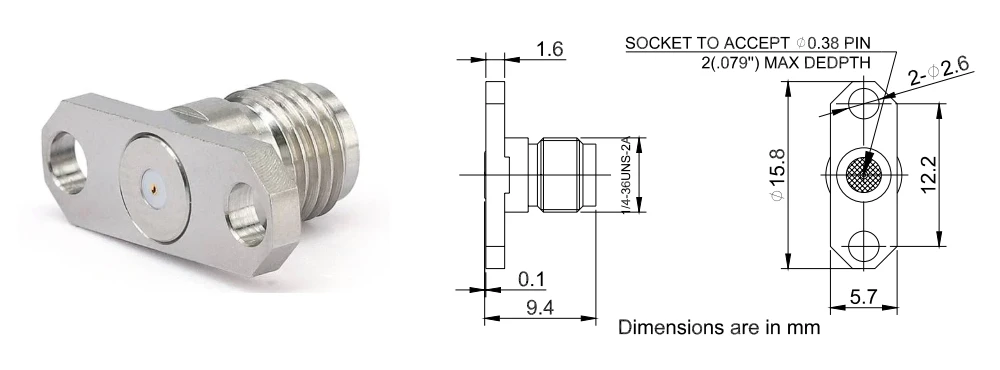

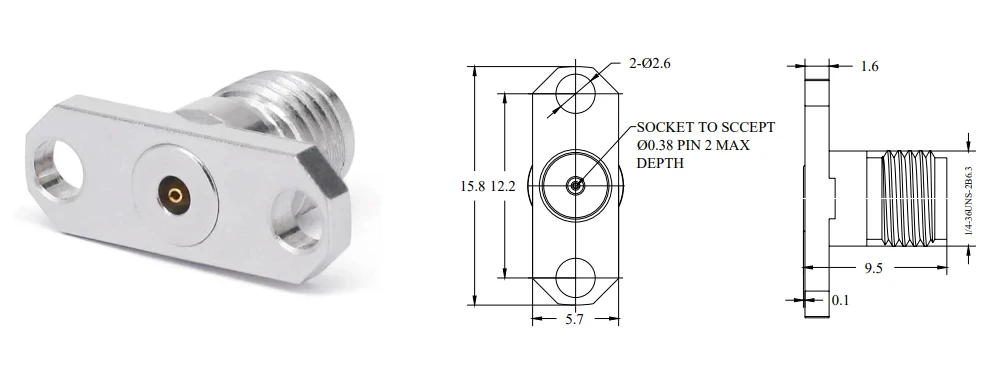

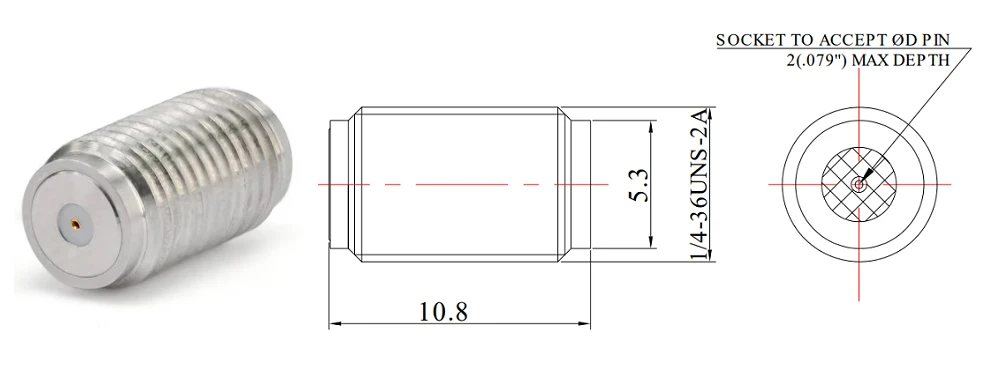

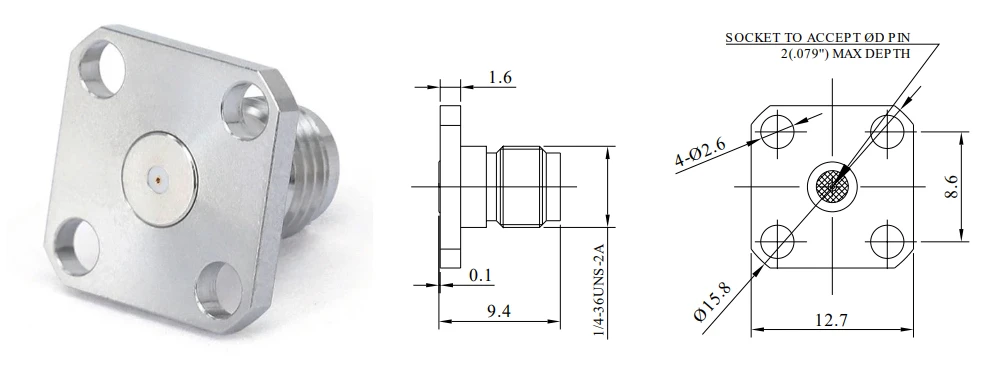

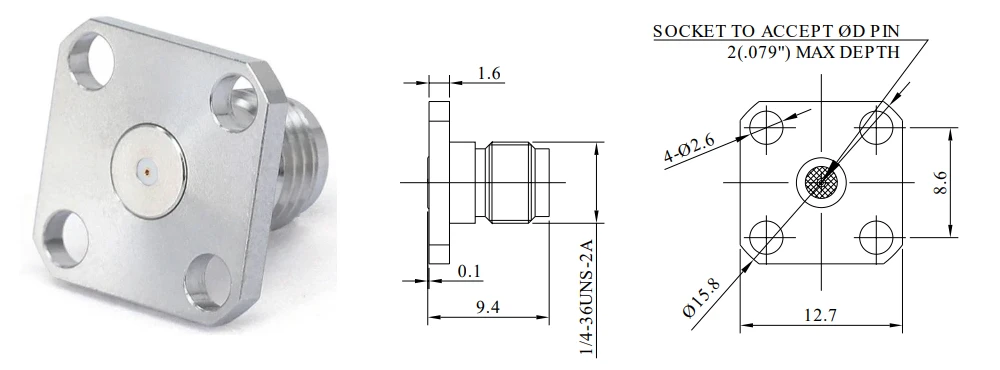

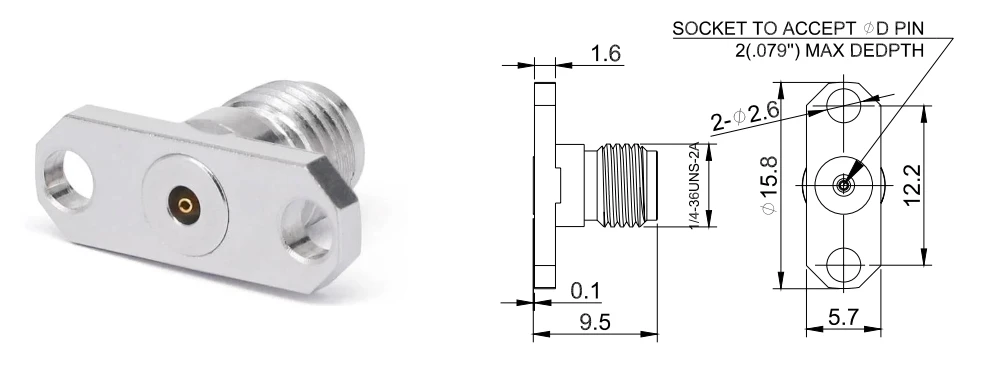

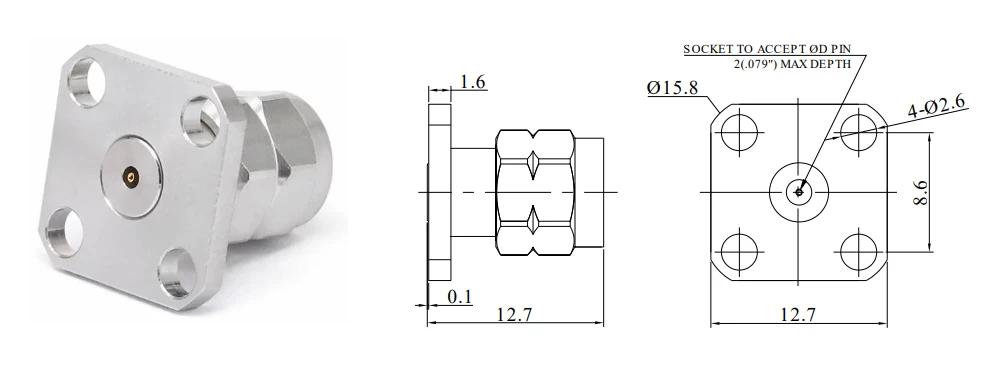

| Sma teb hloov tau cov txuas |
|
Khaub cij |
Hov ntau |
Vwstr |
Tus PIN Match |
|
Fr 2- sma-kfd0151 |
DC - 26.5 ghz |
1.15 |
0.51mm |
|
Khaub cij |
Hov ntau |
Vwstr |
Tus PIN Match |
|
Fr 2- sma-kfd0138 |
DC - 26.5 ghz |
1.15 |
0.38mm |
|
Khaub cij |
Hov ntau |
Vwstr |
Tus PIN Match |
|
Fr 2- sma-kfd0151 |
DC - 26.5 ghz |
1.15 |
0.51mm |
|
Khaub cij |
Hov ntau |
Vwstr |
Tus PIN Match |
|
Fr 2- sma-kfd0138 |
DC - 26.5 ghz |
1.15 |
0.38mm |
|
Khaub cij |
Hov ntau |
Vwstr |
Tus PIN Match |
|
Fr 2- sma-kfd0130 |
DC - 26.5 ghz |
1.15 |
0.30 hli |
|
Khaub cij |
Hov ntau |
Vwstr |
Tus PIN Match |
|
Fr 2- sma-kfd0230 |
DC - 26.5 ghz |
1.15 |
0.30 hli |
|
Khaub cij |
Hov ntau |
Vwstr |
Tus PIN Match |
|
Fr 2- sma-kfd0251 |
DC - 26.5 ghz |
1.15 |
0.51mm |
|
Khaub cij |
Hov ntau |
Vwstr |
Tus PIN Match |
|
Fr 2- sma-kfd0430 |
DC - 26.5 ghz |
1.15 |
0.30 hli |
|
Khaub cij |
Hov ntau |
Vwstr |
Tus PIN Match |
|
Fr 2- sma-kfd0451 |
DC - 26.5 ghz |
1.15 |
0.51mm |
|
Khaub cij |
Hov ntau |
Vwstr |
Tus PIN Match |
|
Fr 2- sma-kfd0438 |
DC - 26.5 ghz |
1.15 |
0.38mm |
|
Khaub cij |
Hov ntau |
Vwstr |
Tus PIN Match |
|
Fr 2- sma-kfd0751 |
DC - 26.5 ghz |
1.15 |
0.51mm |
|
Khaub cij |
Hov ntau |
Vwstr |
Tus PIN Match |
|
Fr 2- sma-kfd0730 |
DC - 26.5 ghz |
1.15 |
0.30 hli |
|
Khaub cij |
Hov ntau |
Vwstr |
Tus PIN Match |
|
Fr 2- sma-kfd0751 |
DC - 26.5 ghz |
1.15 |
0.51mm |

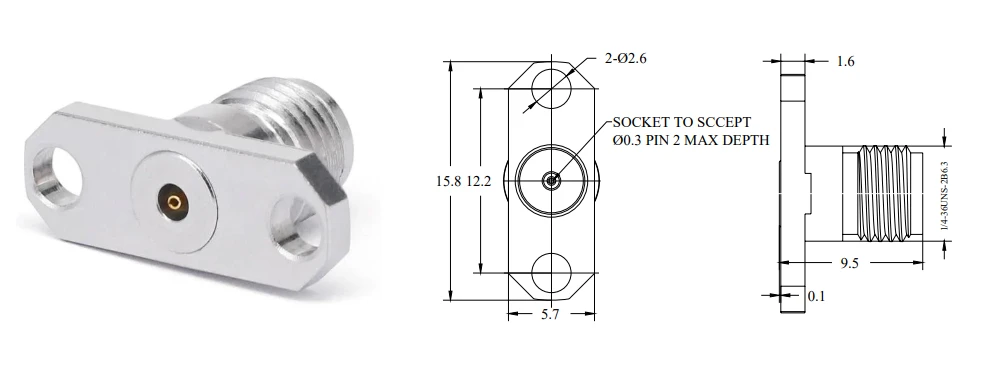

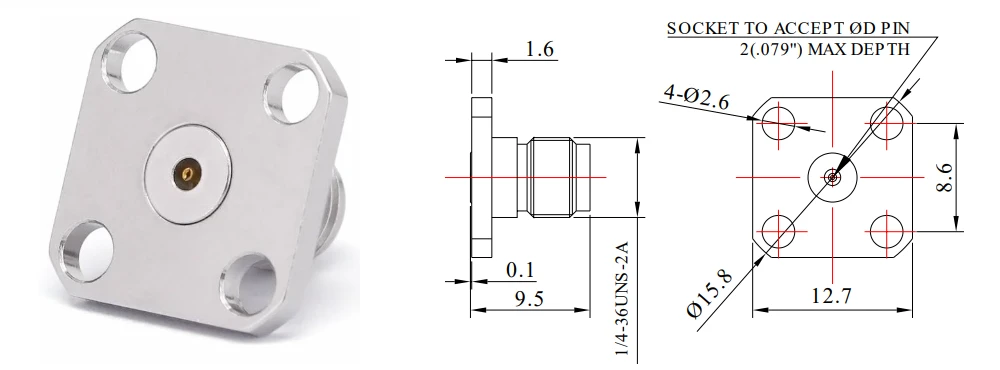

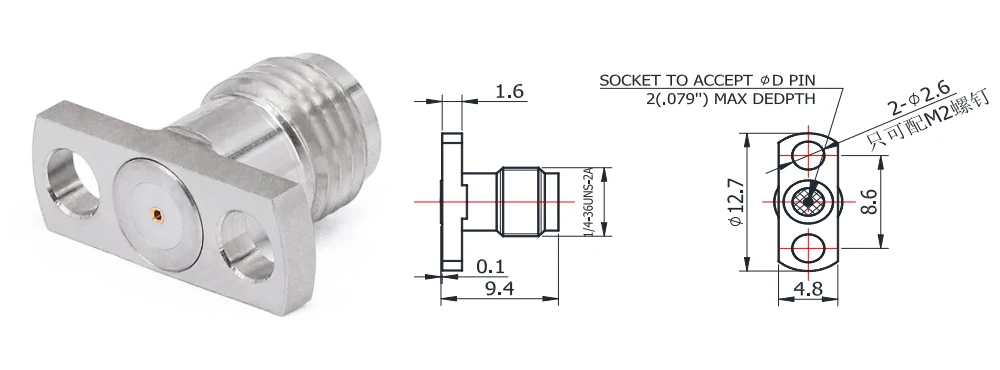

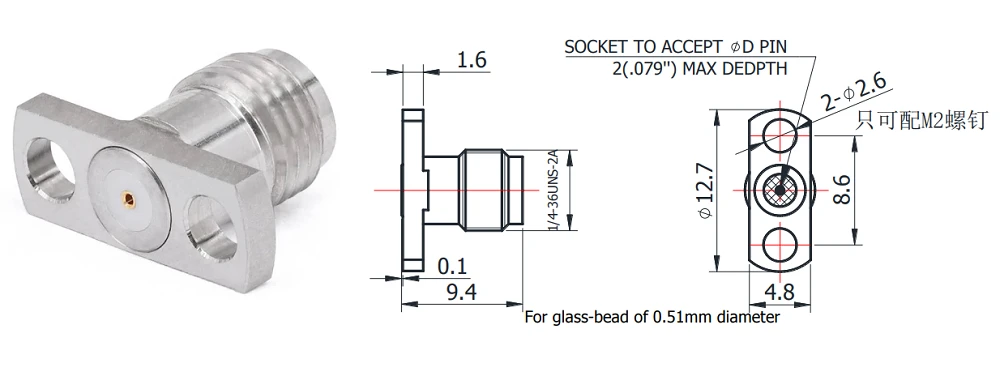

| 2.92mm teb tuaj yeem hloov tau cov khoom siv |
|
Khaub cij |
Hov ntau |
Vwstr |
Tus PIN Match |
|
Fr 2-2.92- kfd0130 |
DC - 40 ghz |
1.15 |
0.30 hli |
|
Khaub cij |
Hov ntau |
Vwstr |
Tus PIN Match |
|
Fr 2-2.92- Kfd0151 |
DC - 40 ghz |
1.15 |
0.51mm |
|
Khaub cij |
Hov ntau |
Vwstr |
Tus PIN Match |
|
Fr 2-2.92- jfd0130 |
DC - 40 ghz |
1.15 |
0.30 hli |
|
Khaub cij |
Hov ntau |
Vwstr |
Tus PIN Match |
|
Fr 2-2.92- Kfd0451 |
DC - 40 ghz |
1.15 |
0.51mm |
|
Khaub cij |
Hov ntau |
Vwstr |
Tus PIN Match |
|
Fr 2-2.92- Kfd0423 |
DC - 40 ghz |
1.15 |
0.23 hli |
|
Khaub cij |
Hov ntau |
Vwstr |
Tus PIN Match |
|
Fr 2-2.92- Kfd0430 |
DC - 40 ghz |
1.15 |
0.30 hli |
| 2.92mm teb tuaj yeem hloov tau cov khoom siv |
|
Khaub cij |
Hov ntau |
Vwstr |
Tus PIN Match |
|
Fr 2-2.92- Kfd0423 |
DC - 40 ghz |
1.15 |
0.23 hli |
|
Khaub cij |
Hov ntau |
Vwstr |
Tus PIN Match |
|
Fr 2-2.92- Kfd0523 |
DC - 40 ghz |
1.15 |
0.23 hli |
|
Khaub cij |
Hov ntau |
Vwstr |
Tus PIN Match |
|
Fr 2-2.92- kfd0530 |
DC - 40 ghz |
1.15 |
0.30 hli |
|
Khaub cij |
Hov ntau |
Vwstr |
Tus PIN Match |
|
Fr 2-2.92- Kfd0551 |
DC - 40 ghz |
1.15 |
0.51mm |
|
Khaub cij |
Hov ntau |
Vwstr |
Tus PIN Match |
|
Fr 2-2.92- Kfd0538 |
DC - 40 ghz |
1.15 |
0.38mm |
|
Khaub cij |
Hov ntau |
Vwstr |
Tus PIN Match |
|
Fr 2-2.92- kfd0730 |
DC - 40 ghz |
1.15 |
0.30 hli |

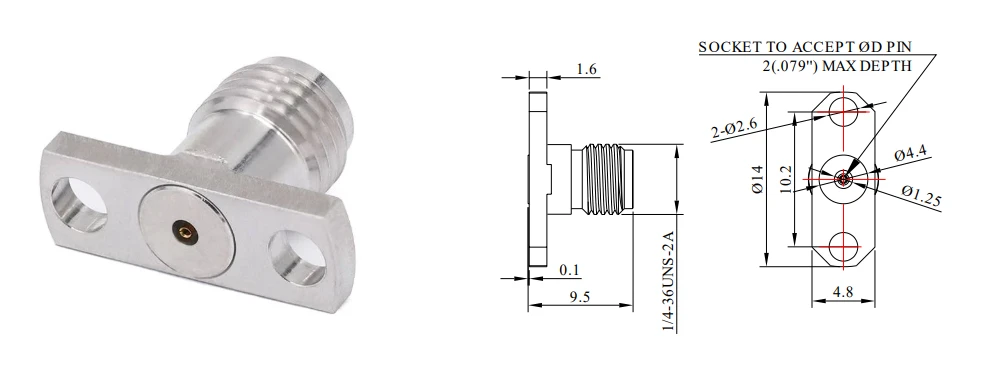

| 2.92mm teb tuaj yeem hloov tau cov khoom siv |
|
Khaub cij |
Hov ntau |
Vwstr |
Tus PIN Match |
|
Fr 2-2.92- kyd0251 |
DC - 40 ghz |
1.15 |
0.51mm |
|
Khaub cij |
Hov ntau |
Vwstr |
Tus PIN Match |
|
Fr 2-2.92- kyd0251 |
DC - 40 ghz |
1.15 |
0.51mm |

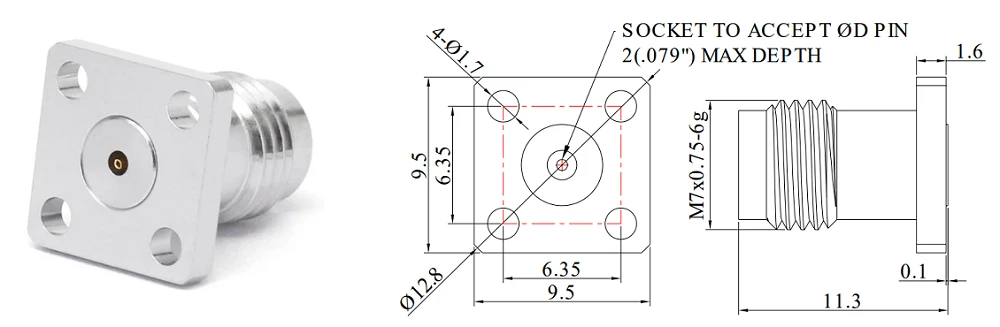

| 2.4mm teb tuaj yeem hloov tau cov txuas txuas ntxiv |
|
Khaub cij |
Hov ntau |
Vwstr |
Tus PIN Match |
|
Fr 2-2.4- kfd0130 |
DC - 50 ghz |
1.15 |
0.30 hli |
|
Khaub cij |
Hov ntau |
Vwstr |
Tus PIN Match |
|
Fr 2-2.4- jfd0230 |
DC - 50 ghz |
1.15 |
0.30 hli |
|
Khaub cij |
Hov ntau |
Vwstr |
Tus PIN Match |
|
Fr 2-2.4- jfd0130 |
DC - 50 ghz |
1.15 |
0.30 hli |
| 1.85mm teb tuaj yeem hloov tau txuas txuas ntxiv |
|
Khaub cij |
Hov ntau |
Vwstr |
Tus PIN Match |
|
Fr 2-1.85- Kfd0230 |
DC - 67 ghz |
1.25 |
0.30 hli |
