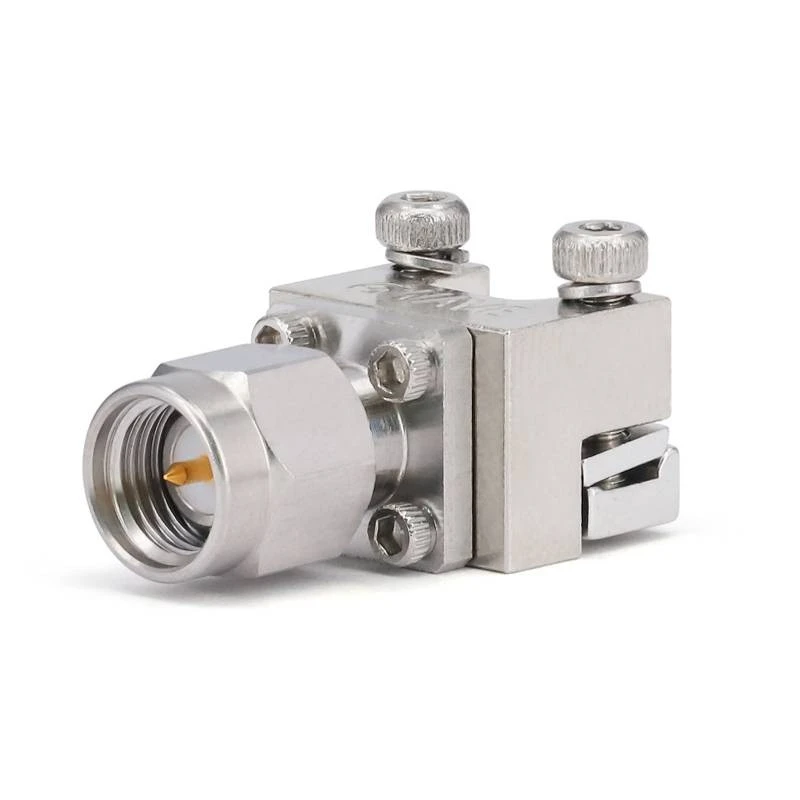

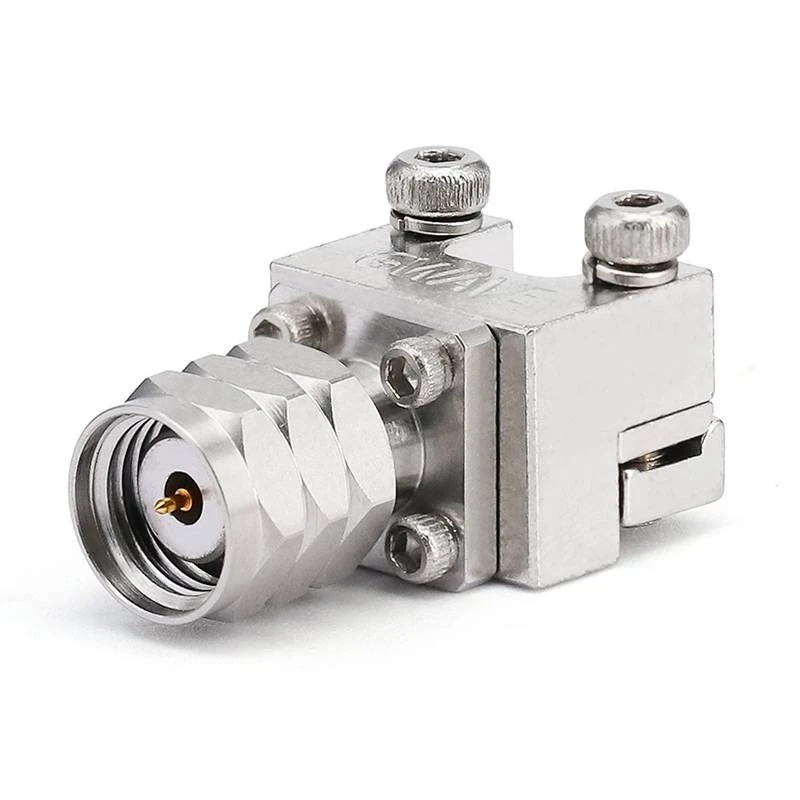

Xaus Tshaj Txuas Txuas

Flexirf's xaus tua cov txuas, muaj nyob rau hauv Sma, 2 {}} 92 hli, 2.4mm, yog tsim los ua kom tau raws li cov kev thov siab tshaj plaws hauv cov ntawv thov siab.
Cov kawg pib tshaj tawm cov ntaub ntawv tshwj xeeb hluav taws xob {{}} nrog lawv qhov kev tsim qauv - engencered tsim, lawv tuaj yeem txhawb nqa cov qib siab heev.

Xa kev nug

Hauj lwm lawm

Khoom Taw Qhia

Flexirf's xaus tua cov txuas, muaj nyob rau hauv Sma, 2 {}} 92 hli, 2.4mm, yog tsim los ua kom tau raws li cov kev thov siab tshaj plaws hauv cov ntawv thov siab.

Cov kawg pib tshaj tawm cov kev ua haujlwm tshwj xeeb hluav taws xob investional incision, yog muaj peev xwm txhawb nqa ntau dua li 40, {{. 4mm counterparts tuaj yeem ncav cuag 50Qhia .} Lub ntsiab lus 1.85mm Cov ntsiab lus muaj kev ua tau zoo txog 67ghz, thiab 1.0mm, thiab cov txuas ntxiv 1.0MHz. Qhov no ua rau lawv zoo tagnrho rau kev siv hauv cov tshuab sib txuas lus siab, aerospace thiab kev tiv thaiv kev siv, thiab siab - ceev cov ntaub ntawv hloov chaw.

Khoom Lub Cev Lub Cev

Connector touless xaus pib rau PCB, Chaw Ps muaj lub taub 0 {}}} 3mm thiab 0 {} 51 hli. Cov txuas txuas no muaj lub cev dag zog tri-hlau lub cev thiab ua kom pom kev zoo heev nrog kev ua tau zoo heev nrog cov khoom siv txuas tsawg Tsim nrog cov ntaub ntawv siab - cov ntaub ntawv zoo, lawv cov qauv tsim thiab teeb pom kev zoo kuj ua rau lawv haum rau kev siv rau qhov chaw thiab qhov hnyav yog qhov tseem ceeb.

Daim Ntawv Thov Khoom

Xaus Tshaj Lij Tshaj Plaws Solderless Txuas Ntxiv Cov Ntawv Teev Tseg Ntau Hauv Lub Zog Hluav Taws Xob ntawm cov hom phiaj . Lawv lub peev xwm los txo cov kev xav ua kom lawv zoo tshaj plaws teeb liab kev txais tos thiab kev sib kis tau muaj vita.

Cov Lus Qhia Txog Cov Lus Nug

Yuav ua li cas daws cov kev teeb meem sib txuas thaum siv?

Thov xa email @Flexirf . com txog cov teeb meem nrog cov duab lossis daws teeb meem me me, peb yuav xa koj lub sijhawm tshiab yog tias muaj lub sijhawm tiv thaiv tshiab.

Cov Khoom Siv Khoom Tshwj Xeeb Cov ntaub ntawv

Kev teeb tsa
Connector Hom	SMA / 2.92mm / 2.4mm / 1.85mm
Txuas Impedance	50 OHMS
Connector Polarity	Lub hom phiaj
Txuas Mount Txujc	2 qhov flange
Connector 2 interface hom	0.30 hli / 0.51 hli pin
Txuas Txoj Kev	Tus neeg yus paub
Cov Ntaub Ntawv Cov Ntaub Ntawv
Chaw Hu Nkauj	Lub voos xwm txheej plated
Sib cuag sab nraud	Stainless hlau
Lub cev	Tooj dag trimetal plated
Dielectric	Peek / PTFE
Cov ntaub ntawv ib puag ncig
Qhov ntsuas kub ntau	{{0 {}}℃rau +165 degree
2011/65 / EU (ROHS)	Ua raws li

Khoom Yam

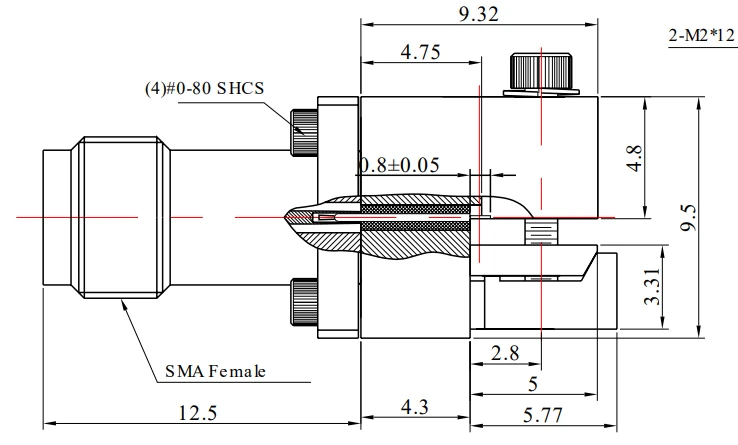

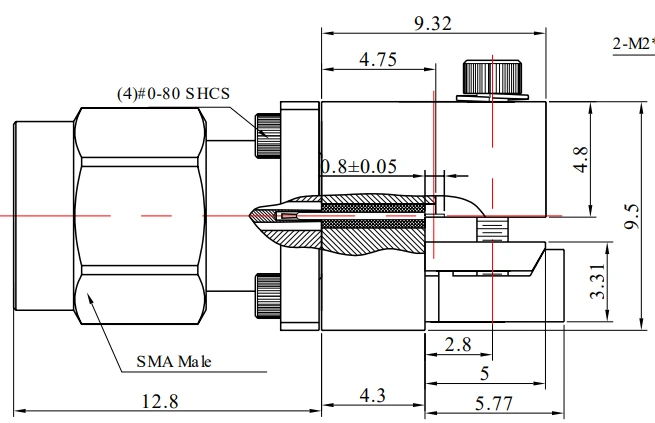

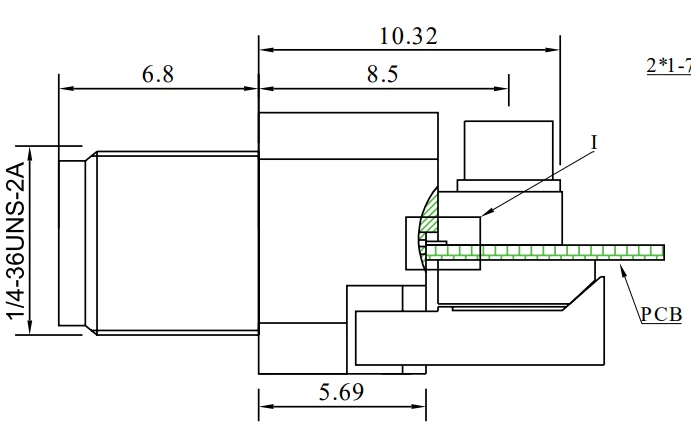

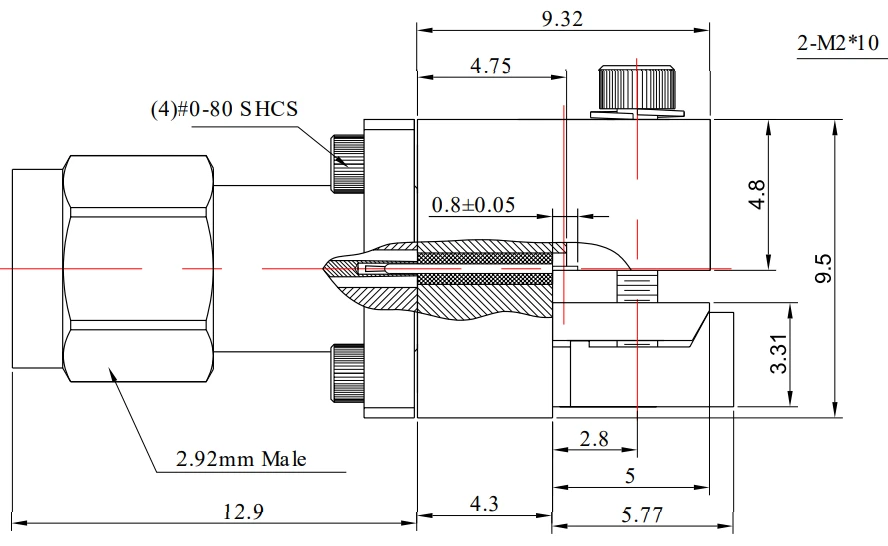

Connector Hom	Kev kos duab	Khaub cij	Tus pin taub	Hov ntau	Vwstr	Mounting Qhov Spacing

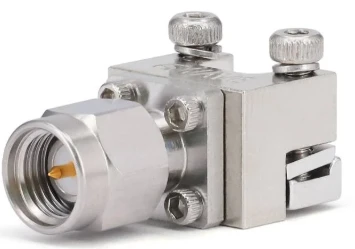

Sma		Fr 2- sma-kfd0830	0.30 hli	DC -26.5 ghz	1.25	9.5 hli
		Fr 2- sma-kfd0851	0.51mm	DC -26.5 ghz	1.25	9.5 hli
		Fr 2- sma-jfd0830	0.30 hli	DC -26.5 ghz	1.25	9.5 hli
		Fr 2- sma-jfd0851	0.51mm	DC -26.5 ghz	1.25	9.5 hli
Connector Hom	Kev kos duab	Khaub cij	Tus pin taub	Hov ntau	Vwstr	Mounting Qhov Spacing

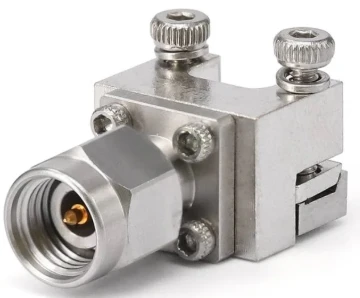

2.92mm		Fr 2-2.92- kfd0830	0.30 hli	DC -40 ghz	1.30	9.5 hli
		Fr 2-2.92- Kfd0851	0.51mm	DC -40 ghz	1.30	9.5 hli
		Fr 2-2.92- kfd0923	0.23 hli	DC -40 ghz	1.30	5.84mm
		Fr 2-2.92- jfd0830	0.30 hli	DC -40 ghz	1.30	9.5 hli
		Fr 2-2.92- jfd0851	0.51mm	DC -40 ghz	1.30	9.5 hli

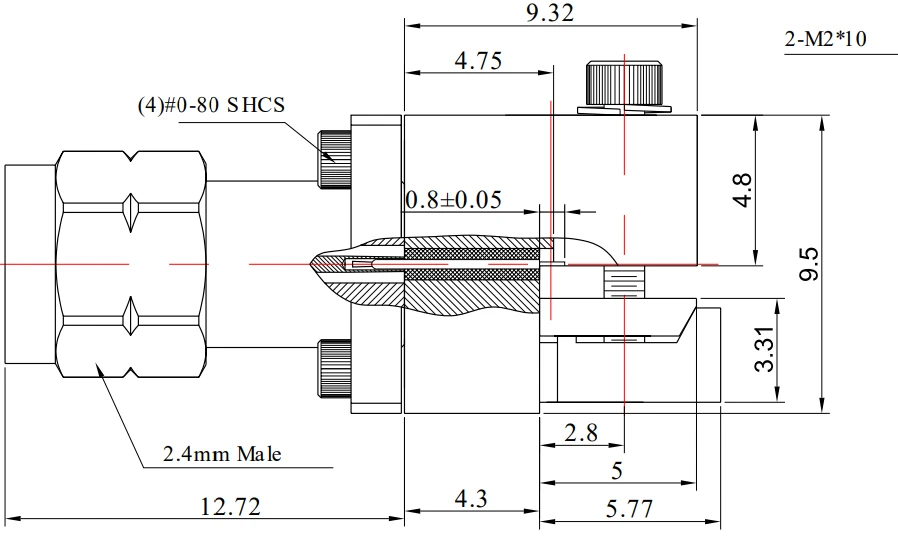

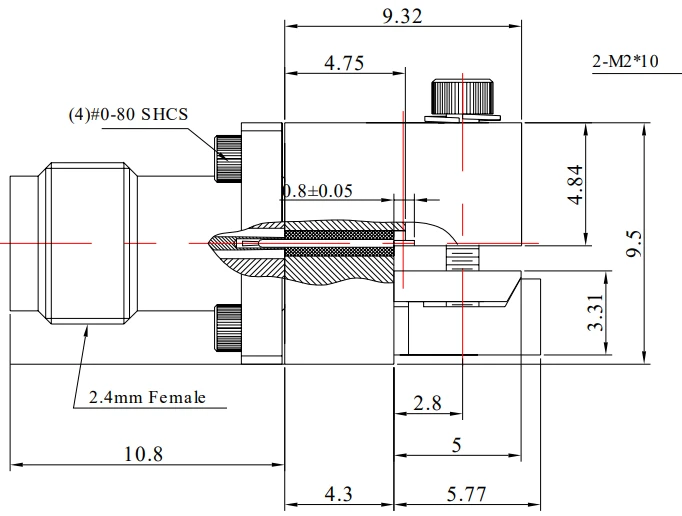

Connector Hom	Kev kos duab	Khaub cij	Tus pin taub	Hov ntau	Vwstr	Mounting Qhov Spacing
2.4mm		Fr 2-2.4- kfd0830	0.30 hli	DC -50 ghz	1.30	9.5 hli
		Fr 2-2.4- Kfd0851	0.51mm	DC -50 ghz	1.30	9.5 hli
		Fr 2-2.4- jfd0830	0.30 hli	DC -50 ghz	1.30	9.5 hli
		Fr 2-2.4- jfd0851	0.51mm	DC -50 ghz	1.30	9.5 hli
Connector Hom	Kev kos duab	Khaub cij	Tus pin taub	Hov ntau	Vwstr	Mounting Qhov Spacing
1.85 hli		Fr 2-1.85- kfd0830	0.30 hli	DC -65 ghz	1.35	9.5 hli
		Fr 2-1.85-- Kfd0851	0.51mm	DC -65 ghz	1.35	9.5 hli
		Fr 2-1.85- kfd0923	0.23 hli	DC -65 ghz	1.35	5.84mm
		Fr 2-1.85-- jfd0830	0.30 hli	DC -65 ghz	1.35	9.5 hli
		Fr 2-1.85-- jfd0851	0.51mm	DC -65 ghz	1.35	9.5 hli
