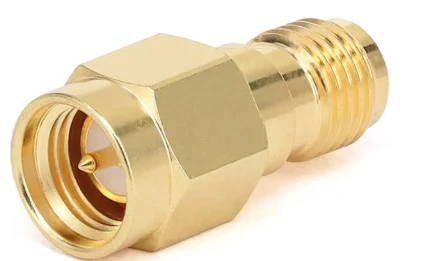

Sma Adapter
Cov SMA series coaxial rf adapters yog qhov dav tshaj plaws cov khoom siv tau mus txog li 6g, 18g thiab 26.5g rau cov khoom siv thov.
Hauj lwm lawm
Khoom Taw Qhia
Cov SMA series coaxial rf adapters yog qhov dav tshaj plaws cov khoom siv tau mus txog li 6g, 18g thiab 26.5g rau cov khoom siv thov.
Khoom Siv Khoom
Lub cev txuas ntxiv ntawm SMA txuas lub cev feem ntau yog ua rau tus neeg taug kev sab hauv thiab cov paib hauv hluav taws xob hauv lub teeb meem hluav taws xob sab hauv, yog li ua kom muaj kev ruaj ntseg thiab kev ncaj ncees ntawm lub teeb liab Kis .
Khoom Lub Cev Lub Cev
SMA txuas muaj nyob rau hauv ntau cov ntaub ntawv, suav nrog hom ncaj, txoj cai ncaj, thiab lub tshuab nqus tsev mount hom .
Cov Lus Qhia Txog Cov Lus Nug
Cov Khoom Siv Khoom Tshwj Xeeb Cov ntaub ntawv
|
Kev teeb tsa |
|
|
Connector 1 Hom |
Sma |
|
Connector 1 impedance |
50 OHMS |
|
Connector 1 Polarity |
Lub hom phiaj |
|
Connector 2 hom |
Sma / GPPO / GPO / GPO / 2.4mm / 2.92mm / 2.5mm / N / BNC / BNC / SSM / SSM / IPC / APC / SSM / SSM / SSM / SSMER |
|
Connector 2 impedance |
50 OHMS |
|
Connector 2 Polarity |
Lub hom phiaj |
|
Txuas Mount Txujc |
Tsis muaj |
|
Adapter Lub cev Style |
Ncaj / 4 qhov Flange / Bulkhead Moos / Txoj Hmoo Xam / |
|
Cov Ntaub Ntawv Cov Ntaub Ntawv |
|
|
Chaw Hu Nkauj |
Lub voos xwm txheej plated |
|
Sib cuag sab nraud |
Brass Kub Plated / Stainless Hlau |
|
Lub cev |
Brass Kub Plated / Stainless Hlau |
|
Dielectric |
PTI / PTFE / iav |
|
Cov ntaub ntawv ib puag ncig |
|
|
Qhov ntsuas kub ntau |
{{0 {}}℃rau +165 degree |
|
2011/65 / EU (ROHS) |
Ua raws li |
SMA Adapter Hom
|
SMA RF Adapter |
|||||
|
Khaub cij |
Kev kos duab |
Hov ntau |
Vwstr |
Cov lus piav qhia |
|
|
Fr 1- sma-jjs |
|
|
DC -18 ghz |
1.15 |

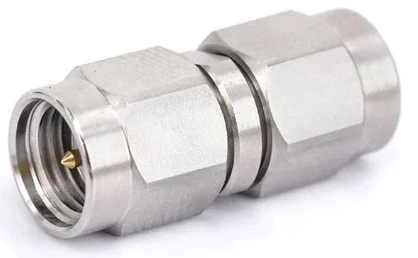

Sma txiv neej rau sma txiv neej |
|
Fr 1- sma-kks |
|
|
DC -18 ghz |
1.15 |

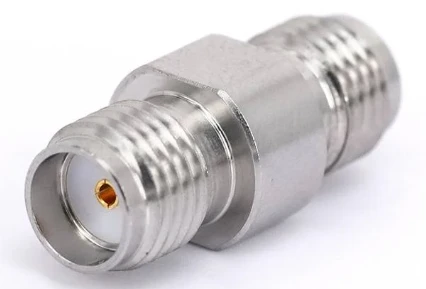

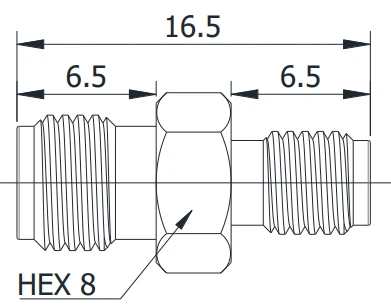

Sma poj niam rau sma poj niam |
|
Fr 1- sma-jks |
|
|
DC -18 ghz |
1.15 |
Sma txiv neej rau sma poj niam |
|
Fr 1- sma-kfkg -1 |
|
|
DC -18 ghz |
1.15 |

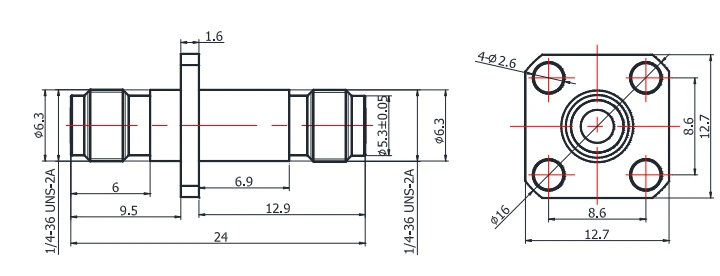

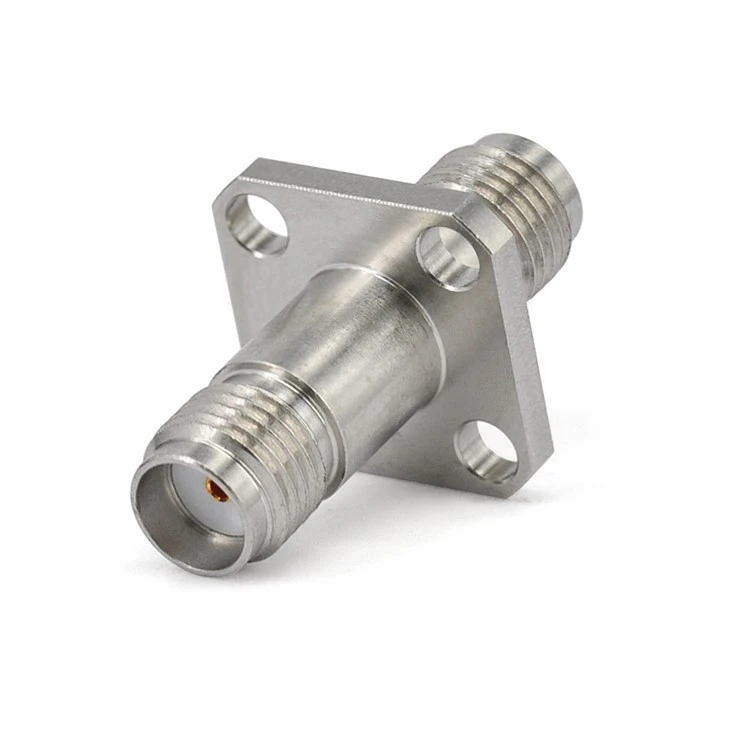

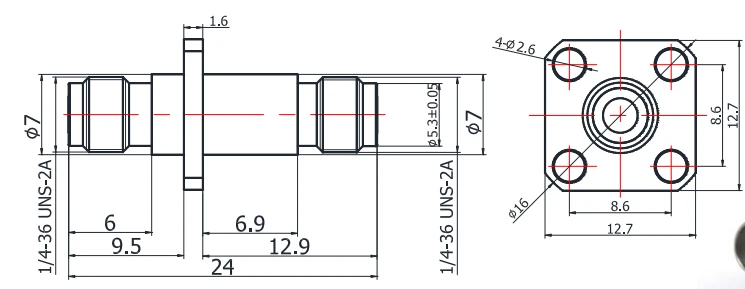

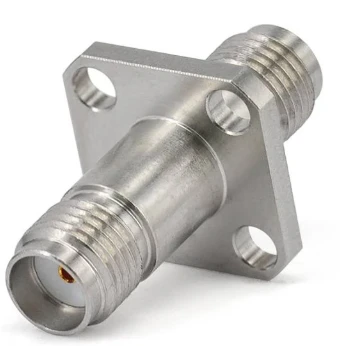

Sma poj niam rau sma poj niam nrog 4 lub qhov flange |
|
Fr 1- sma-kfkg |
|
|
DC -26.5 ghz |
1.15 |
Sma poj niam rau sma poj niam nrog 4 lub qhov flange |
|
Fr 1- sma-kykg -1 |
|
|
DC -26.5 ghz |
1.25 |
Sma poj niam rau sma poj niam nrog begenhead mount |
|
Fr 1- sma-jfkg |
|
|
DC -18 ghz |
1.20 |

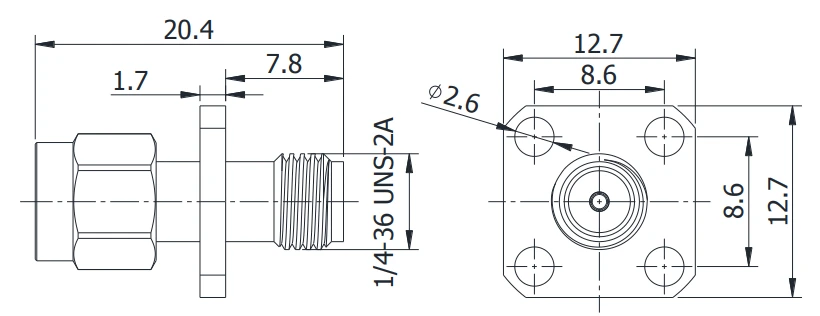

Sma txiv neej rau sma poj niam nrog 4 lub qhov flange |
|
Fr 1- sma-jwjs -18 g |
|
|
DC -18 ghz |
1.25 |
Sma txiv neej rau sma txiv neej nrog txoj cai |
|
Fr 1- sma-kwks -18 g |
|
|
DC -18 ghz |
1.25 |
Sma poj niam rau sma poj niam nrog txoj cai |
|
Fr 1- sma-jwks -18 g |
|
|
DC -18 ghz |
1.25 |
Sma txiv neej rau sma poj niam nrog txoj cai |
|

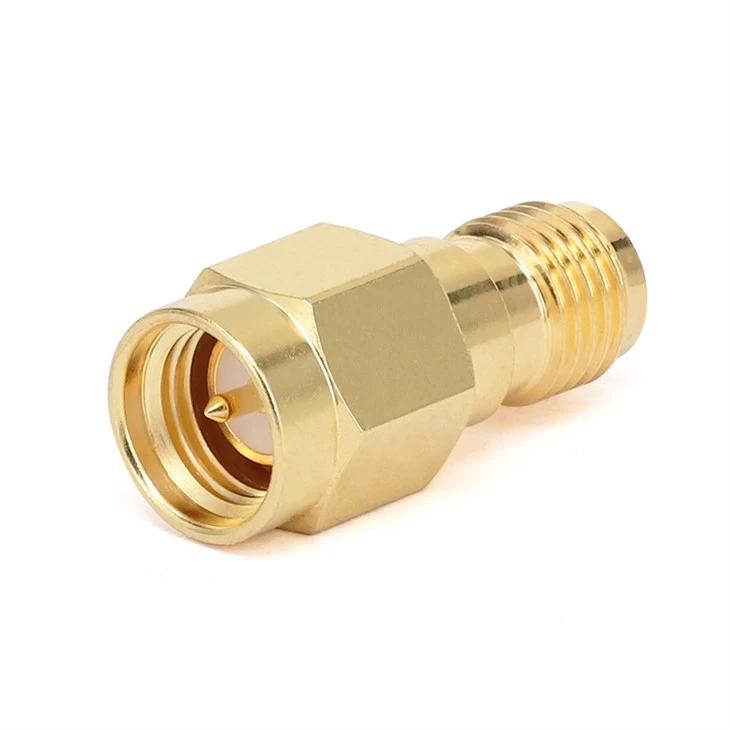

Fr 1- sma-jk |
|
|
DC -18 ghz |
1.25 |
Sma txiv neej rau sma poj niam |
|
Fr 1- sma-kk-e |
|
|
DC -18 ghz |
1.25 |
Sma poj niam rau sma poj niam |
|
Fr 1- sma-kk1 |
|
|
DC -18 ghz |
1.25 |
Sma poj niam rau sma poj niam |
|

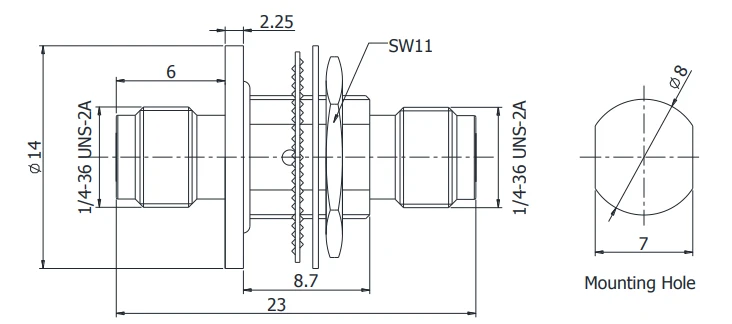

Fr 1- sma-kyk1 |
|
|
DC -18 ghz |
1.25 |

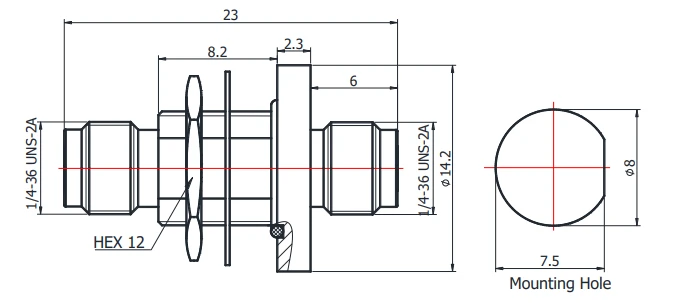

Sma poj niam rau sma poj niam nrog begenhead mount |
|
Fr 1- Smam-Kyk |
|
|
DC -18 ghz |
1.35 |
Sma poj niam rau sma poj niam nrog begenhead mount thiab lub tshuab nqus tsev nruj |
|
Fr 1- qsma / sma-jks |
|
|
DC -18 ghz |
1.25 |

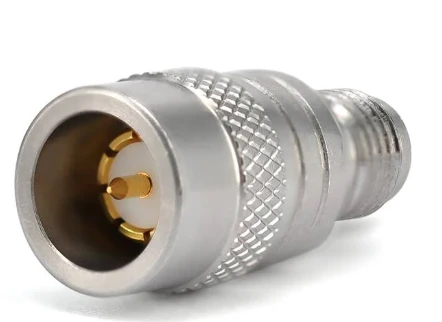

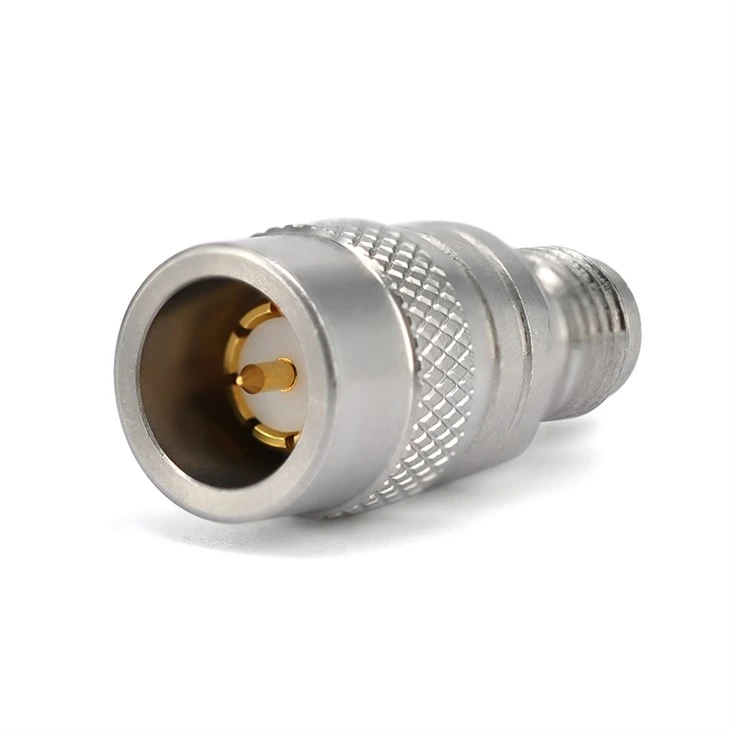

SMA ceev SMA txiv neej rau sma poj niam |
|

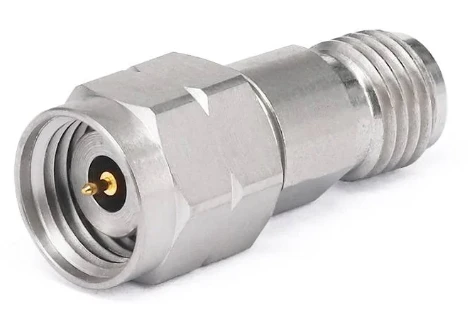

SMA rau 2.4MM RF Adapter |
|||||
|
Khaub cij |
Kev kos duab |
Sequency |
Vwstr |
Cov lus piav qhia |
|
|

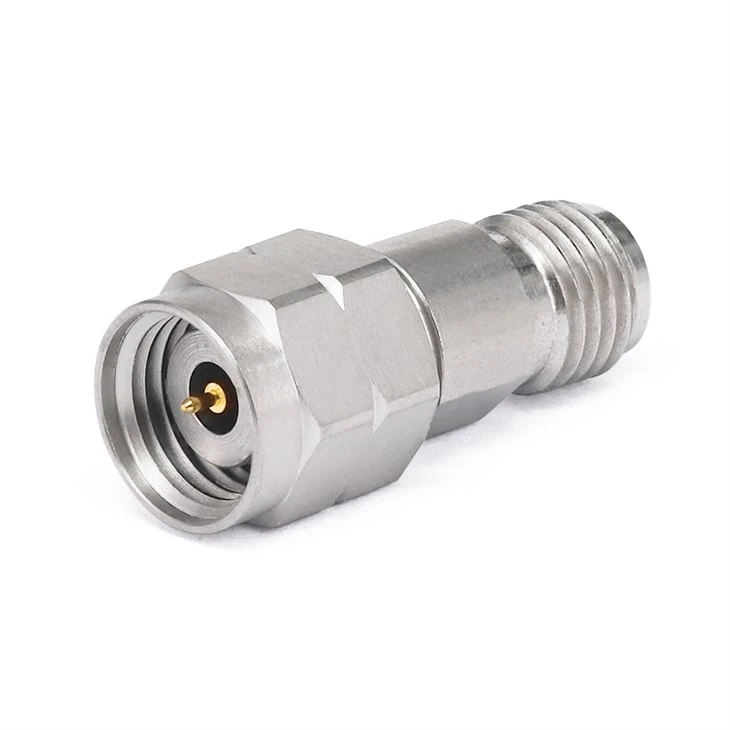

Fr 1- sma / 2.4- kjs |
|
|
DC -26.5 ghz |
1.15 |
Sma poj niam rau 2.4 hli txiv neej |
|

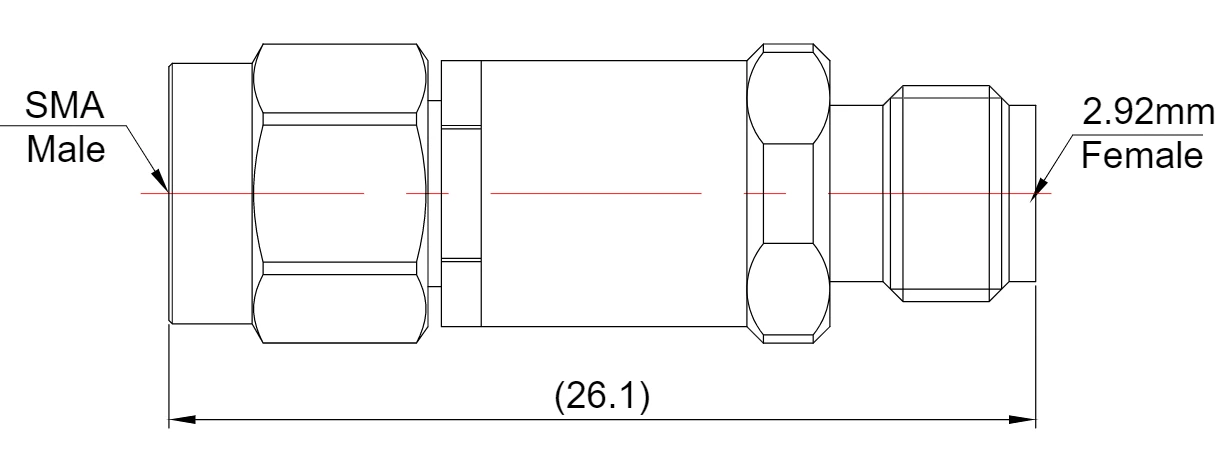

SMA rau 2.92mmRf adapter |
|||||
|
Khaub cij |
Kev kos duab |
Hov ntau |
Vwstr |
Cov lus piav qhia |
|
|

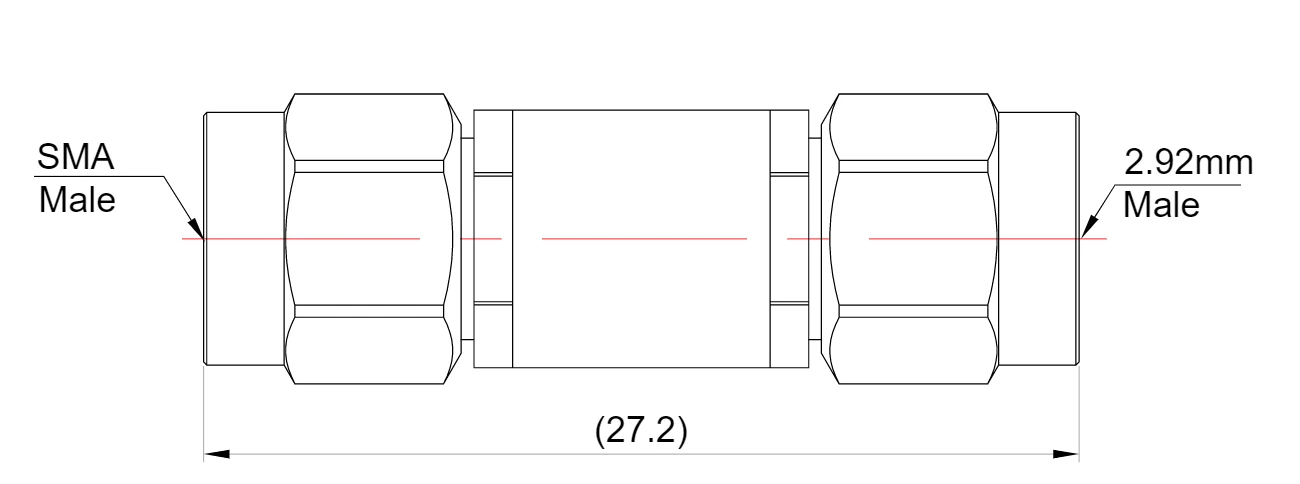

Fr 1- sma / 2.92- pas |
|
|
DC -18 ghz |
1.15 |
SMA txiv neej rau 2.92 hli txiv neej |
|

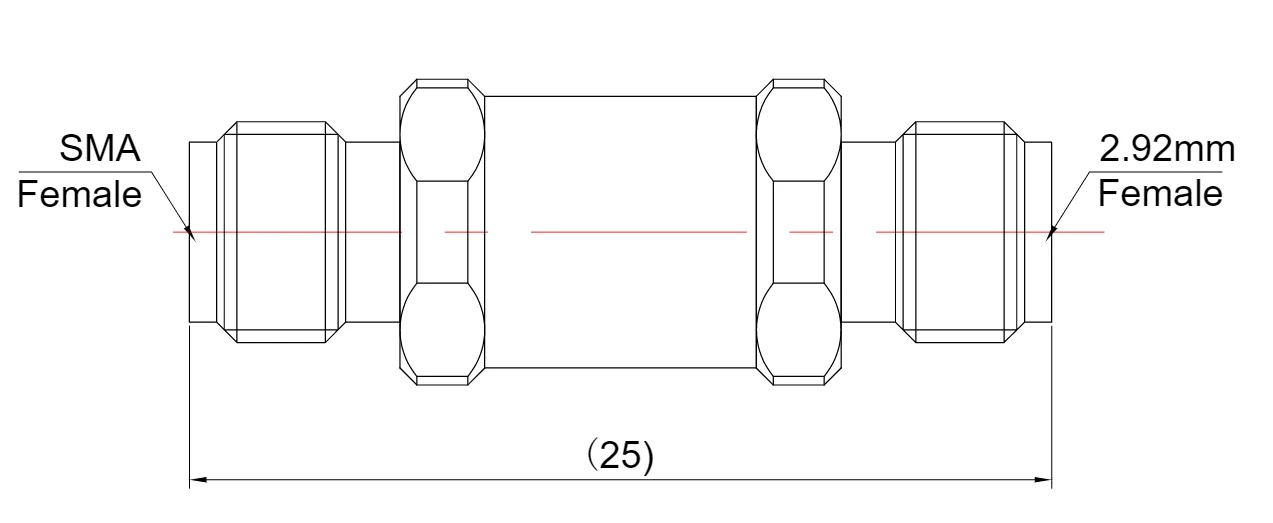

Fr 1- sma / 2.92- kks |
|
|
DC -18 ghz |
1.15 |
Sma poj niam rau 2.92 hli poj niam |
|
Fr 1- sma / 2.92- jks |
|
|
DC -18 ghz |
1.15 |
SMA txiv neej rau 2.92mm Poj Niam |
|
Fr 1- sma / 2.92- kjs |
|
|
DC -18 ghz |
1.15 |

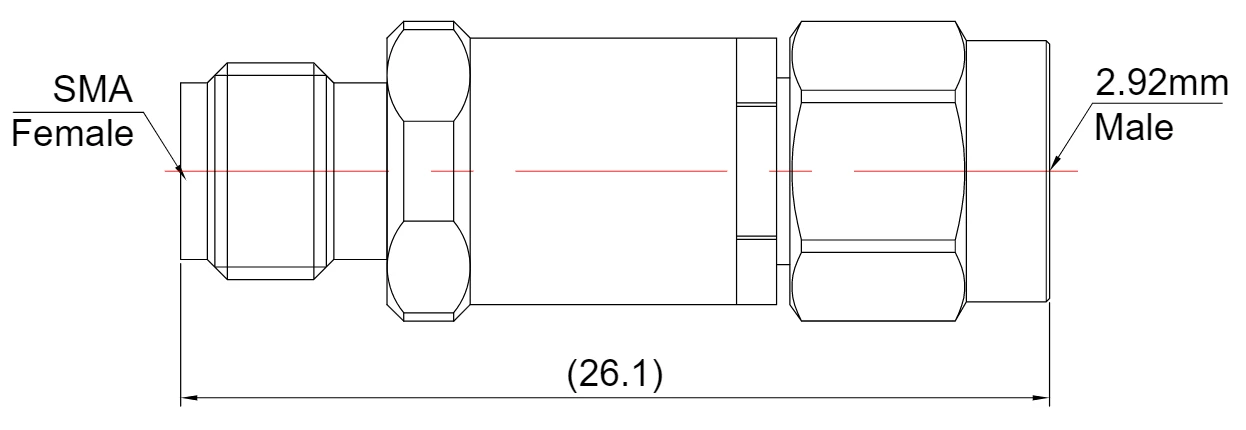

Sma poj niam rau 2.92 hli txiv neej |
|

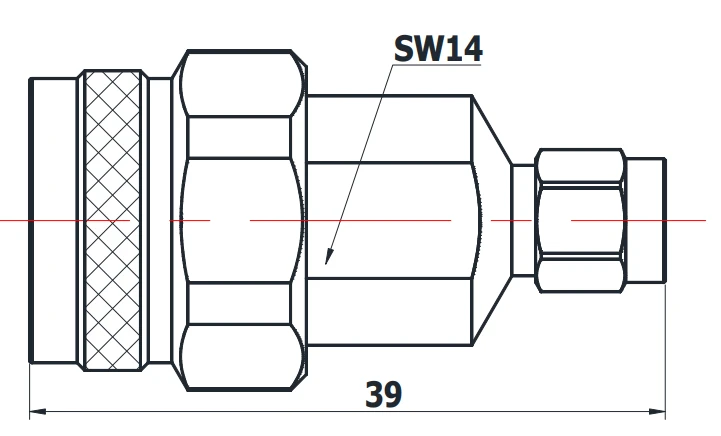

Sma rau n rf adapter |
|||||
|
Khaub cij |
Kev kos duab |
Hov ntau |
Vwstr |
Cov lus piav qhia |
|
|

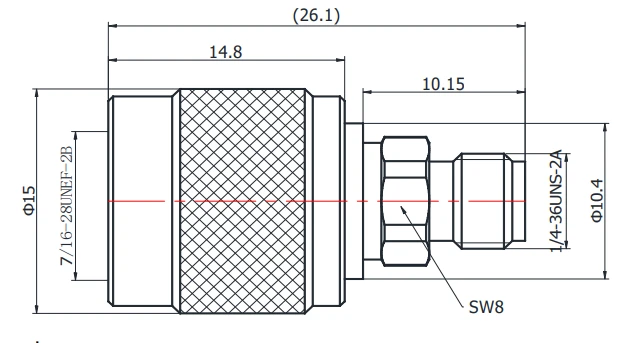

Fr 1- n / sma-jjs |
|
|
DC -18 ghz |
1.15 |
N txiv neej rau sma txiv neej |
|
Fr 1- n / sma-kks |
|
|
DC -18 ghz |
1.15 |
N poj niam rau sma poj niam |
|
Fr 1- n / sma-jks |
|
|
DC -18 ghz |
1.15 |

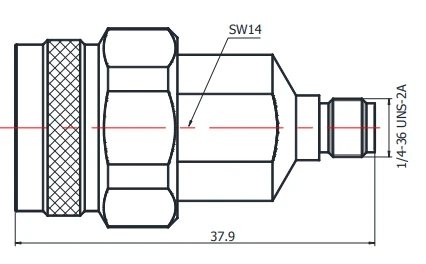

N txiv neej rau sma poj niam |
|
Fr 1- n / sma-kjs |
|
|
DC -18 ghz |
1.15 |
N poj niam rau sma txiv neej |
|
Fr 1- n / sma-kykg |
|
|
DC -18 ghz |
1.15 |

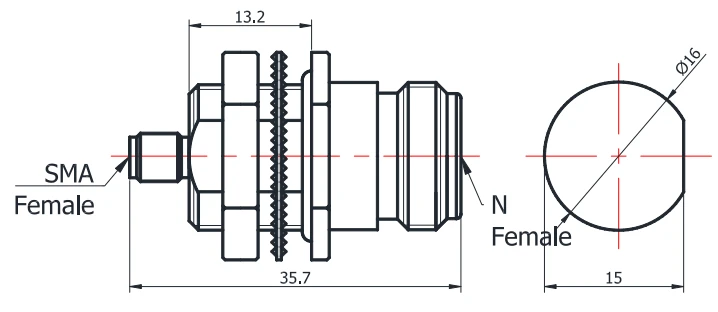

N poj niam rau sma poj niam nrog begenhead mount |
|
Fr 1- n / sma-kfkg |
|
|
DC -18 ghz |
1.15 |

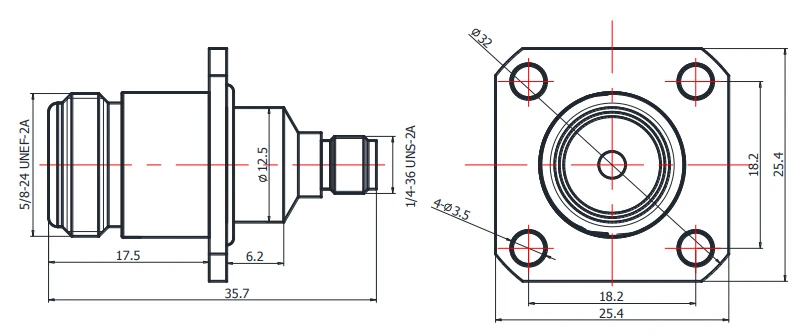

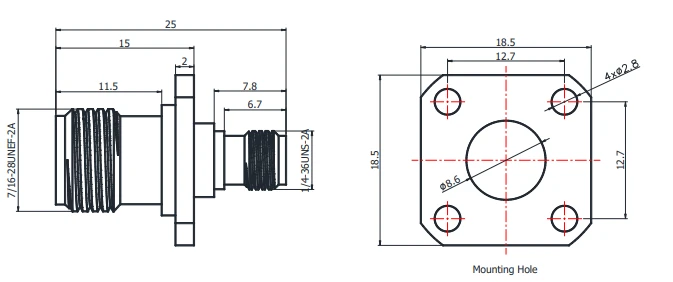

N poj niam rau sma poj niam nrog 4 lub qhov flange |
|

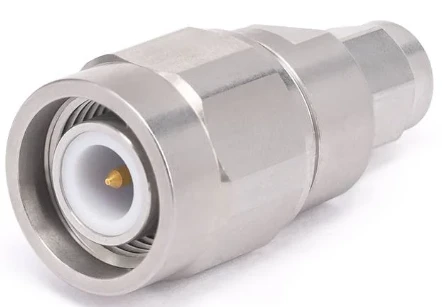

SMA to TNC RF Adapter |
|||||
|
Khaub cij |
Kev kos duab |
Hov ntau |
Vwstr |
Cov lus piav qhia |
|
|
Fr 1- tnc / sma-jjs |
|
|
DC -18 ghz |
1.25 |
TCC tus txiv neej rau SMA txiv neej |
|
Fr 1- tnc / sma-kks |
|
|
DC -18 ghz |
1.25 |

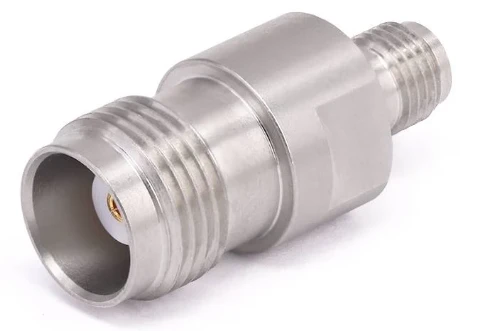

TNC poj niam rau sma poj niam |
|
Fr 1- tnc / sma-jks |
|
|
DC -18 ghz |
1.25 |
TCC tus txiv neej rau sma poj niam |
|

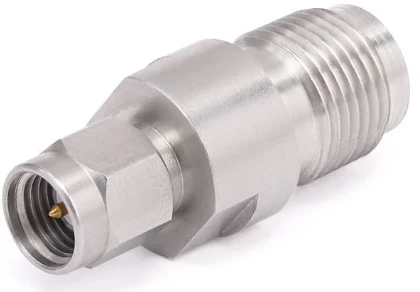

Fr 1- tnc / sma-kjs |
|
|
DC -18 ghz |
1.25 |
TNC poj niam rau sma txiv neej |
|
Fr 1- tnc / sma-jj |
|
|
DC -3 ghz |
1.25 |
TCC tus txiv neej rau SMA txiv neej |
|
Fr 1- tnc / sma-kk |
|
|
DC -3 ghz |
1.25 |
TNC poj niam rau sma poj niam |
|
Fr 1- tnc / sma-jk |
|
|
DC -3 ghz |
1.25 |
TCC tus txiv neej rau sma poj niam |
|
Ntshiab -1- tnc / sma-kj |
|
|
DC -3 ghz |
1.25 |
TNC poj niam rau sma txiv neej |
|

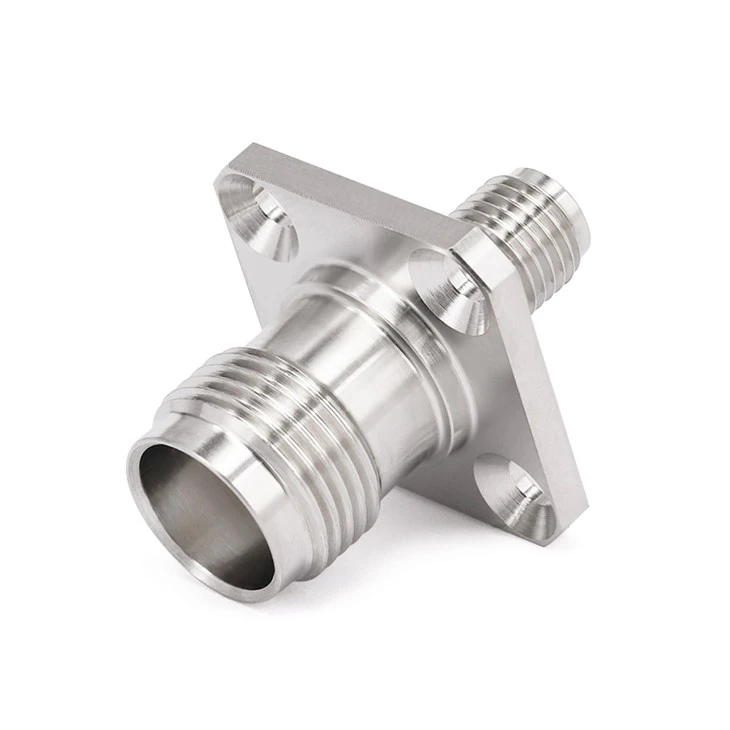

Fr 1- tnc / sma-kfk1 |
|
|
DC -4 ghz |
1.25 |
TNC poj niam rau sma poj niam nrog 4 lub qhov flange |
|
SMA rau BNC RF Adapter |
|||||
|
Khaub cij |
Kev kos duab |
Hov ntau |
Vwstr |
Cov lus piav qhia |
|
|
Fr 1- bnc / sma-jjs |
|
|
DC -18 ghz |
1.15 |
BNC tus txiv neej rau SMA txiv neej |
|
Fr 1- bnc / sma-kks |
|
|
DC -18 ghz |
1.15 |
BNC poj niam rau sma poj niam |
|
Fr 1- bnc / sma-jks |
|
|
DC -18 ghz |
1.15 |
BNC tus txiv neej rau sma poj niam |
|
Fr 1- bnc / sma-kjs |
|
|
DC -18 ghz |
1.15 |
BNC poj niam rau SMA txiv neej |
|
SMA rau GPPO (Mini-SMP) RF Adapter |
|||||
|
Khaub cij |
Kev kos duab |
Hov ntau |
Vwstr |
Cov lus piav qhia |
|
|
Fr 1- sma / gppo-jj |
|
|
DC -18 ghz |
1.20 |
Sma txiv neej rau gppo txiv neej |
|
Fr 1- sma / gppo-kk |
|
|
DC -18 ghz |
1.20 |
Sma poj niam rau gpload poj niam |
|
Fr 1- sma / gppo-jk |
|
|
DC -18 ghz |
1.20 |
Sma txiv neej rau gppo poj niam |
|
Ntshiab -1- sma / gppo-kj |
|
|
DC -18 ghz |
1.20 |
Sma poj niam rau gppo txiv neej |
|

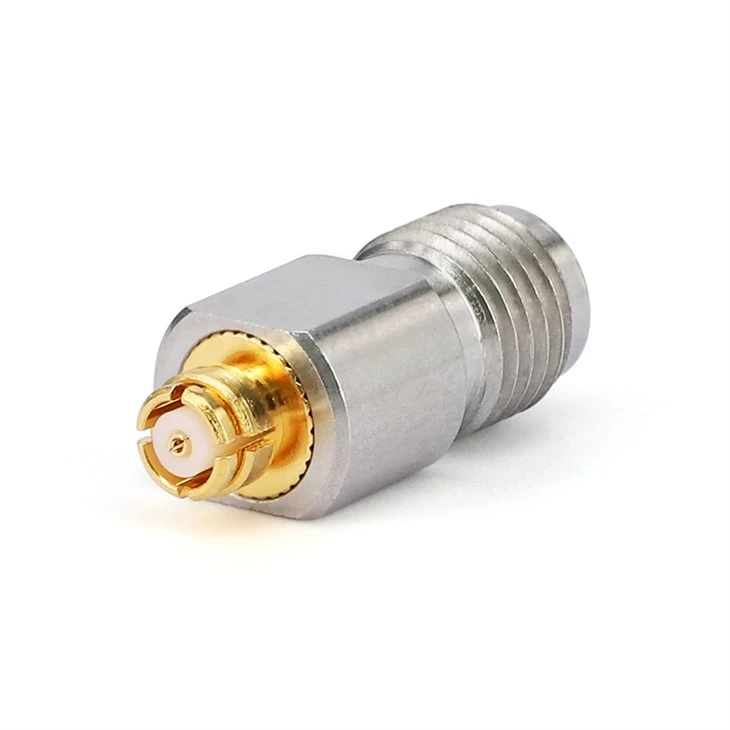

SMA rau GPO (SMP) RF Adapter |
|||||
|
Khaub cij |
Kev kos duab |
Hov ntau |
Vwstr |
Cov lus piav qhia |
|
|
Ntshav Fr 1- sma / gpo-jj |
|
|
DC -18 ghz |
1.20 |
SMA txiv neej rau GBO txiv neej |
|
Ntshiab ... 0}} sma / gpo-kk |
|
|
DC -18 ghz |
1.20 |
Sma poj niam rau gboard poj niam |
|
Ntshiab no1- sma / gpo-jk |
|
|
DC -18 ghz |
1.20 |
Sma txiv neej rau GPO poj niam |
|
S 1- sma / gpo-kj |
|
|
DC -18 ghz |
1.20 |
Sma poj niam rau gpo txiv neej |
|
Sma to ssma rf adapter |
|||||
|
Khaub cij |
Kev kos duab |
Hov ntau |
Vwstr |
Cov lus piav qhia |
|
|
Fr 1- sma / ssma-jj |
|
|
DC -27 ghz |
1.25 |
Sma txiv neej rau ssma txiv neej |
|
Fr 1- sma / ssma-kk |
|
|
DC -6 ghz |
1.25 |
Sma poj niam to ssma poj niam |
|
Fr 1- sma / ssma-jk |
|
|
DC -18 ghz |
1.25 |
Sma txiv neej rau ssma poj niam |
|
Fr 1- sma / ssma-kj |
|
|
DC -18 ghz |
1.25 |
Sma poj niam rau ssma txiv neej |
|
SMA rau SSMC RF Adapter |
|||||
|
Khaub cij |
Kev kos duab |
Hov ntau |
Vwstr |
Cov lus piav qhia |
|
|
Fr 1- sma / ssmc-jj |
|
|
DC -6 ghz |
1.20 |
Sma txiv neej rau ssmc txiv neej |
|
Fr 1- sma / ssmc-kk |
|
|
DC -6 ghz |
1.20 |
Sma poj niam rau ssmc poj niam |
|
Fr 1- sma / ssmc-jk |
|
|
DC -6 ghz |
1.20 |
Sma txiv neej rau ssmc poj niam |
|
Fr 1- sma / ssmc-kj |
|
|
DC -6 ghz |
1.20 |
Sma poj niam rau ssmc txiv neej |
|
SMA rau MCX RF Adapter |
|||||
|
Khaub cij |
Kev kos duab |
Hov ntau |
Vwstr |
Cov lus piav qhia |
|
|
Fr 1- sma / mmcx-jj |
|
|
DC -6 ghz |
1.20 |
SMA tus txiv neej rau MMCX txiv neej |
|
Fr 1- sma / mmcx-kk |
|
|
DC -6 ghz |
1.20 |
Sma poj niam rau mmcx poj niam |
|
Fr 1- sma / mmcx-jk |
|
|
DC -6 ghz |
1.20 |
SMA txiv neej rau MMCX Poj Niam |
|
Fr 1- sma / mmcx-kj |
|
|
DC -6 ghz |
1.20 |

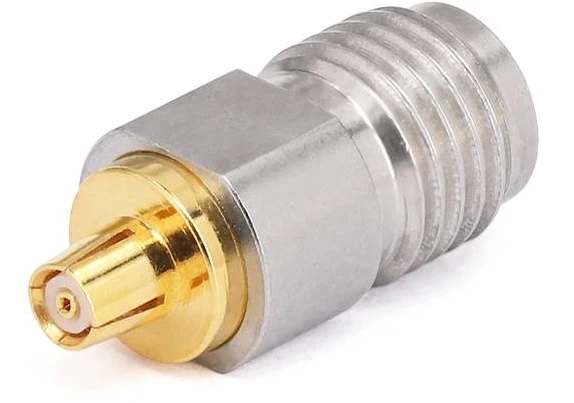

Sma poj niam rau MMCX txiv neej |
|
SMA rau IPEX RF Adapter |
|||||
|
Khaub cij |
Kev kos duab |
Hov ntau |
Vwstr |
Cov lus piav qhia |
|
|
Fr 1- sma / ip 1- pa |
|
|
DC -6 ghz |
1.35 |

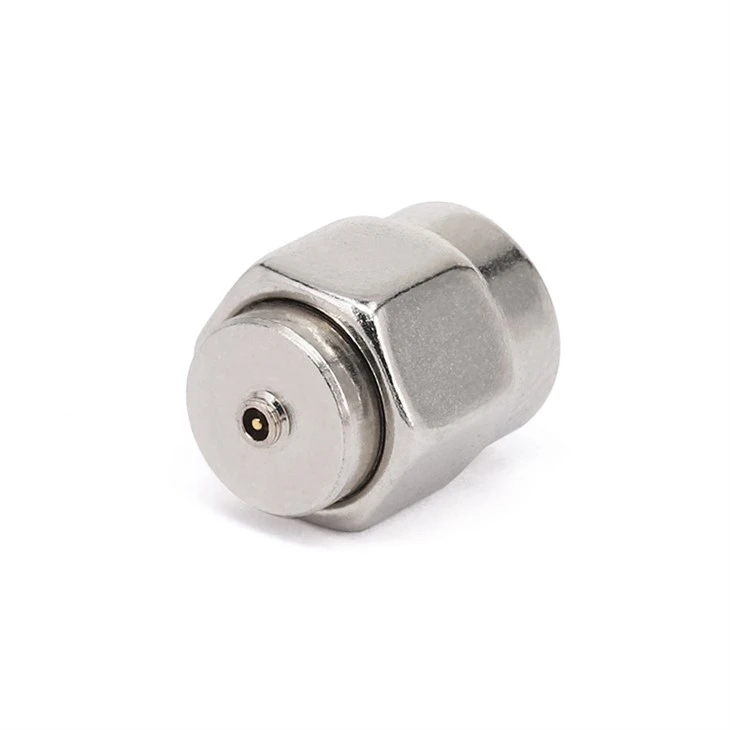

Sma txiv neej rau IPX1 txiv neej |
|
Fr 1- sma / IPX 1- kks |
|
|
DC -6 ghz |
1.20 |
SMA tus txiv neej rau IPX1 Poj Niam |
|

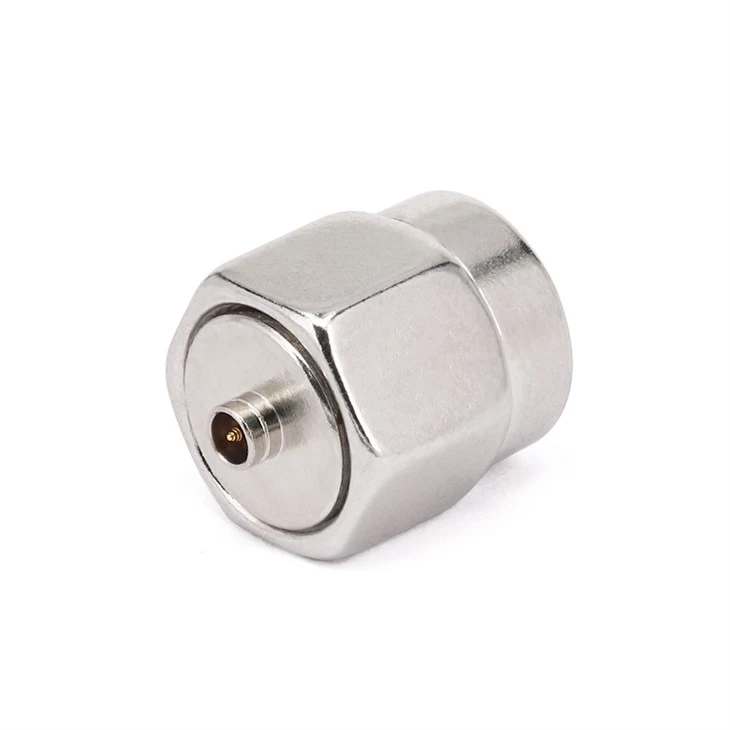

Fr 1- sma / ip 4- pa |
|
|
DC -6 ghz |
1.35 |
Sma txiv neej mus rau IPX4 txiv neej |
