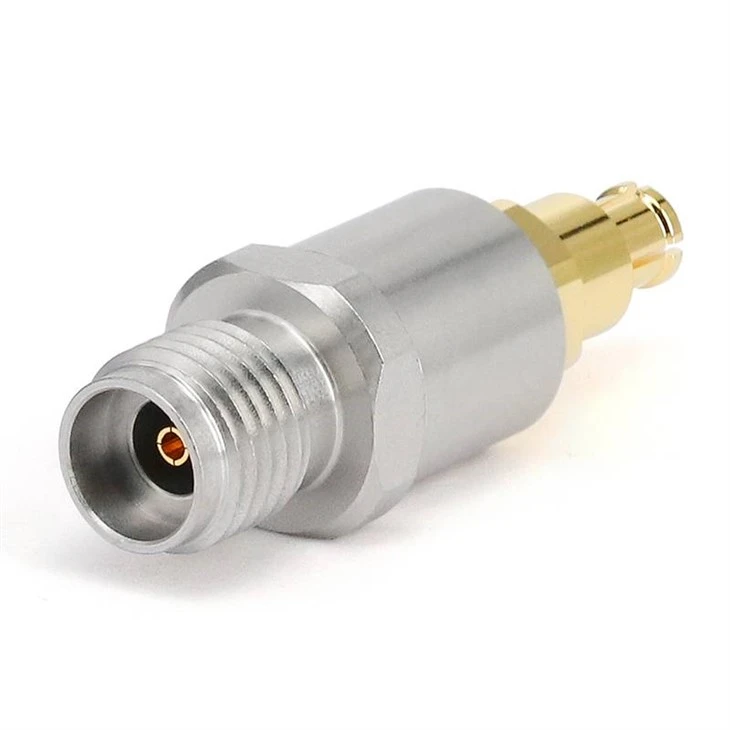

GBO SMP Adapter
SMP lossis GPO Adapters yog paub rau lawv qhov hnyav me me thiab ua kom zoo tshaj plaws rau cov ntawv thov, xws li hauv cov chaw sib txuas lus hluav taws xob thiab cov me me RF modules .
Hauj lwm lawm
Khoom Taw Qhia
SMP lossis GPO Adapters yog paub rau lawv qhov hnyav me me thiab ua kom zoo tshaj plaws rau cov ntawv thov, xws li hauv cov chaw sib txuas lus hluav taws xob thiab cov me me RF modules .
Hauv kev ua yeeb yam hluav taws xob, SMP hloov kho tau zoo heev li cas, thiab satellite sib txuas lus {6} txhais tau tias lub teeb liab lub zog poob thaum muaj kev sib kis tau qhov no tsawg.
Daim Ntawv Thov Khoom
Vim yog lawv qhov loj me thiab kev ua tau zoo, kev hloov kho ntawm Grounders, thiab lub tshuab radar, pawg thawj coj mus rau board connector .
Lawv pab tsim kom muaj kev sib txuas sib txuas hauv qhov chaw muaj qee yam thiab cov mob hnyav ntawm cov dav hlau thiab cov dav hlau .
Cov Lus Qhia Txog Cov Lus Nug
Cov Khoom Siv Khoom Tshwj Xeeb Cov ntaub ntawv
|
Kev teeb tsa |
|
|
Connector 1 Hom |
GPO (SMP) |
|
Connector 1 impedance |
50 OHMS |
|
Connector 1 Polarity |
Lub hom phiaj |
|
Connector 2 hom |
GPO (SMP) / SMA / 3.5mm / 2.92mm |
|
Connector 2 impedance |
50 OHMS |
|
Connector 2 Polarity |
Lub hom phiaj |
|
Txuas Mount Txujc |
Tsis muaj |
|
Adapter Lub cev Style |
Ncaj |
|
Cov Ntaub Ntawv Cov Ntaub Ntawv |
|
|
Chaw Hu Nkauj |
Lub voos xwm txheej plated |
|
Sib cuag sab nraud |
Lub voos xwm txheej & stainless hlau |
|
Lub cev |
Stainless hlau |
|
Dielectric |
PTI / PTFE |
|
Cov ntaub ntawv ib puag ncig |
|
|
Qhov ntsuas kub ntau |
{{0 {}}℃rau +165 degree |
|
2011/65 / EU (ROHS) |
Ua raws li |
Khoom Yam
|
GPO (SMP) RF Adapter |
|||||
|
Khaub cij |
Kev kos duab |
Hov ntau |
Vwstr |
Cov lus piav qhia |
|
|
Fr 1- gpo-kk7 |
|
|
DC -18 ghz |
1.25 |
GPO (SMP) Poj niam rau GPO (SMP) Poj Niam |
|

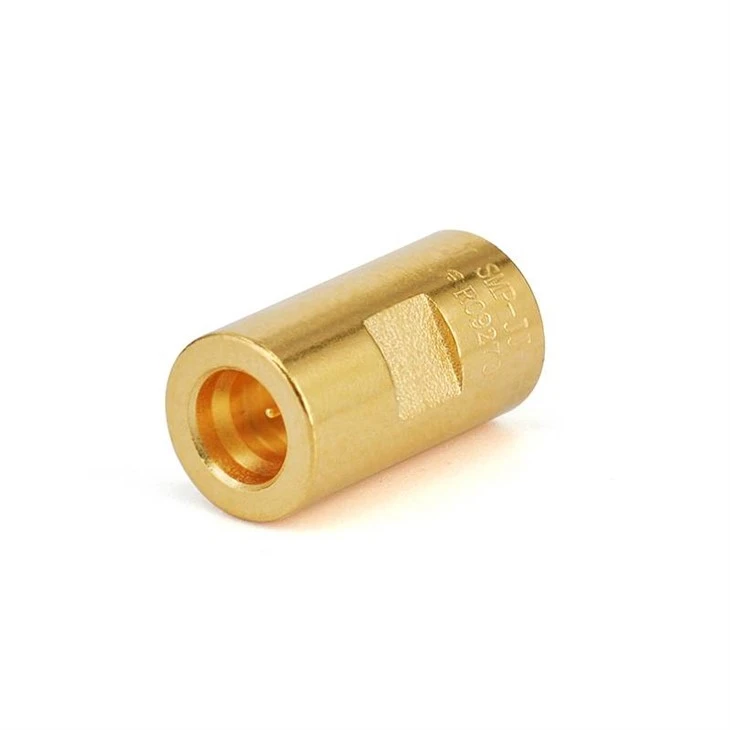

Fr 1- gpo-jj |
|
|
DC -18 ghz |
1.25 |
GPO (SMP) Txiv neej rau GPO (SMP) Txiv neej |
|
2.4mm rau gpo (SMP) RF Adapter |
|||||
|
Khaub cij |
Kev kos duab |
Hov ntau |
Vwstr |
Cov lus piav qhia |
|
|
Ntshav Fr 1-2.4 / gpo-jj |
|
|
DC -40 ghz |
1.25 |
2.4mm txiv neej rau gpo (SMP) txiv neej |
|
Ntshiab ...1-2.4 / gpo-kk |
|
|
DC -40 ghz |
1.25 |
2.4mm poj niam rau gpo (SMP) Poj niam |
|
Ntshiab no1-2.4 / gpo-jk |
|
|
DC -40 ghz |
1.25 |
2.4 hli txiv neej rau gpo (SMP) Poj niam |
|
S 1-2.4 / gpo-kj |
|
|
DC -40 ghz |
1.25 |
2.4mm poj niam rau gpo (SMP) txiv neej |
|
2.92mm rau GPO (SMP) RF Adapter |
|||||
|
Khaub cij |
Kev kos duab |
Hov ntau |
Vwstr |
Cov lus piav qhia |
|
|

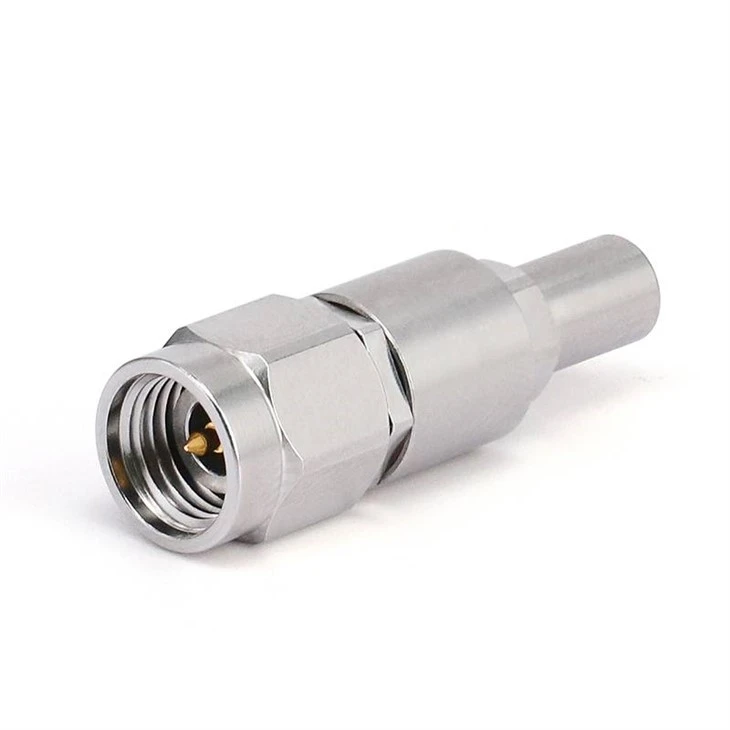

Ntshav Fr 1-2.92 / gpo-jj |
|
|
DC -40 ghz |
1.25 |
2.92mm txiv neej rau gpo (SMP) txiv neej |
|
Ntshiab ...1-2.92 / gpo-kk |
|
|
DC -40 ghz |
1.25 |
2.92mm Poj Niam Rau GPO (SMP) Poj Niam |
|
Ntshiab no1-2.92 / gpo-jk |
|
|
DC -40 ghz |
1.25 |
2.92mm txiv neej rau gpo (SMP) Poj niam |
|
S 1-2.92 / gpo-kj |
|
|
DC -40 ghz |
1.25 |
2.92mm poj niam rau gpo (SMP) txiv neej |
|
Ntshav Fr 1-2.92 / gpks-kfks-a |
|
|
DC -40 ghz |
1.35 |

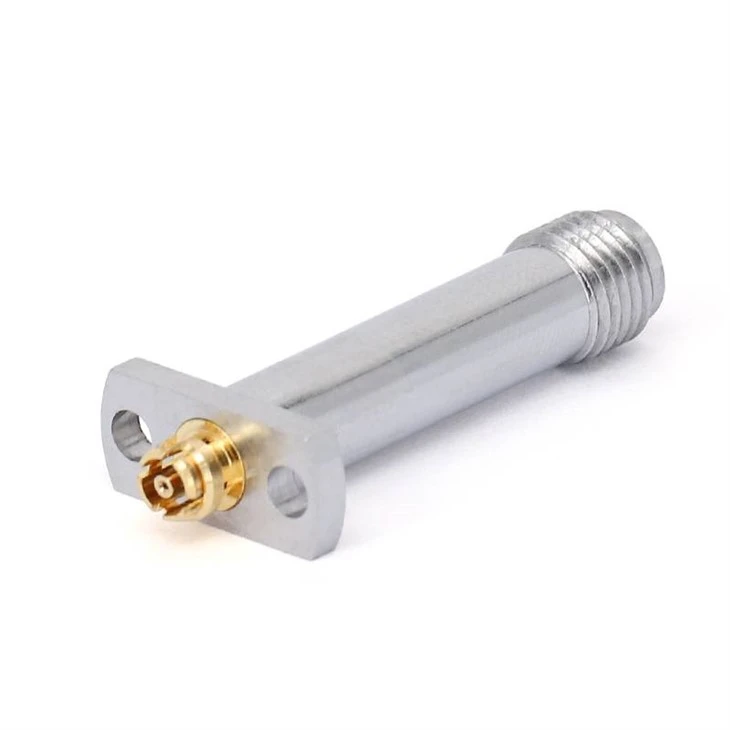

2.92mm Poj Niam Rau GPO (SMP) Poj Niam Adapter Nrog 2 Qhov Flange |
|
SMA rau GPO (SMP) RF Adapter |
|||||
|
Khaub cij |
Kev kos duab |
Hov ntau |
Vwstr |
Cov lus piav qhia |
|
|

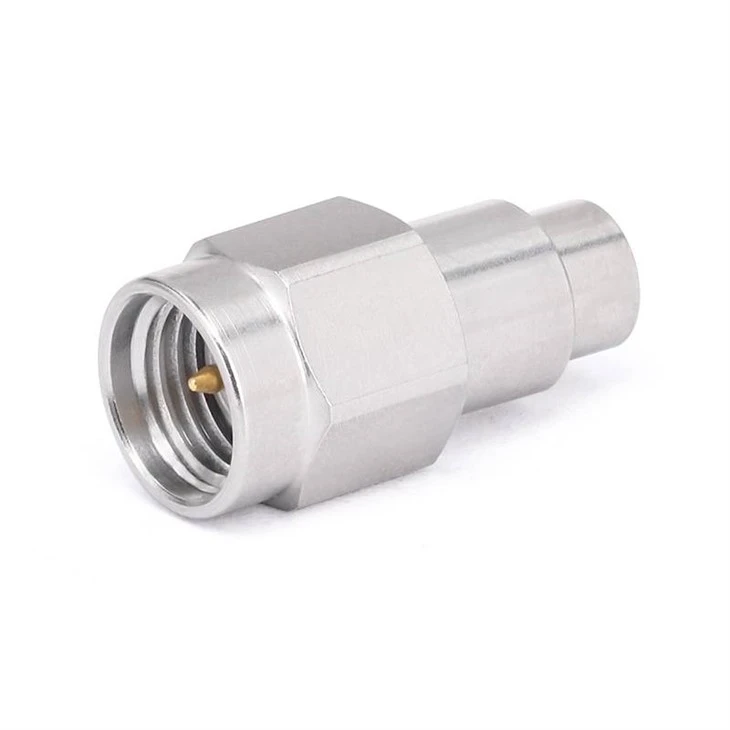

Ntshav Fr 1- sma / gpo-jj |
|
|
DC -18 ghz |
1.20 |
SMA txiv neej rau GBO txiv neej |
|
Ntshiab ... 0}} sma / gpo-kk |
|
|
DC -18 ghz |
1.20 |
Sma poj niam rau gboard poj niam |
|
Ntshiab no1- sma / gpo-jk |
|
|
DC -18 ghz |
1.20 |
Sma txiv neej rau GPO poj niam |
|
S 1- sma / gpo-kj |
|
|
DC -18 ghz |
1.20 |
Sma poj niam rau gpo txiv neej |
|

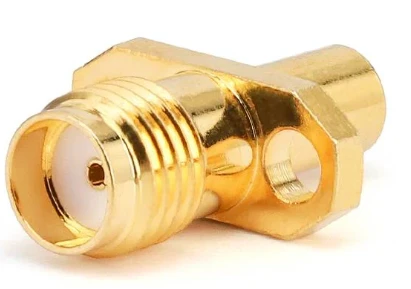

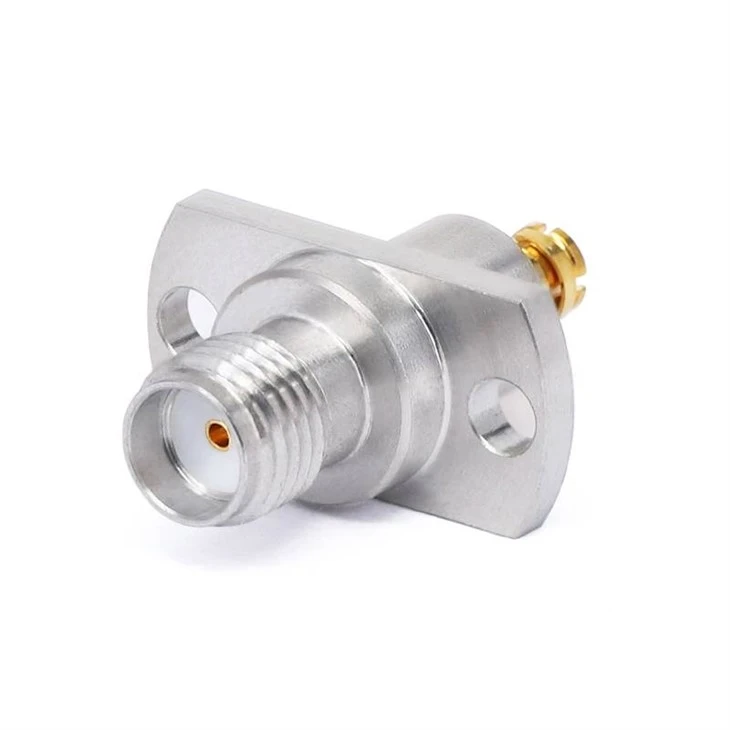

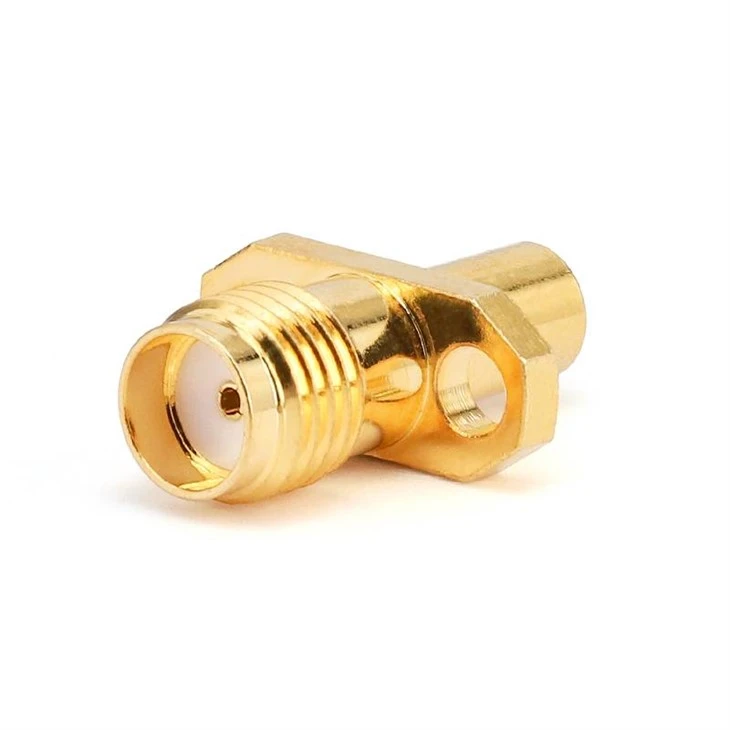

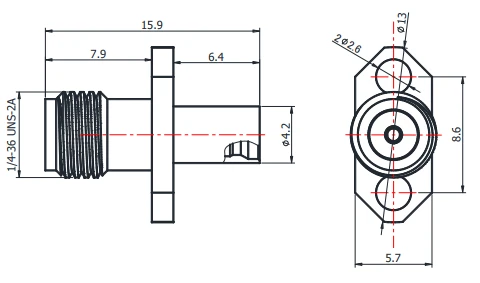

Ntshiab -1- sma / gpo-kfj-f |
|
|
DC -18 ghz |
1.20 |
Sma poj niam rau gpo (SMP) txiv neej adapter nrog 2 qhov flange |
|

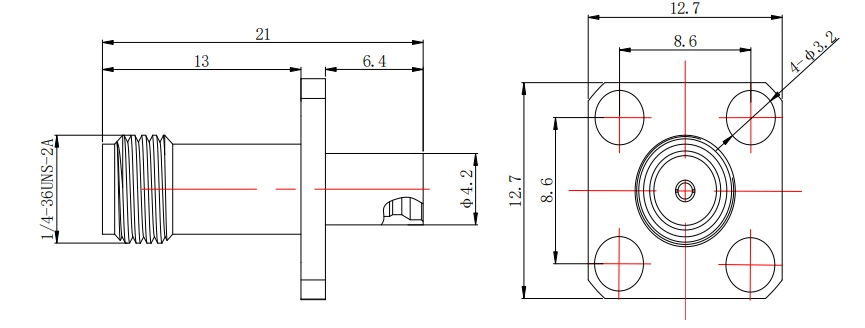

NTSIA1- sma / gpo-kfj1 |
|
|
DC -18 ghz |
1.20 |

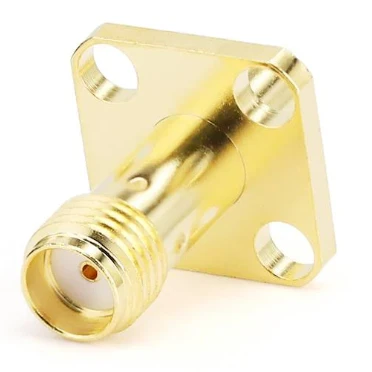

Sma poj niam to gpo (SMP) txiv neej adapter nrog 4 lub qhov flange |
