Cov DC Block

Cov tub ntxhais tseem ceeb ntawm DC thaiv yog txhawm rau tiv thaiv cov cim hluav taws xob tam sim no (AC) Cov cim qhia txog kev tsis txaus siab tam sim no, nws tiv thaiv RF sib txawv los ntawm kev puas tsuaj los ntawm ncaj qha tam sim no thiab zam qhov kev cuam tshuam ntawm DC kev tsis ncaj ncees nrog cov kis ntawm RF cim.

Rau qee qhov kev thov cov xwm txheej uas yuav tsum sib txuas rau coaxial cable, kom muaj kev sib cuam tshuam hauv lub rf ntawm cov ntawv sib txuas thiab kev tawm tsam rf zoo tshaj plaws muaj lub hauv paus ntawm tus neeg saib xyuas thiab tus thawj coj sab nraud rau txuas rau txheej txheej sab nraud ntawm lub coaxial cable {}} kev xav tau ntawm RF kev sib txuas lus xws li SMA, 2 {}} 92 hli, thiab 1 . 85mm. Tus neeg saib xyuas sab nraud yog passivated nrog stainless hlau, thiab cov khoom siv coj ua yog tooj dag plated nrog kub.

Hauv kev sib txuas lus wireless: hauv kev hloov pauv wireless, nws yog siv los cais DC thiab rf) Cov cim hluav taws xob (RF)

Khaub cij	Txuas Cov Series	Hov ntau	Vwstr	Poob ntxig

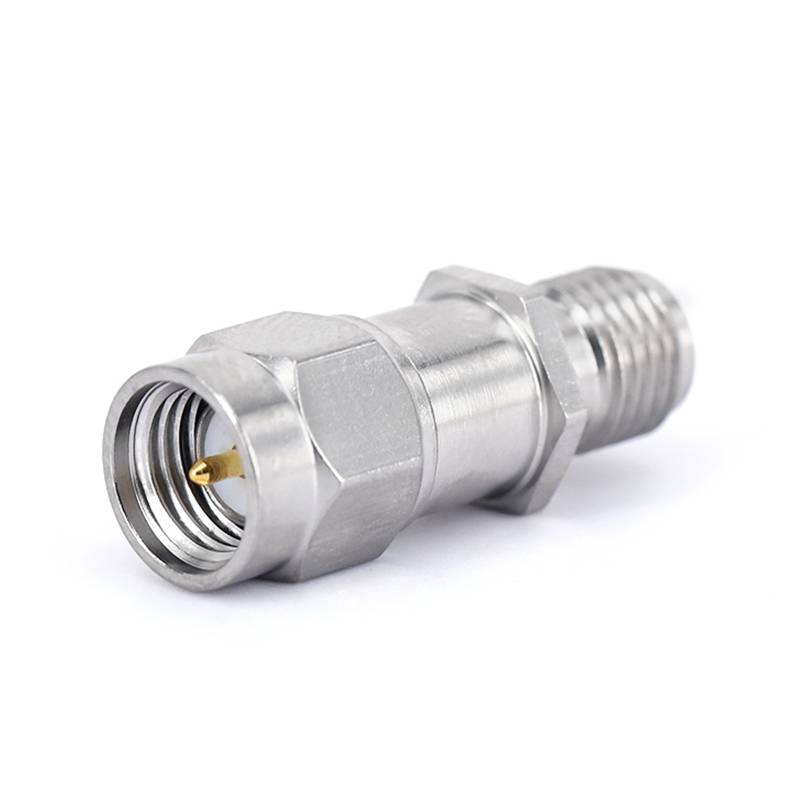

Fr 5- gdcb -18 g-smas -50	Sma poj niam	10MHz ~ 18ghz	1.35	0.7DB
Voltage, DC Max (Volts)	Lub Hwj Chim, Max Cov Lus Qhia (Watts)	Thaiv hom	Lub Cev Khoom	Lub cev plating
+50	2	Sab hauv	Stainless hlau	Passivated

Khaub cij	Txuas Cov Series	Hov ntau	Vwstr	Poob ntxig

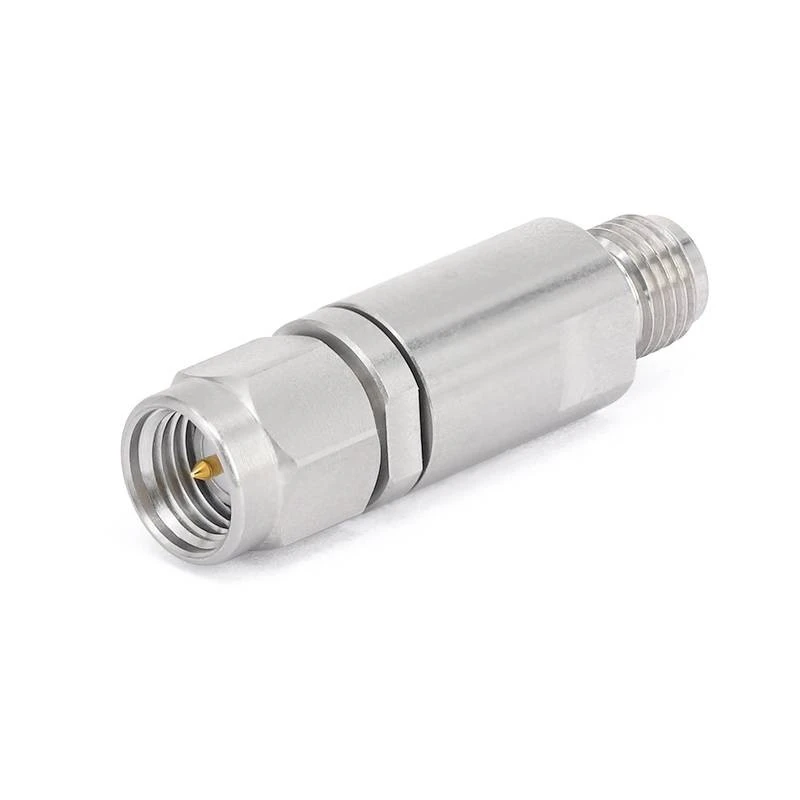

Fr 5- gdcb -27 g-sma-jk	Sma poj niam	30MHZ ~ 27GHZ	1.25	0.8db
Voltage, DC Max (Volts)	Lub Hwj Chim, Max Cov Lus Qhia (Watts)	Thaiv hom	Lub Cev Khoom	Lub cev plating
+50	2	Sab hauv	Stainless hlau	Passivated

Khaub cij	Txuas Cov Series	Hov ntau	Vwstr	Poob ntxig

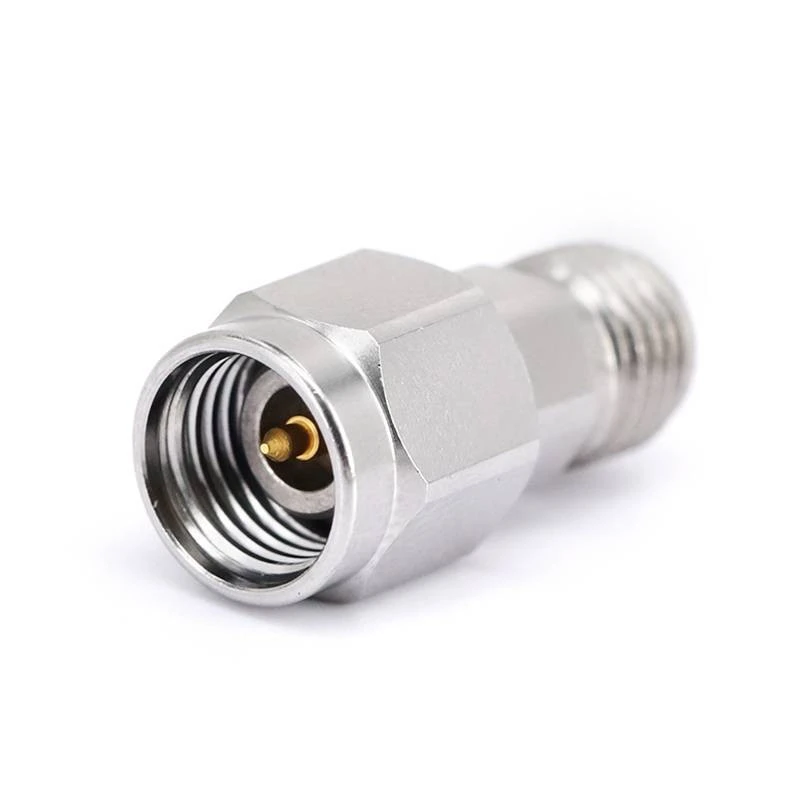

Fr 5- gdcb -40 g -292 e	2.92mm Poj Niam	10MHz ~ 40ghz	1.30	0.5db
Voltage, DC Max (Volts)	Lub Hwj Chim, Max Cov Lus Qhia (Watts)	Thaiv hom	Lub Cev Khoom	Lub cev plating
+60	2	Sab hauv	Stainless hlau	Passivated

Khaub cij	Txuas Cov Series	Hov ntau	Vwstr	Poob ntxig

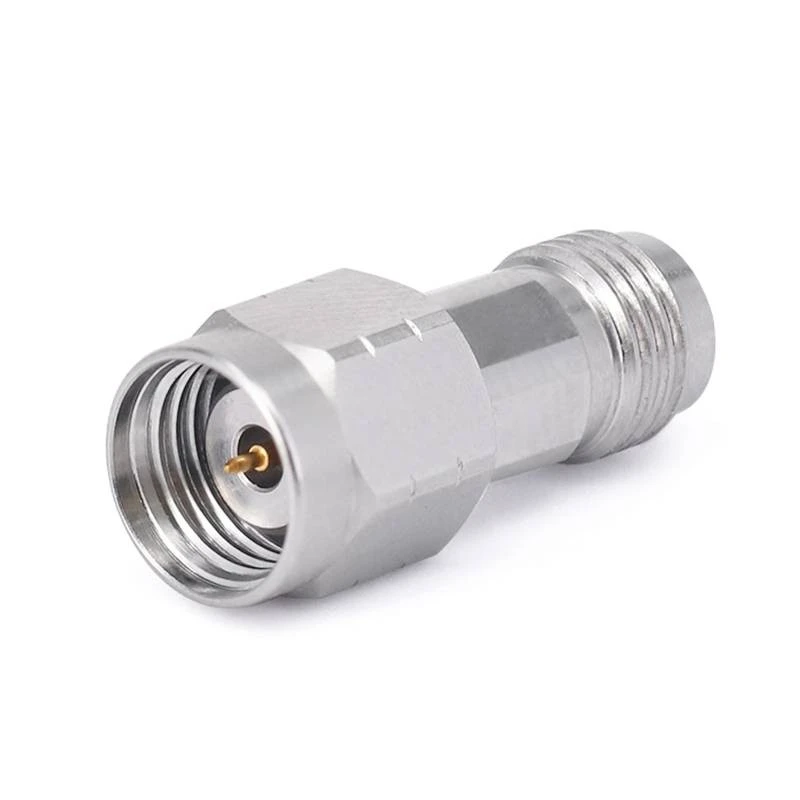

Fr 5- gdcb -67 g -185 e	1.85mm Poj Niam	10MHz ~ 67Z	1.50	0.9db
Voltage, DC Max (Volts)	Lub Hwj Chim, Max Cov Lus Qhia (Watts)	Thaiv hom	Lub Cev Khoom	Lub cev plating
+60	2	Sab hauv	Stainless hlau	Passivated
